3. INSPECTION AND ADJUSTMENT

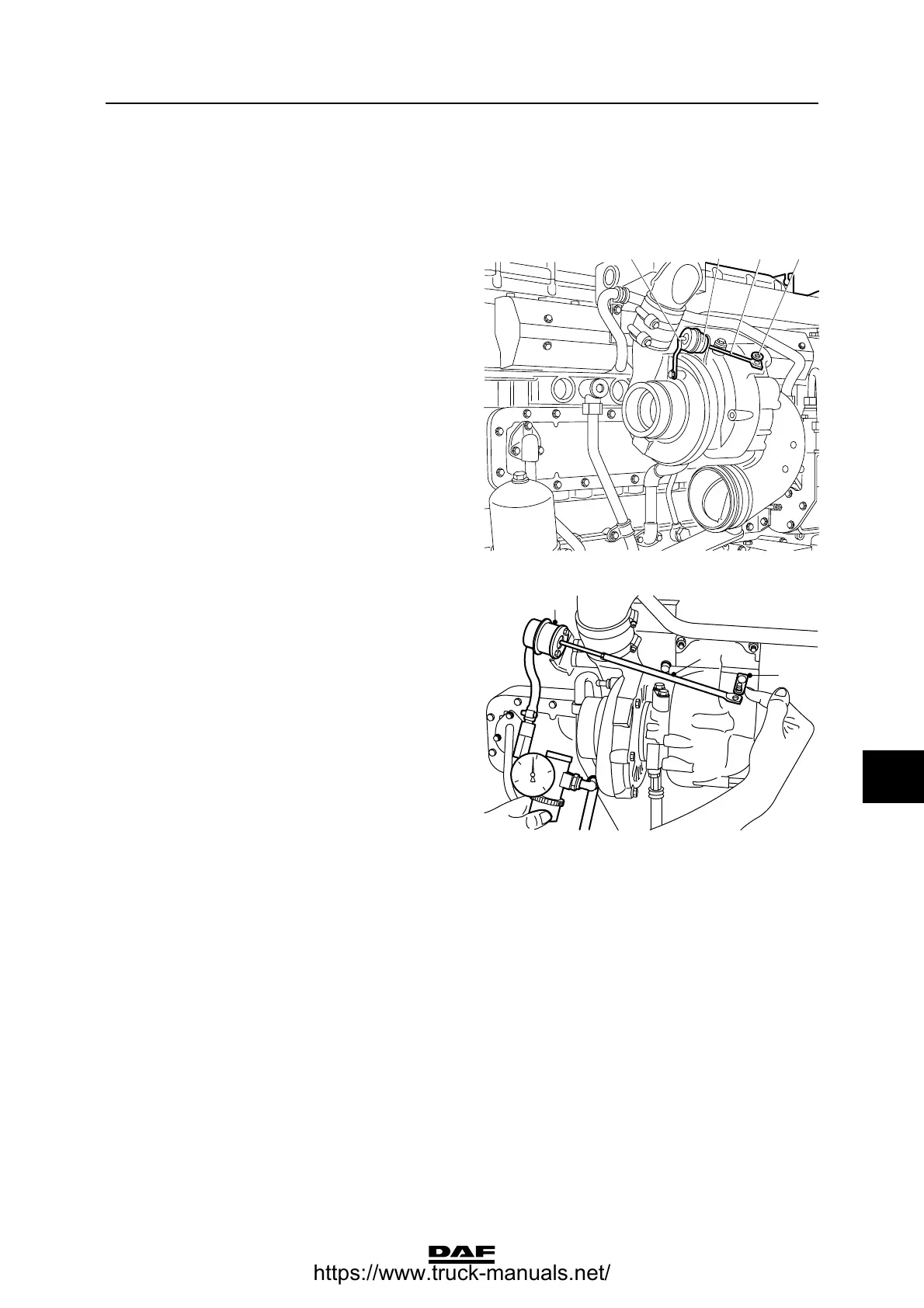

3.1 INSPECTING AND ADJUSTING TURBOCHARGER WASTEGATE
1. Remove the heat shield from the
turbocharger.
2. Remove the air supply connector (1) from
the diaphragm housing (2).
3. Remove the retaining clip (3) and remove the
control rod (4) from the wastegate lever.
4. Using a reducer valve, apply the specified
adjusting pressure to the connection with the
diaphragm housing (see "Technical data").
5. Push the wastegate lever (5) fully to the left
to close the wastegate valve.
6. Adjust the length of the control rod (4),
making sure it fits exactly onto the lever at
the set pressure.
7. Inspect the adjustment of the wastegate
using the specified pressure. See "Technical
data".
8. Fit the retaining clip (3).
I400532
3
1
42
i 400214
4
3
2
1
0
5
4
2
