DAF LF45 Series - 3. INSPECTION AND ADJUSTMENT

1
LF45/55 series Inspection and adjustment
EXTERNAL CAB COMPONENTS
3-1
3. INSPECTION AND ADJUSTMENT
3.1 INSPECTION AND ADJUSTMENT, HEADLIGHTS
Note:
Use adjustment equipment to check and adjust
the headlights.
Adjustment, headlamps
1. When adjusting the headlights, check that:
- the vehicle is unladen and the tyres are
inflated to the specified pressure.
- the vehicle is standing on a flat and
level surface.
- inside the cab the height adjustment of
the headlights is in ”0”-position.

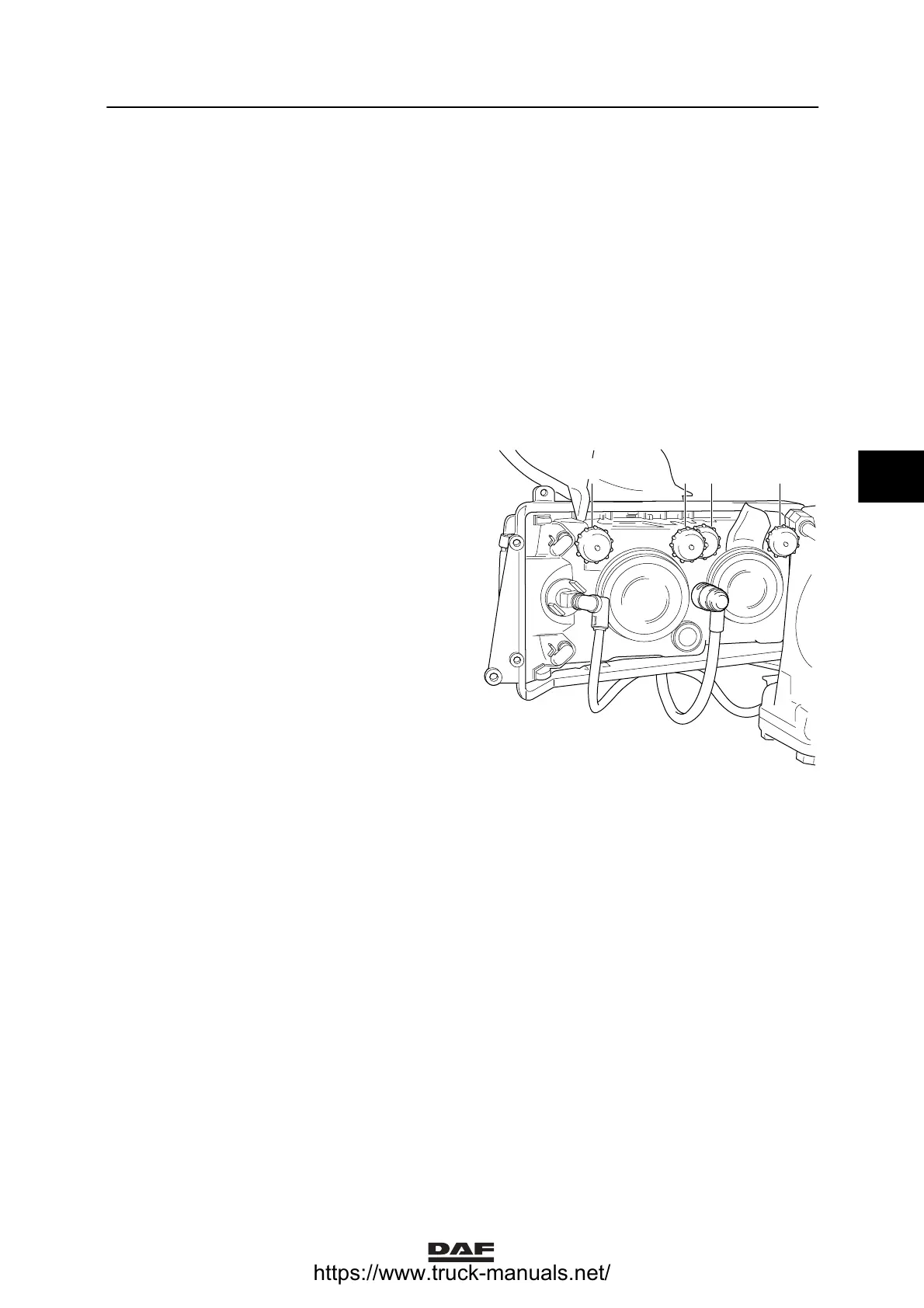

2. The headlight can be adjusted by four
knurled knobs at the rear of the headlight
housing; main beam and dipped beam can
be adjusted separately:
- To adjust the dipped beam horizontally,
turn knob 1.
- To adjust the dipped beam vertically,
turn knob 2.
- To adjust main beam horizontally, turn
knob 3.
- To adjust the main beam vertically, turn
knob 4.
1
23 4
K1 01 156
4
ǹ 0210
