INTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-26

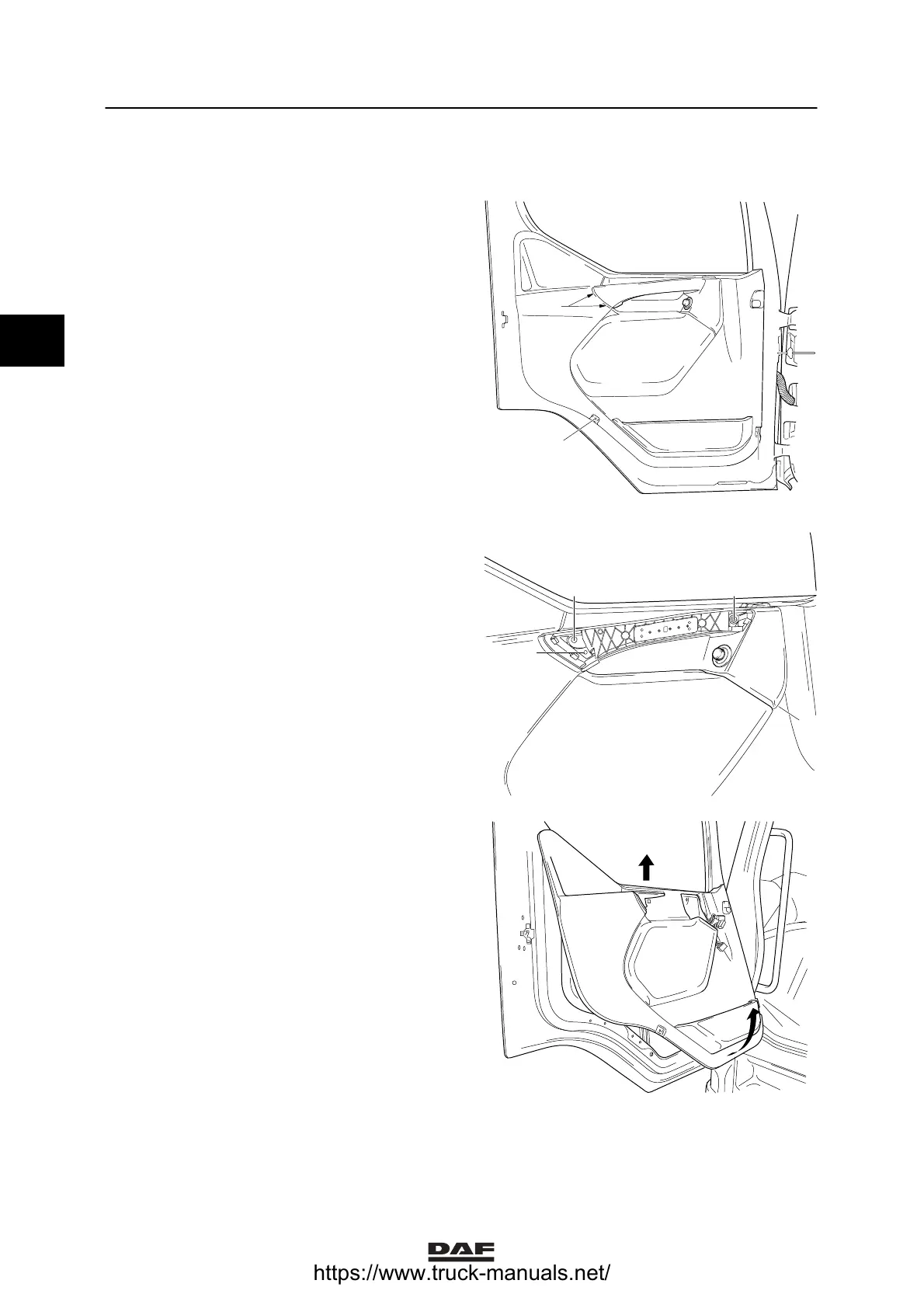

4.7 REMOVAL AND INSTALLATION, DOOR PANEL
Removing the door panel
1. Loosen the cap from the grip by pushing a
screwdriver into the recesses (1).
2. Remove the cap from the grip.
3. Remove the caps (2) at the bottom of the
door.
4. Remove the attachment bolts from the door.
2
2
1
K1 01 407
5. Remove the attachment bolts (1) from the
grip.
6. Disconnect the electric window and mirror
connectors at the inside of the grip.
7. Push the grip down as far as it will go.
8. Push the control cable clip (2) out of the
grip.
9. Remove the control cable from the door
knob. Put the grip aside.
1
2
1
1
K1 01 409
10. Pull the door panel out of the mounting clips
in the door, starting at the bottom.
11. Lift the door panel out of the window frame.
K1 01 408
2
ǹ 0210
