2. INSPECTION AND ADJUSTMENT
2.1 ADJUSTING ROOF SPOILER
Note:
Correct adjustment of the roof spoiler is
essential to minimise fuel consumption.

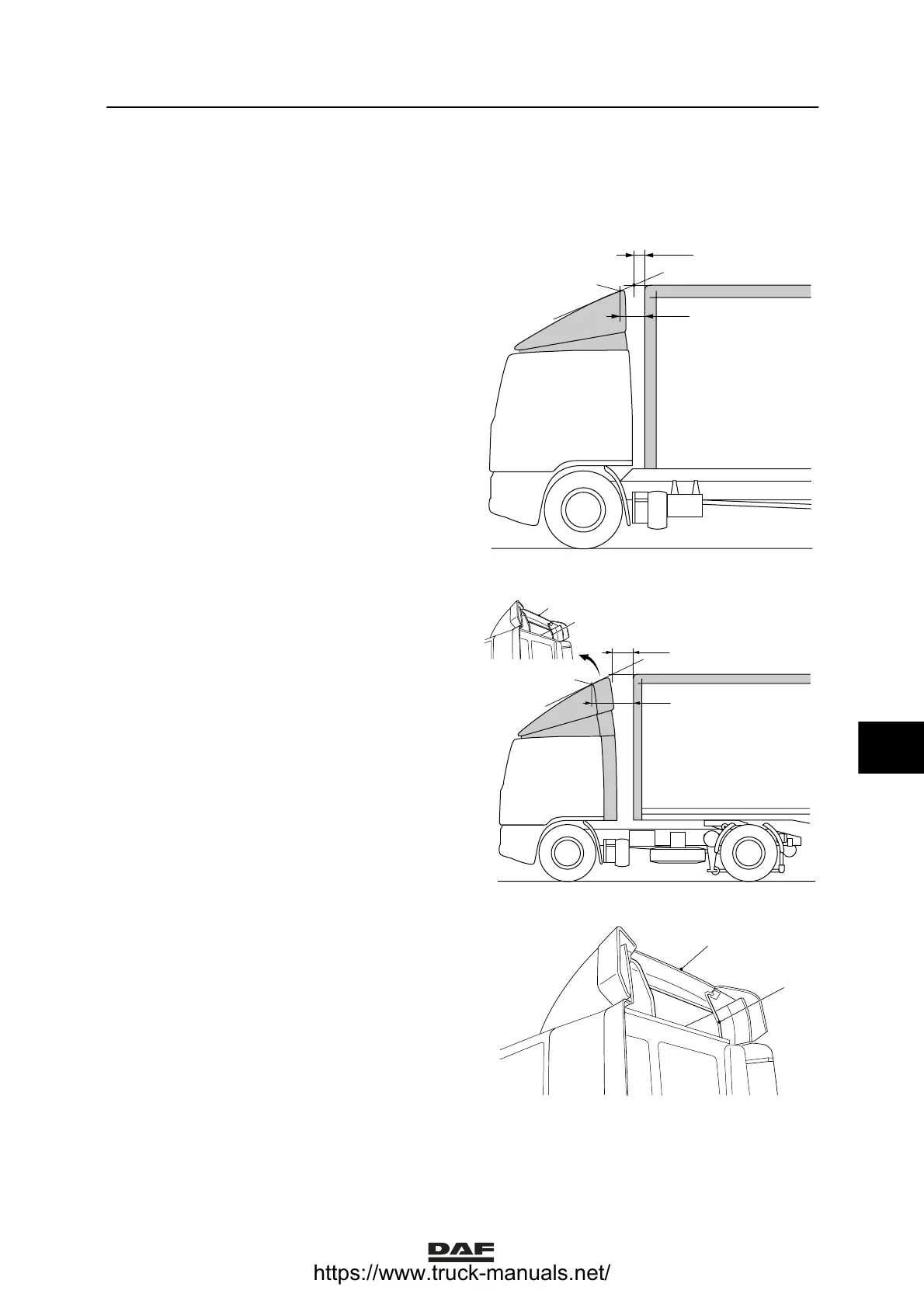

1. Place the vehicle on a level and horizontal
surface. Make sure that in the case of a
tractor/semi-trailer combination the tractor
is straight in front of the semi-trailer.
2. Determine the centreline of the vehicle and
put a slat on the superstructure roof
protruding into the cab direction.
3. Put another slat (as a tangent) onto the
outer roof spoiler edge (P) pointing into the
direction of the superstructure.
4. Both slats should cross at half the distance
(
1
/
2
X) between the roof spoiler edge and
the start of the superstructure.
The roof spoiler height can be adjusted
using adjusting mechanism (B). For the roof
spoiler adjusting range, see main group
”Technical data”.
X
1
/
2
X
P
K1 01 357
P
X
1
/
2
X
P
B
K1 01 356
P
B
K1 01 355
