CAB HEATING
Removal and installation LF45/55 series
3-8
3.3 REMOVAL AND INSTALLATION, HEATER CONTROL PANEL
Removing the heater control panel
1. Remove instrument panel cover panel.
2. Remove the control panel from the radio
panel by pushing the right and left clips out.

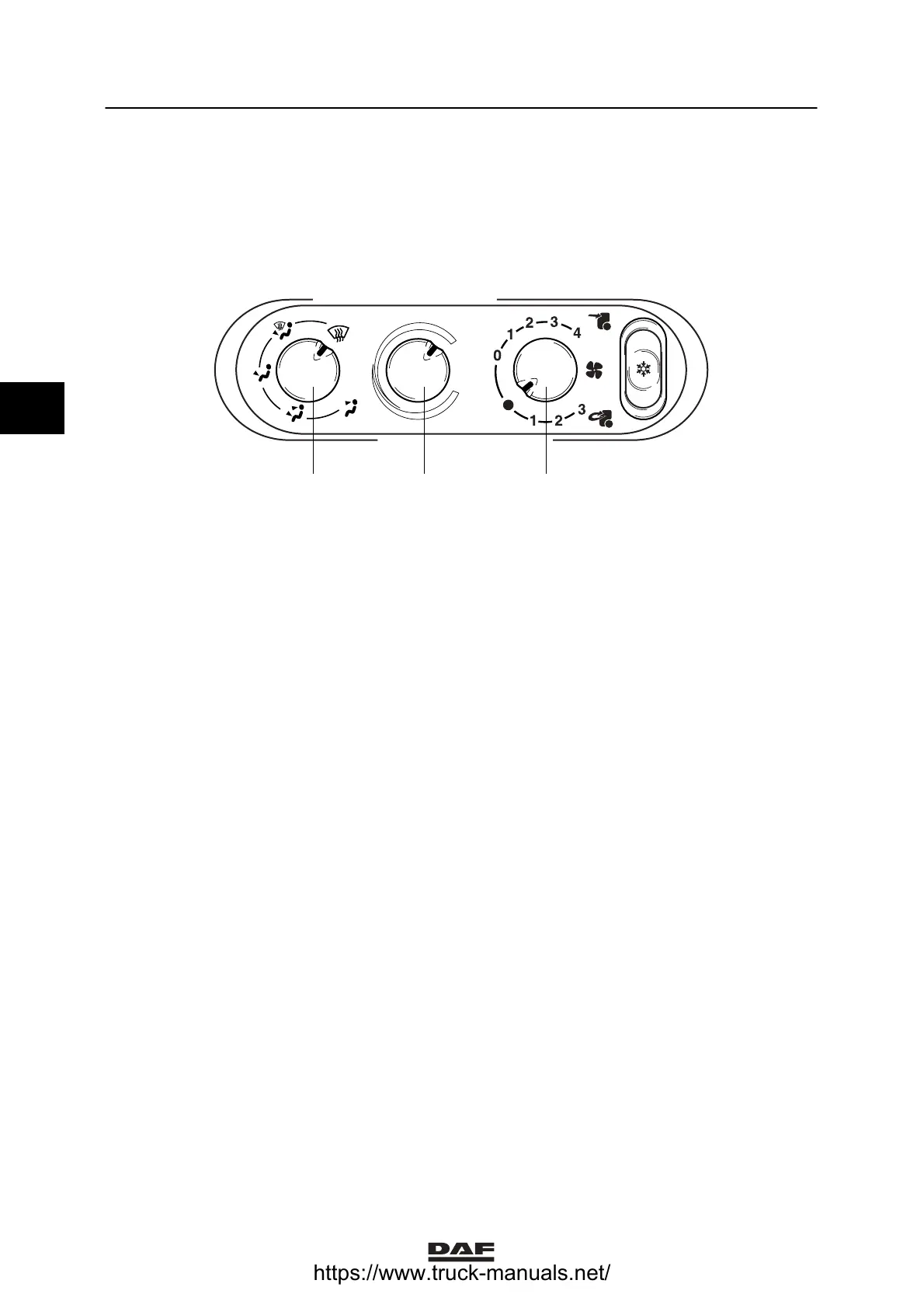

K1 01 211
12 3
3. Put the selection knob (1) in the windscreen
demister position. Mark the position of the
cable. Remove the clip and take the cable
out of the control panel.
4. Set the temperature selection knob (2) to
the hottest position. Mark the position of the
cable. Remove the clip and take the cable
out of the control panel.
5. Set the heater motor selection knob (3) to
the ”stop”-position. Mark the position of the
cable. Remove the clip and take the cable
out of the control panel.
6. If applicable, remove the connector from the
air conditioning button.
7. Remove the control panel.
3
ǹ 0210
