LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-29
4.9 REMOVAL AND INSTALLATION, ELECTRICALLY OPERATED WINDOW
MECHANISM
Removing the electrically operated window
mechanism
1. Remove the door panel.
2. Remove the door screen.

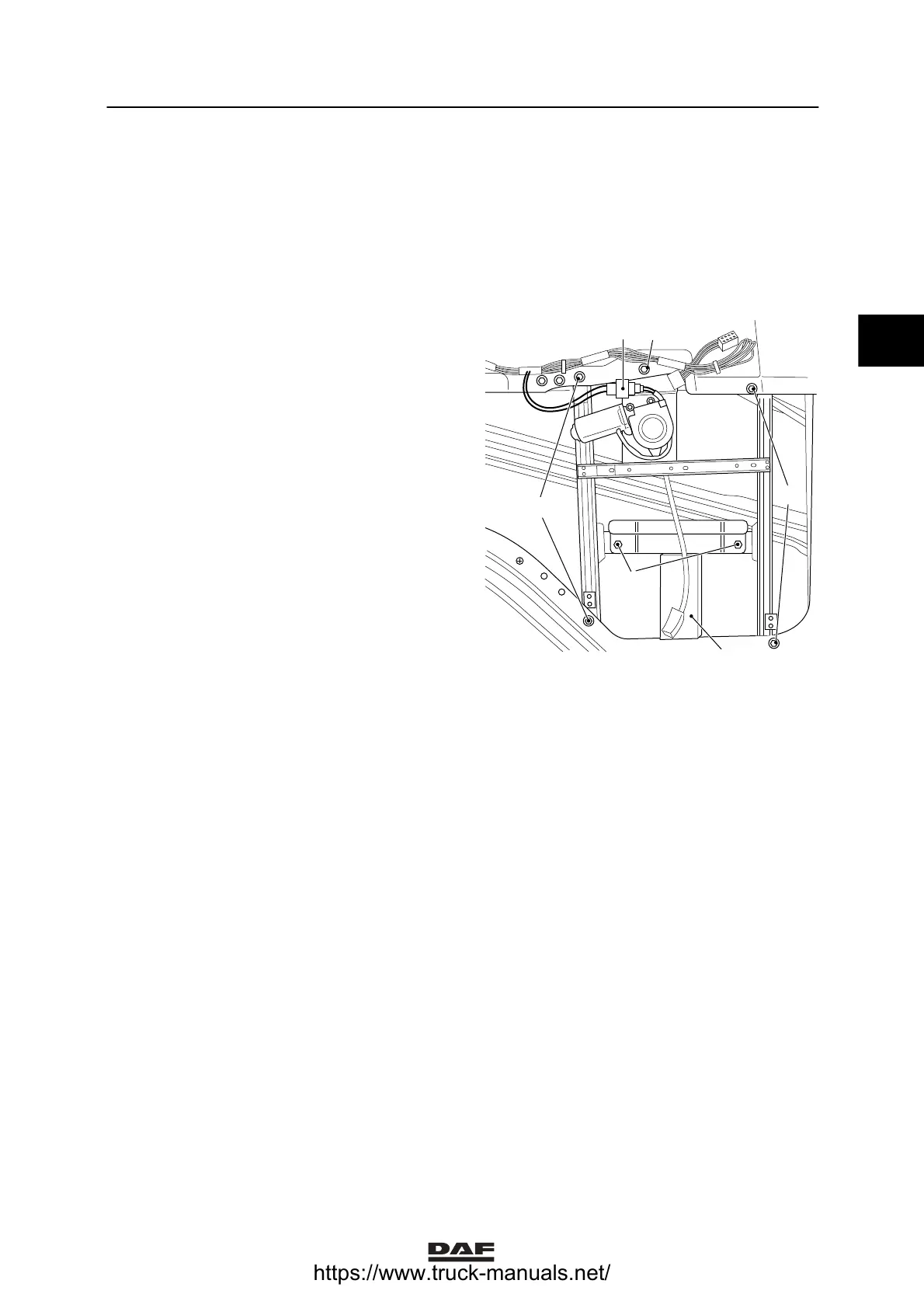

3. Lower the window, remove the attachment
bolts (2) and slide the window up. Support
the window with a block (1).
4. Disconnect the connector (4) from the
electric motor.
5. Remove the attachment bolts (2) and nuts
(3) and remove the window mechanism
from the door through the opening.
Installing the electrically operated window
mechanism
1. Fit the window mechanism in the door and
fit the attachment bolts (2) and attachment
nuts (3).
2. Connect the electric motor connector (4).
3. Lower the window and attach the window
mechanism to the door using the
attachment bolts (2).
4. Operate the window switch.
Close the window until nearly shut.
Check that the top edge of the window is
parallel with the window frame.
Loosen the attachment bolts (2), if
necessary.
Move the window to the correct position and
re-tighten the attachment bolts.
5. Fit the door screen.
6. Install the door panel.
