INTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-28
4.8 REMOVAL AND INSTALLATION, MANUALLY OPERATED WINDOW
MECHANISM
Removing the manually operated window
mechanism
1. Remove the door panel.
2. Remove the door screen.

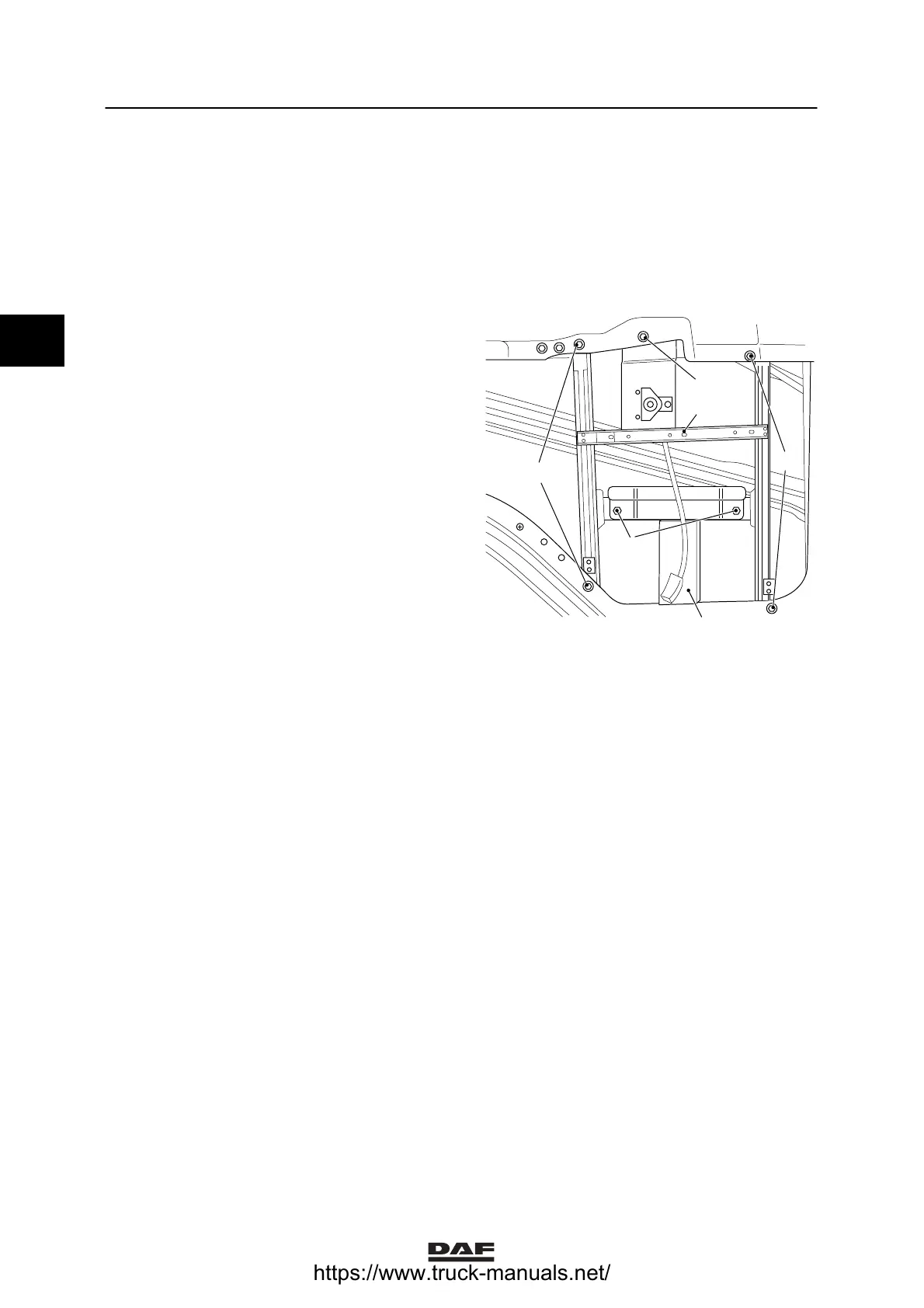

3. Support the door window using a block (1)
and remove the attachment bolts (4).
Remove the window on the underside so
that it is no longer locked in position.
4. Remove the attachment bolts (3) and the
attachment nut (2) from the window
mechanism.
5. Tilt the window mechanism (5) and remove
it through the bottom of the door.
Installing manually operated window
mechanism
1. Fit the window mechanism (5) through the
bottom of the door.
2. Remove the block (1) and hook up the door
window in the window mechanism. Secure
the door window with the attachment
bolts (4).
3. Secure the window mechanism with the
attachment bolts (3) and nut.
4. Close the door window until nearly shut.
Check that the top edge of the window is
parallel with the window frame.
Loosen the attachment bolts (4), if
necessary.
Move the window to the correct position and
re-tighten the attachment bolts.
5. Fit the door screen.
6. Install the door panel.
3
4
1
2
5
3
K1 00 977
2
ǹ 0210
