CAB SUSPENSION
Removal and installation LF45/55 series
4-6
4.4 REMOVAL AND INSTALLATION, SILENT BLOCKS OF FRONT SPRING
SUSPENSION CAB SUPPORT
Note:

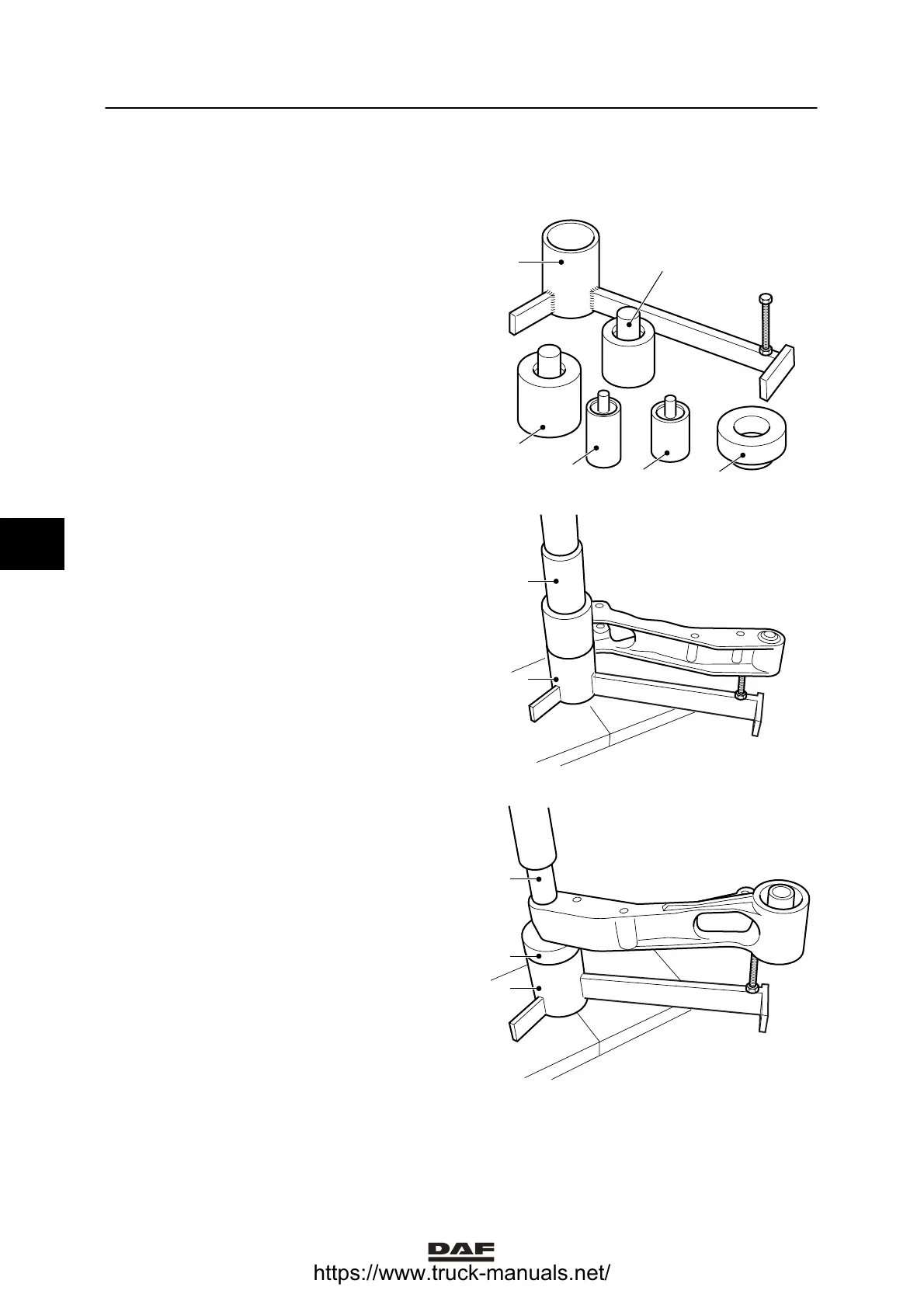

To remove and install the silent blocks, use
special tool (DAF no. 1329471).
K1 01 539
4
2
5
6
3
1
Removing the front silent block
1. Place the housing of the cab support on the
base (1) of the special tool
(DAF no. 1329471).
2. Force the front silent block (1) out of the
housing using the press-out tool (2) of the
special tool (DAF no. 1329471).
K1 01 538
2
1
Removing the rear silent block
1. Place the back-up washer (3) of the special
tool (DAF no. 1329471) on the base (1).
2. Place the housing of the cab support on the
base (1) with the back-up washer (3).
3. Force the rear silent block out of the
housing using the press-out tool (5) of the
special tool (DAF no. 1329471).
K1 01 535
5
3
1
5
