EXTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-22
4.16 REMOVAL AND INSTALLATION, EXTERIOR MIRRORS COMPLETE WITH
ARMS

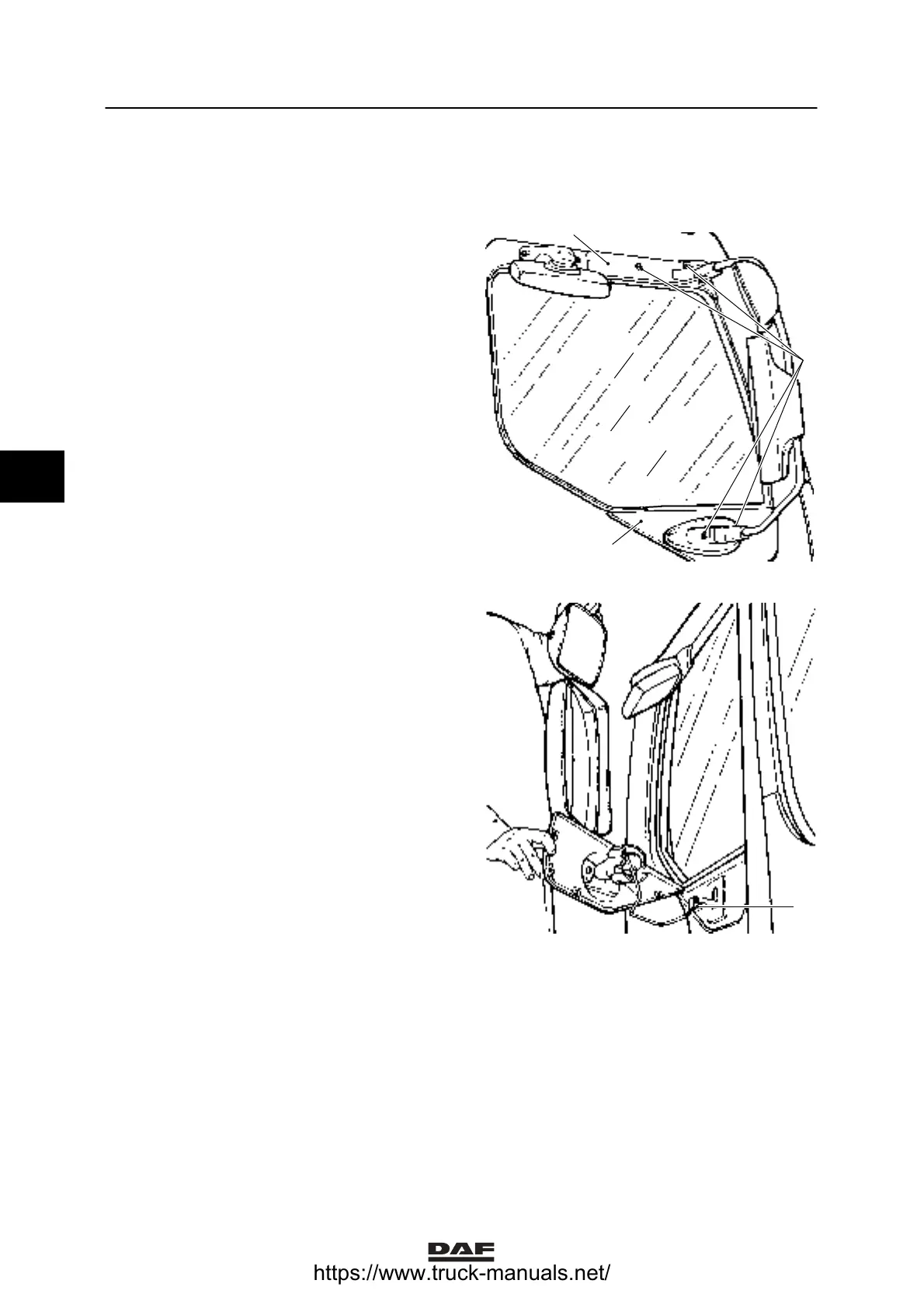

Removing the exterior mirror assembly
1. Remove the attachment bolts (1) and
remove the exterior mirror assembly with
the covers (2).
K1 01 168
2
1
2
2. Remove the connector (1).
3. Remove the exterior mirror assembly with
the covers.
Installing the exterior mirror assembly
1. Fit the connector (1).
2. Fit the exterior mirror assembly with arm
and the covers.
3. Secure the mirror with the attachment bolts.
Ensure that the rubber O-rings are fitted
between the cover and the door.
K1 01 172
1
4
ǹ 0210
