LF45/55 series Removal and installation
EXTERNAL CAB COMPONENTS
4-21
Installing exterior mirror glass
1. Place the exterior mirror glass holder (8) in
a hot water bath of approx. 80_C. Allow the
mirror glass holder (8) to heat for fifteen
minutes.
2. Wear isolating gloves to prevent burns.
Take the exterior mirror glass holder (8) out
of the hot water bath. Insert the wires of the
electrical exterior mirror heating (9) through
the grommet in the exterior mirror glass
holder (8).
3. Place one side of the mirror glass (10) in
the groove of the mirror glass holder (8).
Press the edges of the mirror glass holder
(8) carefully over the mirror glass (10).
4. Allow the mirror glass holder (8) to cool
down.
5. If applicable, fit the electrical exterior mirror
adjustment (7) to the mirror glass holder (8),
using the attachment bolts (6). Note the
fitting position.
6. Fit the exterior mirror glass holder (8) in the
mirror housing (5) using the attachment
bolts (4). Note the fitting position and the
electrical connectors.
7. Fit the mirror housing (5) to the mirror arm,
using the attachment bolts (2) and the
clamping brackets (3).
8. If applicable, connect the electrical
connectors of the electrical mirror
adjustment (7) and the mirror heating (9).
9. Fit the cover (1) to the exterior mirror
housing (5).

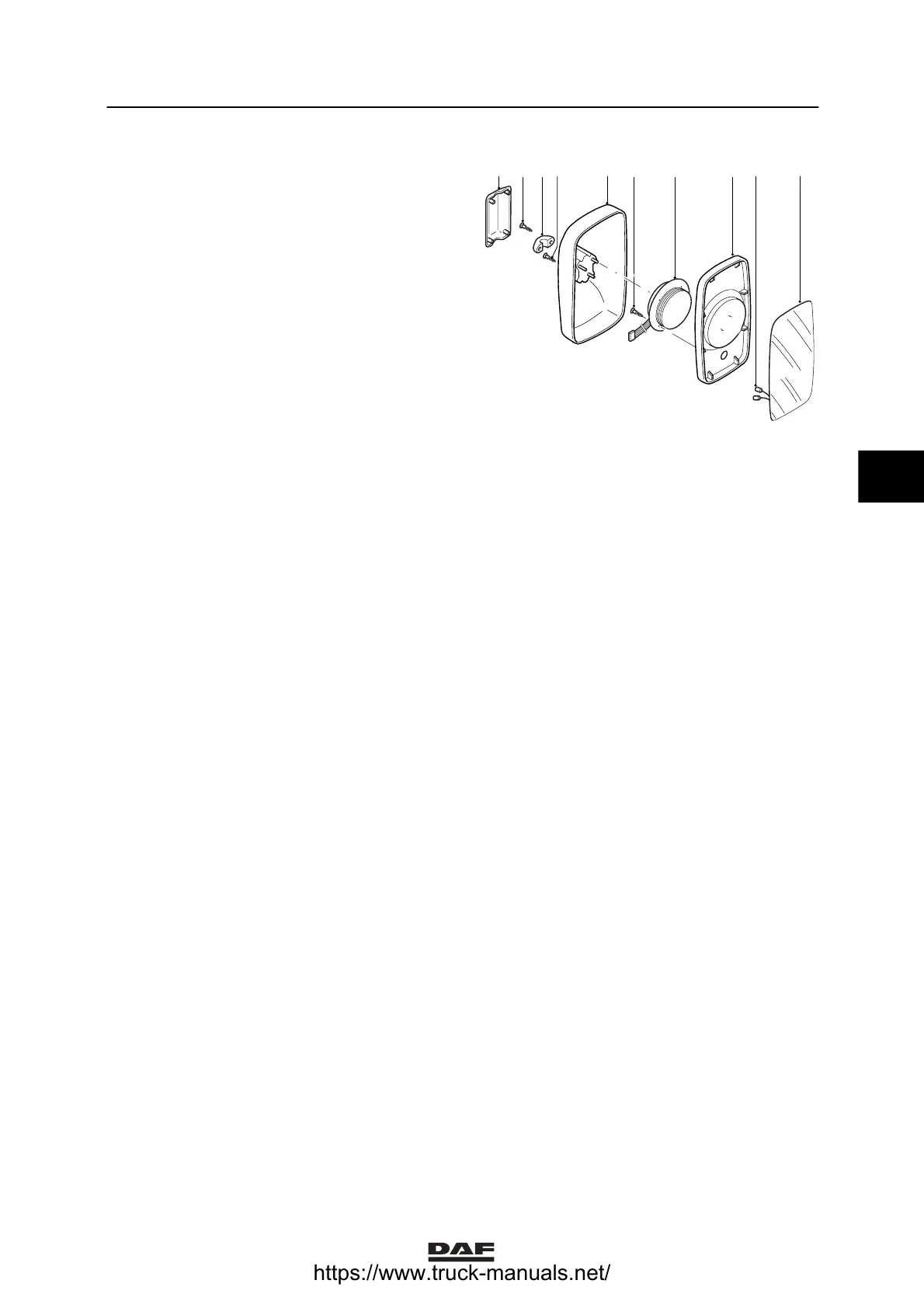

4321 5 6 7 8 9 10
K1 01 258
4
ǹ 0210
