LF45/55 series General
CAB HEATING
2-1
2. GENERAL
2.1 SYSTEM DESCRIPTION OF HEATER, HEATER CONTROL
The heater is installed in the central console as
a complete unit.
The unit contains all control valves, control
handles and switches needed for ventilation and
heating.
There are two models:
- heating/ventilation system
- heating/ventilation system combined with
air conditioning.

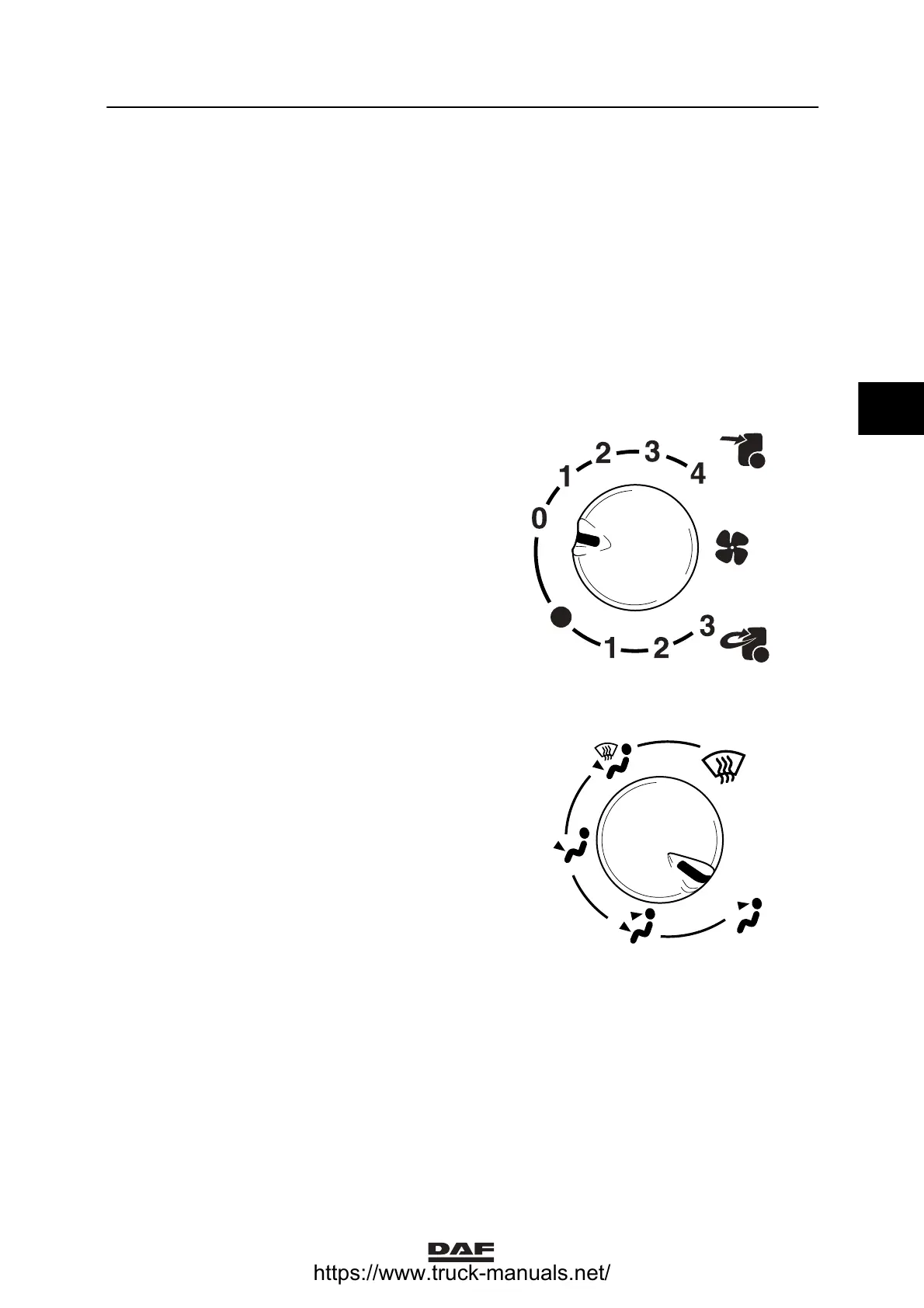

The control panel has three rotary knobs.
Knob 1
Five-position switch to control fan speed.
Three-position switch to control fan speed with
recirculation.
K1 01 197
Knob 2
Air outlets in the cab.
0 = 0-position
A = windscreen (defroster)
B = windscreen and leg area
C=legarea
D = leg area and dashboard
E = dashboard
K1 01 195
AB
C
D
E
ǹ 0210
3
