EXTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-20
4.15 REMOVAL AND INSTALLATION, EXTERIOR MIRROR GLASS
Removing mirror glass
1. Push in the cover (1) of the mirror housing
(5) at the notches. Remove the cover (1)
from the exterior mirror housing (5).
2. Disconnect the electrical exterior mirror
adjustment connector (7), if applicable.
3. Disconnect the exterior mirror heating
connector (9).
4. Remove the attachment bolts (2) from the
clamping brackets (3). Mark the position.
Remove the outside mirror housing (5).
5. Remove the attachment bolts (4) from the
mirror glass holder (8). Push the mirror
glass holder (8) out of the mirror housing
(5).
6. If fitted, remove the attachment screws (6)
from the electrical exterior mirror adjustment
(7). Mark the position of the electrical mirror
adjustment (7). Remove the electrical mirror
adjustment (7) from the mirror glass
holder (8).
7. Place the exterior mirror glass holder (8) in
a hot water bath of approx. 80_C. Allow the
mirror glass holder (8) and mirror (10) to
heat for fifteen minutes.
8. Wear isolating gloves to prevent burns.
Take the exterior mirror glass holder (8) out
of the hot water bath. Carefully press one
side of the mirror (10) out of the mirror glass
holder (8).
9. Carefully remove the exterior mirror (10)
from the mirror glass holder (8).

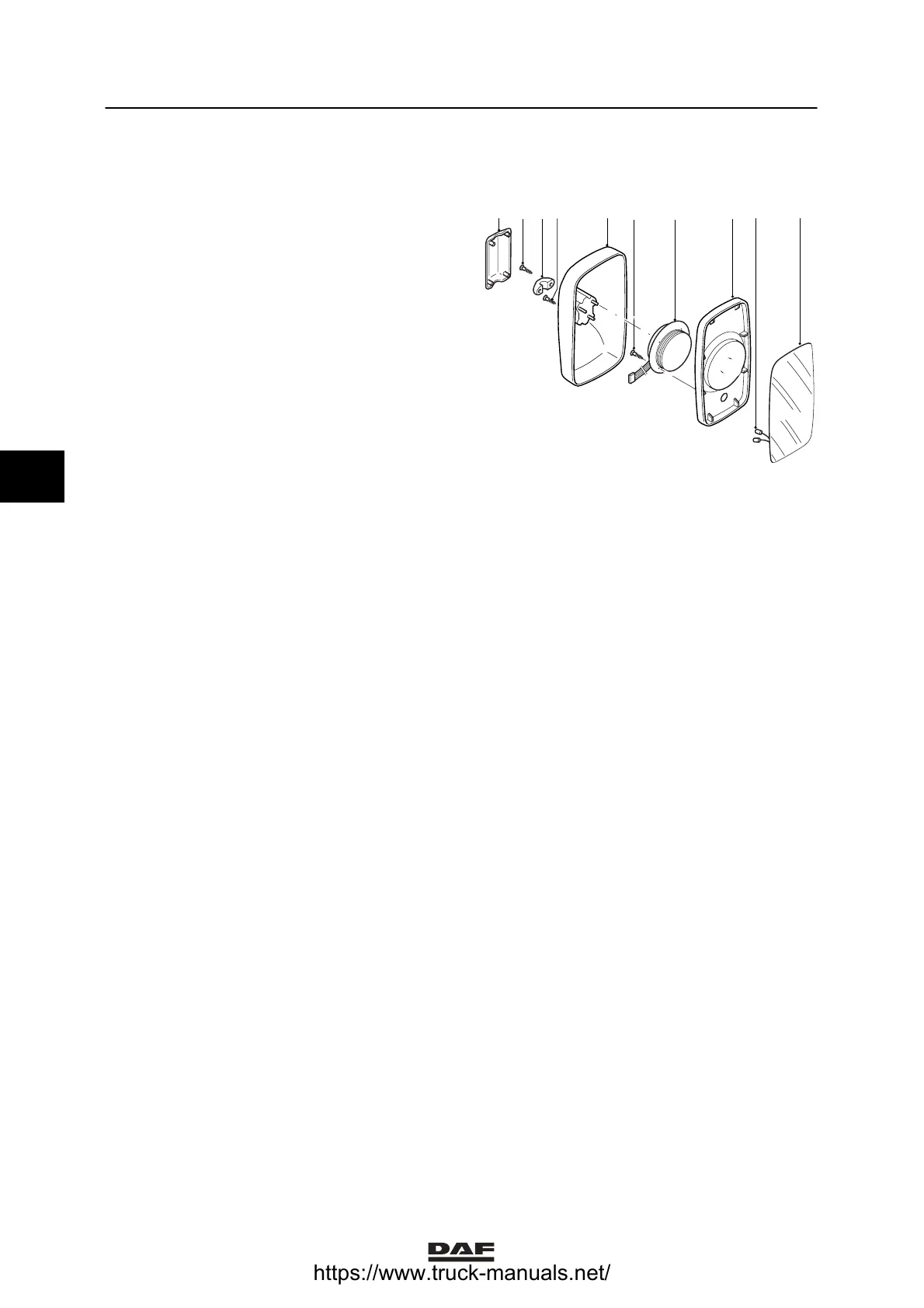

4321 5 6 7 8 9 10
K1 01 258
