LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-27
Installing the door panel
1. Fit the door panel into the upper part of the
window frame.
2. Press the door panel all around into the
door using the mounting clips.
3. Secure the lower part of the door panel
using the attachment bolts and fit the caps.
4. Position the grip on the door panel.
5. Fit the nipple of the control cable in the door
catch of the grip (A). Fit the coupler into the
grip (B).
6. Secure the control cable coupler into the
grip (C) using the mounting clip.

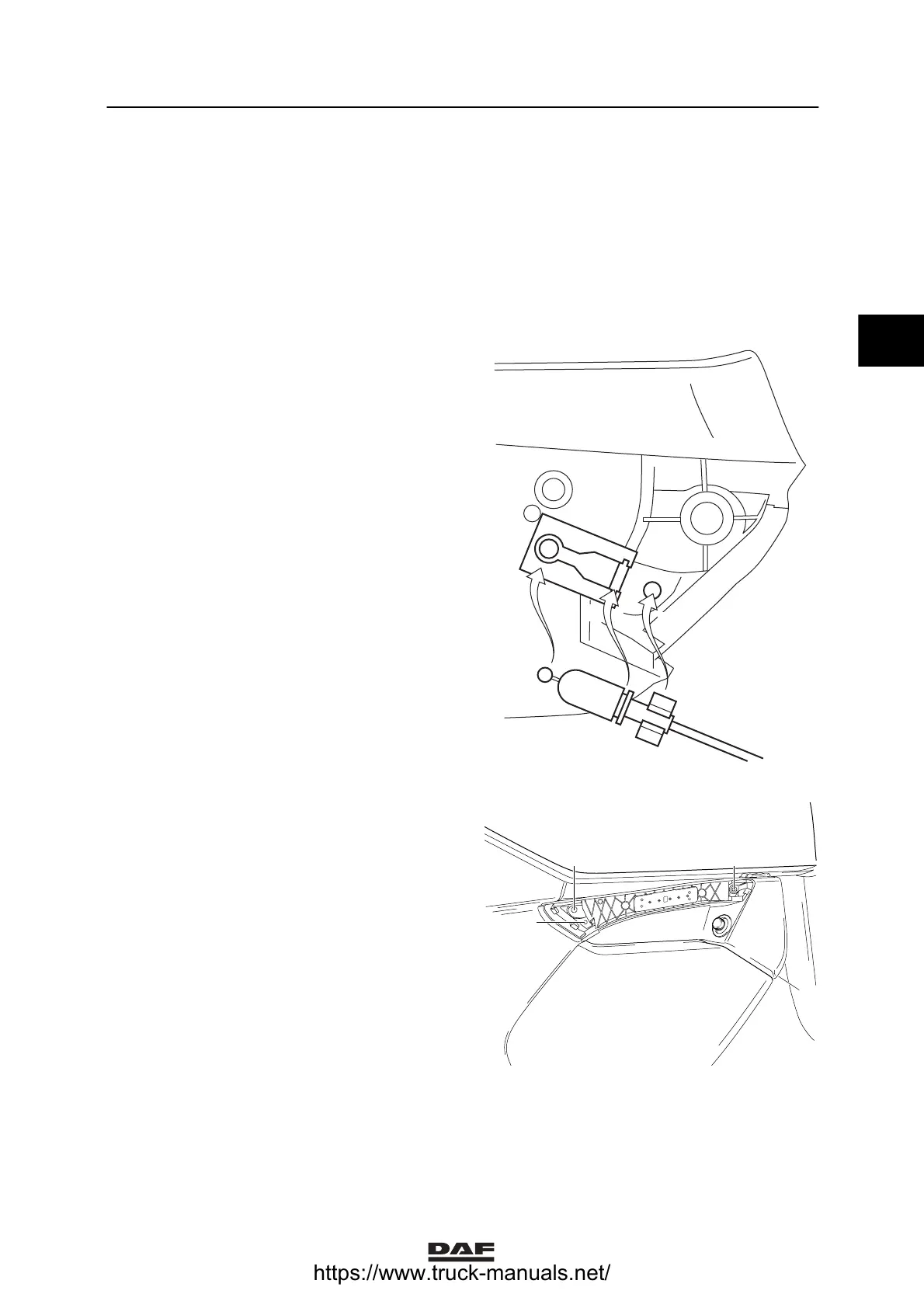

A
B
C
K1 01 441
7. Fit the automatic mirror and window
connectors into the grip.
8. Fix the grip to the door using the attachment
bolts (1).
9. Fit the grip cap.
1
2
1
1
K1 01 409
2
ǹ 0210
