DAF LF45 Series - 4. REMOVAL AND INSTALLATION

1
LF45/55 series Removal and installation
CAB TILTING GEAR
4-1
4. REMOVAL AND INSTALLATION

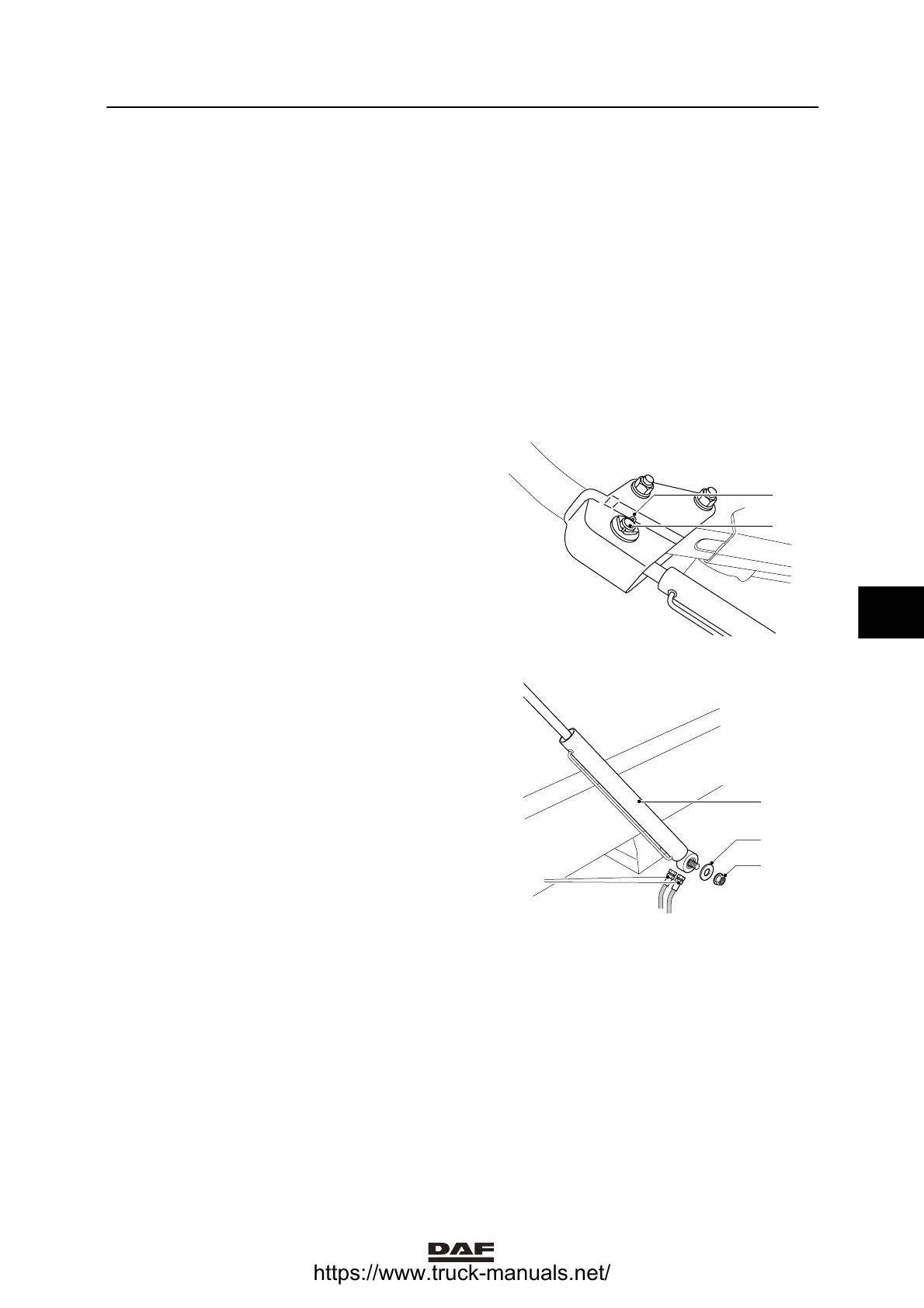

4.1 REMOVAL AND INSTALL ATION, LIFTING CYLINDER
Removing lifting cylinder
Notes:
Do not remove the lifting cylinder while the cab
is in the tilted position.
Mark the piping before removing it.
1. Remove all dirt and grease in the cylinder.
2. Place an appropriate receptacle under the
pump, loosen the hydraulic pipes (6) and
plug the ends to prevent dirt getting in.
3. Remove the split pin (1) from the cab
support pin. Remove the pin (2).
K1 01 220
1
2
4. Remove the nut and washer (4 and 5).
5. Remove the lifting cylinder (3).
Installing lifting cylinder
1. Fit the lifting cylinder (3).
2. Fit the washer and nut (4 and 5) to the
underside.
3. Position the lifting cylinder. Fit the pin (2)
with the split pin (1) to the cab support.
4. Connect the pipes (6). Bleed the cylinder,
see ”Draining and filling”.
4
5
6
3
K1 01 101
6
ǹ 0210
