LF45/55 series Disassembly and assembly
CAB TILTING GEAR
5-1
5. DISASSEMBLY AND ASSEMBLY
5.1 DISASSEMBLY AND ASSEMBLY, CAB TILTING PUMP
21
27
1
2
11
10
9
8
18
19
7
6
13
12
14
16
17
20
15
26
5
4
24
23
22
3
25
K1 01 103

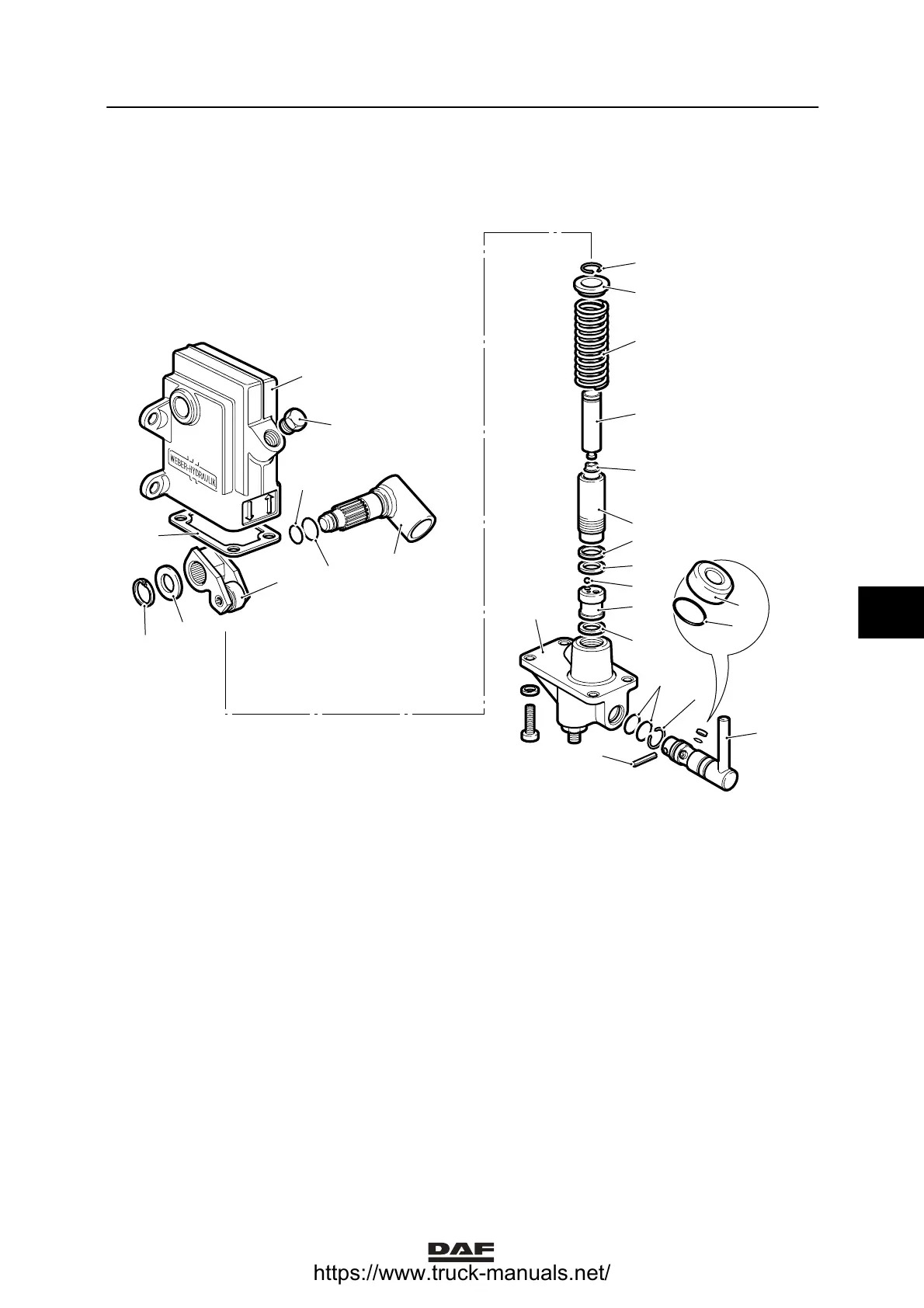

Disassembling cab tilting pump
1. Remove the pump, see ”Removal and
installation”.
2. Remove the socket head screws and take
the pump housing (24) out of the reservoir
(1). Take account of the fact that the pump
housing is spring-loaded.
3. Remove the gasket (27).
4. Take the circlip (7), plunger (10), grooved
ring (11), spring washer (8) and the spring
itself out of the plunger housing (12).
6
ǹ 0210
