LF45/55 series Removal and installation
INTERNAL CAB COMPONENTS
4-3

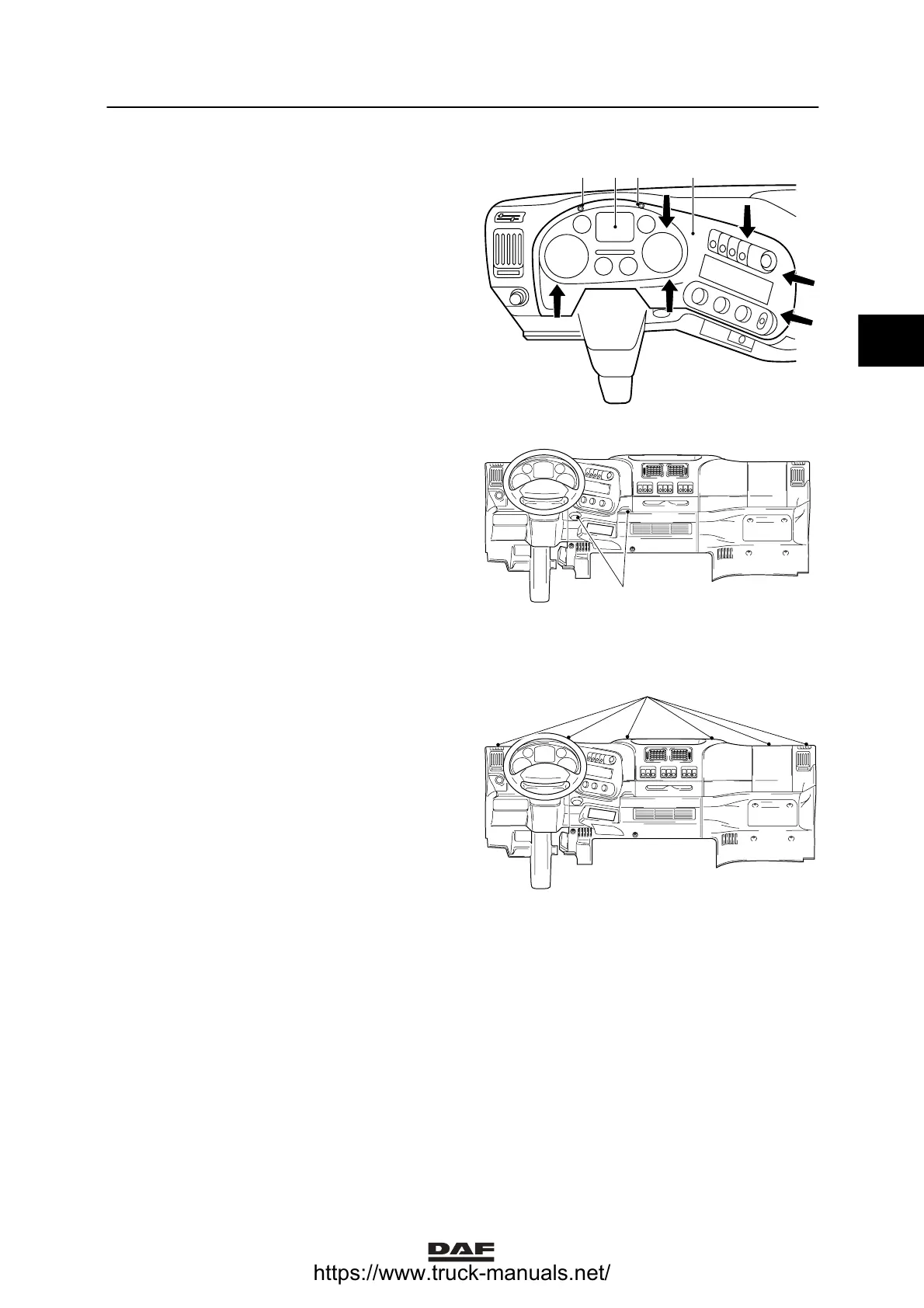

Removing the instrument panel
1. Remove the attachment bolts (1) of the
garnish moulding (2) around the instrument
panel (3).
2. Carefully pull the mounting clips (see
arrows) holding down the garnish moulding
(2) from the dashboard panel.
3. Remove the attachment bolts from the
instrument panel (3).
4. Remove the instrument panel (3).
5. Remove the connector from the instrument
panel (3).
K1 01 430
1
1
2
3
Removing the lower dashboard panel on
driver’s side
1. Remove the attachment bolts (1). Remove
the dashboard panel.
2. Loosen the headlamp height adjustment
connector at the rear.
3. Remove the attachment bolts from the
connector block at the rear of the
dashboard panel.
4. Remove the connector block.
K1 01 431
1
Removing the window frame cover panel
1. Remove the attachment bolts (1) from the
window frame.
2. Take the cover panel out of the window
frame.
K1 01 432
1
2
ǹ 0210
