INTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-12

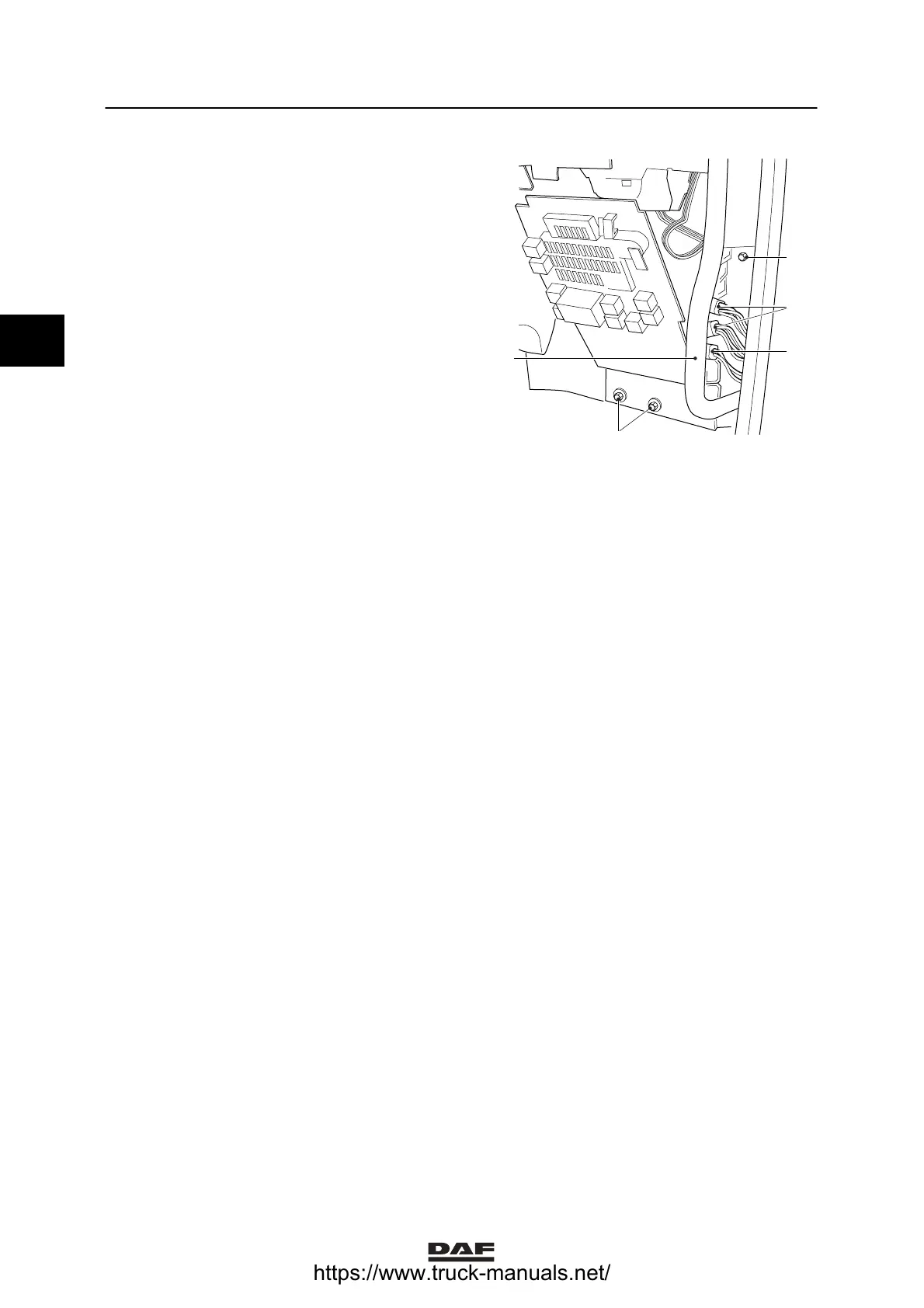

18. Remove the connectors (2) and the earth
connections (3).
19. Remove the attachment bolts on the
underside of the dashboard, left and right.
20. Remove the attachment bolts (4) and (1).
21. Pull the cover plate in the A-pillar out of the
retainer, remove the grip attachment bolt
and remove the grip (5).
22. Remove the floor mats. Remove the
diagnostic and ECAS connectors by taking
the wiring apart and then removing the
attachment bolts. Remove the connectors
from the bracket.
23. Remove the floor plate above the wiring.
24. Remove the seat wiring.
25. Remove the attachment bolts from the
window frame.
26. Remove the attachment bolts on the
underside and remove the complete
dashboard.
K1 00 986
1
2
3
4
5
Fitting the dashboard
1. Fit the dashboard and secure it in the
window frame using a few attachment bolts.
2. Fit the seat wiring.
3. Install the floor plate above the wiring.
4. Fit the ECAS and diagnostic connectors to
the bracket.
5. Fit the grip and the cover panel in the
A-pillar.
6. Fit the connectors in the central box.
7. Remove the seals from the coolant hoses
and attach the hoses.
8. Fit the connectors to the left and right of the
steering column.
2
ǹ 0210
