INTERNAL CAB COMPONENTS
Removal and installation LF45/55 series
4-16

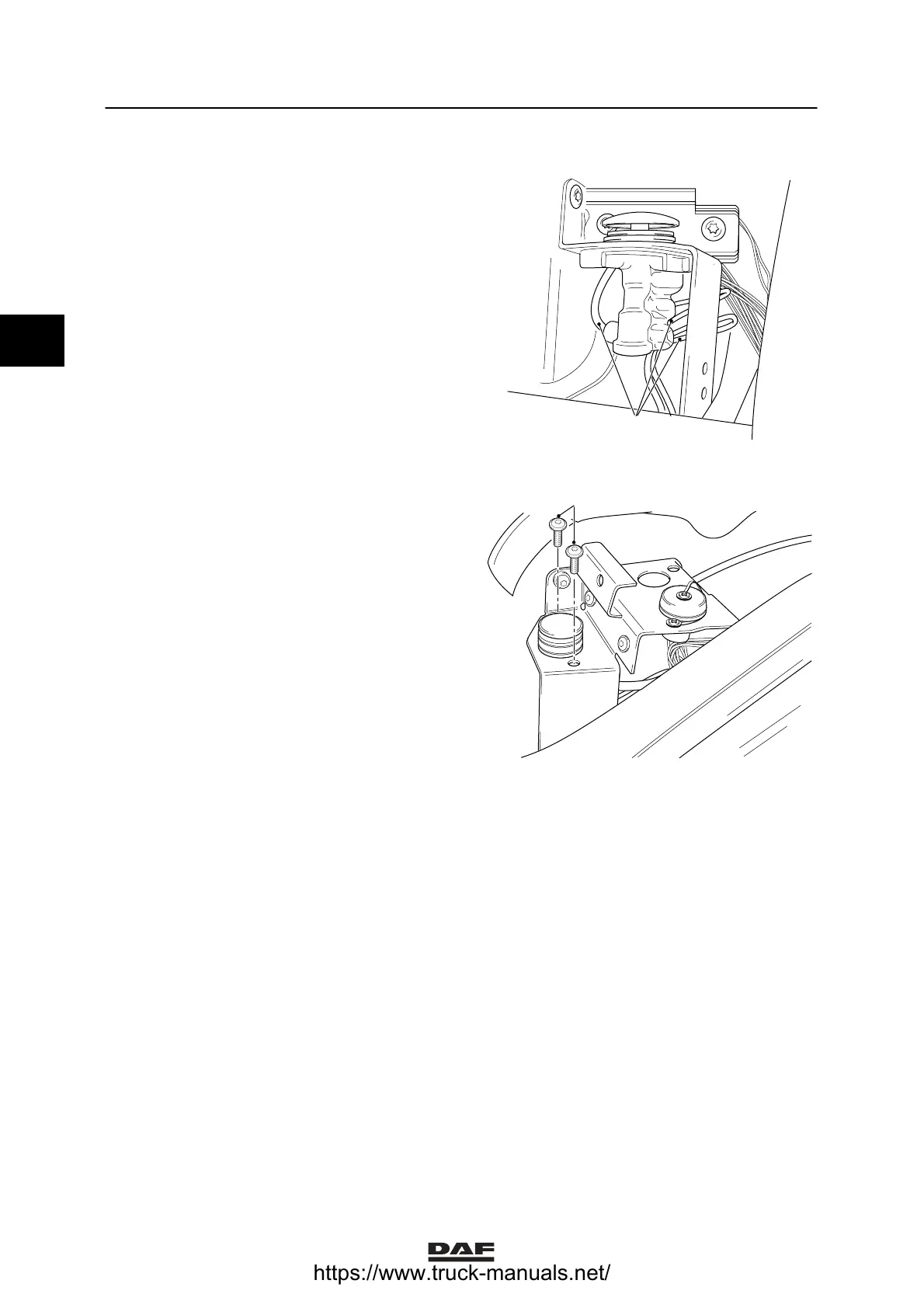

Fitting the pneumatic switch/valve
1. Fit the air pipes (2) to the switch/valve.
K1 01 121
2
2. Fit the switch/valve and secure them using
the attachment bolts (1).
K1 01 120
1
3. Check the operation of the switch/valve, see
chapter ”Inspection and Adjustment”.
4. Reposition the floor mat.
2
