Local Configurations 143
5.10.2.2 Configuring Alarms from Alarm Box
You can connect the alarm box to the RS-485 port of the Device. When the alarm is detected by
the alarm box, the alarm information will be uploaded to the Device, and then the Device
outputs the alarms in the way that you configure in this section.
Select Main Menu > ALARM > ALARM INPUT > Alarm Box. Step 1
The Alarm Box interface is displayed. See Figure 5-112.

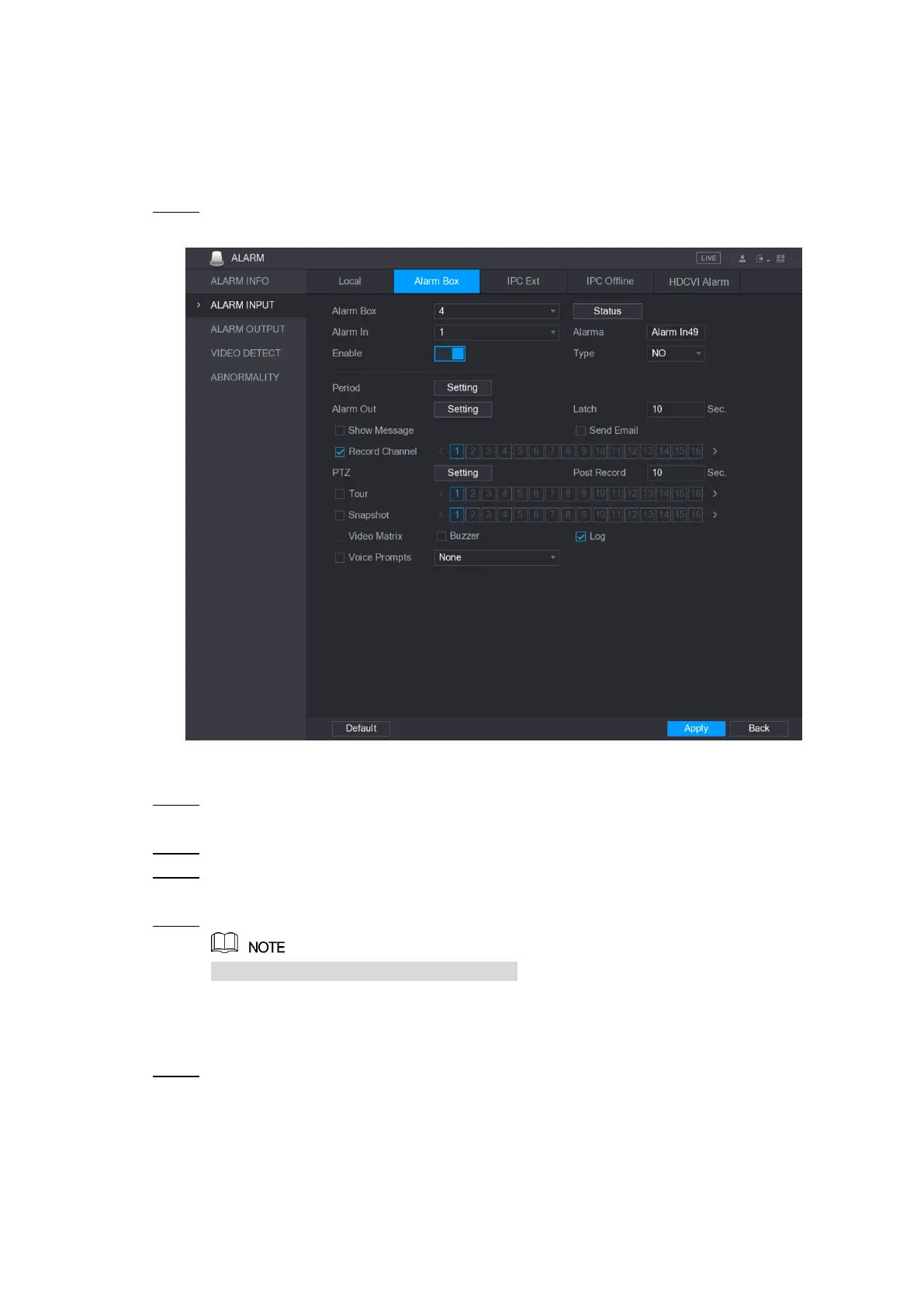

Figure 5-112
In the Alarm Box list, select the alarm box number corresponding to the address Step 2
number configured by the DIP switch on the Alarm Box.
In the Alarm In list, select the alarm input port on the Alarm Box. Step 3
Configure the settings for other parameters of the Alarm Box. For details, see Table Step 4
5-35.
Click Apply to complete the settings. Step 5
Click Default to restore the default setting.
5.10.2.3 Configuring Alarms from External IP Cameras
Select Main Menu > ALARM > ALARM INPUT > IPC Ext. Step 1
The IPC Ext interface is displayed. See Figure 5-113.
