Dahua NVR41 series User Manual

User's Manual
24
Figure 2-25

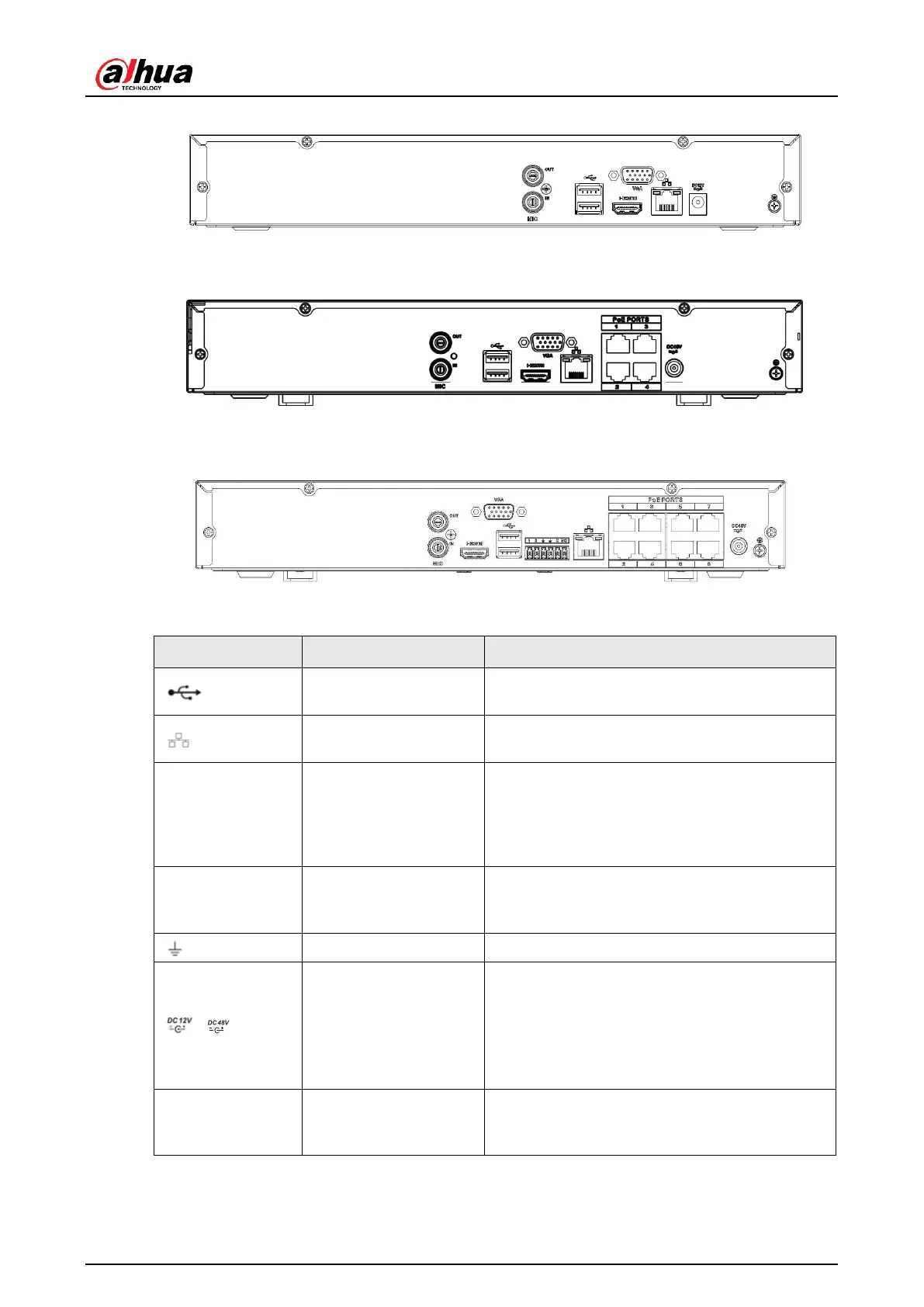

The NVR41H-P rear panel is shown as in Figure 2-26.
Figure 2-26
The NVR41H-8P rear panel is shown as in Figure 2-27.
Figure 2-27
Table 2-16
Port Name
Connection
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB
storage device, USB burner and etc.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition Media
Interface
High definition audio and video signal output
port. It transmits uncompressed high
definition video and multiple-channel data to
the HDMI port of the display device. HDMI
version is 1.4.
VGA
VGA video output port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
GND
Ground end
/
Power input port
Power socket.
● For NVR41H series, input DC 12V/2A.
● For NVR41H-P series, input DC
48V/1.5A.
● For NVR41H-8P series, input DC 48V/2A.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
