Dahua NVR41 series

User's Manual
32
Figure 2-40

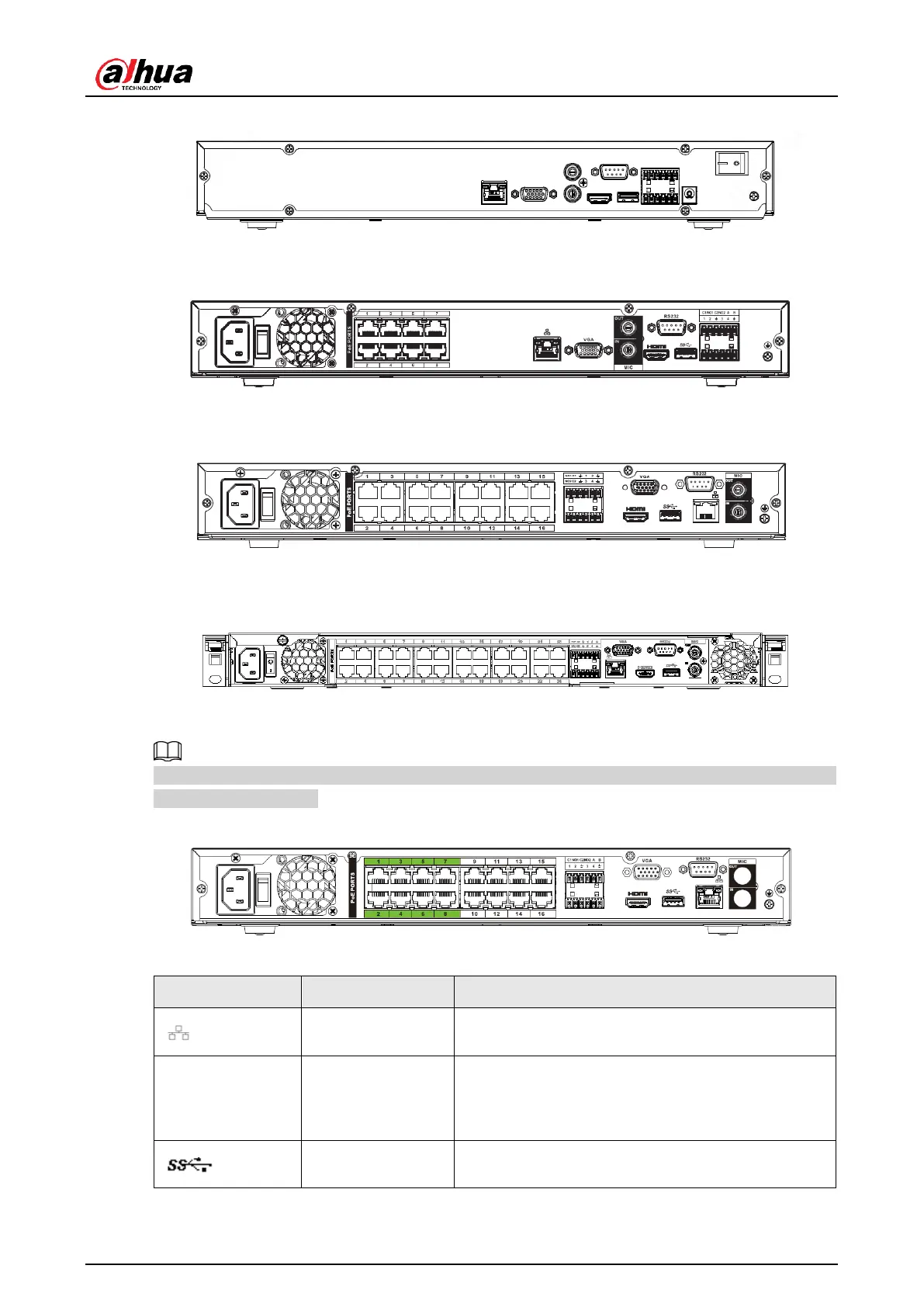

The NVR52-8P-4KS2 series rear panel is shown as below. See Figure 2-41.
Figure 2-41
The NVR52-16P-4KS2 series rear panel is shown as below. See Figure 2-42.
Figure 2-42
The NVR52-24P-4KS2 series rear panel is shown as below. See Figure 2-43.
Figure 2-43
The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below. See Figure 2-44.
The following figure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E series
has 8 ePoE ports only.
Figure 2-44
Table 2-21
Icon
Port Name
Function
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.4.
USB3.0 port
USB3.0 port. Connect to mouse, USB storage
device, USB burner and etc.
