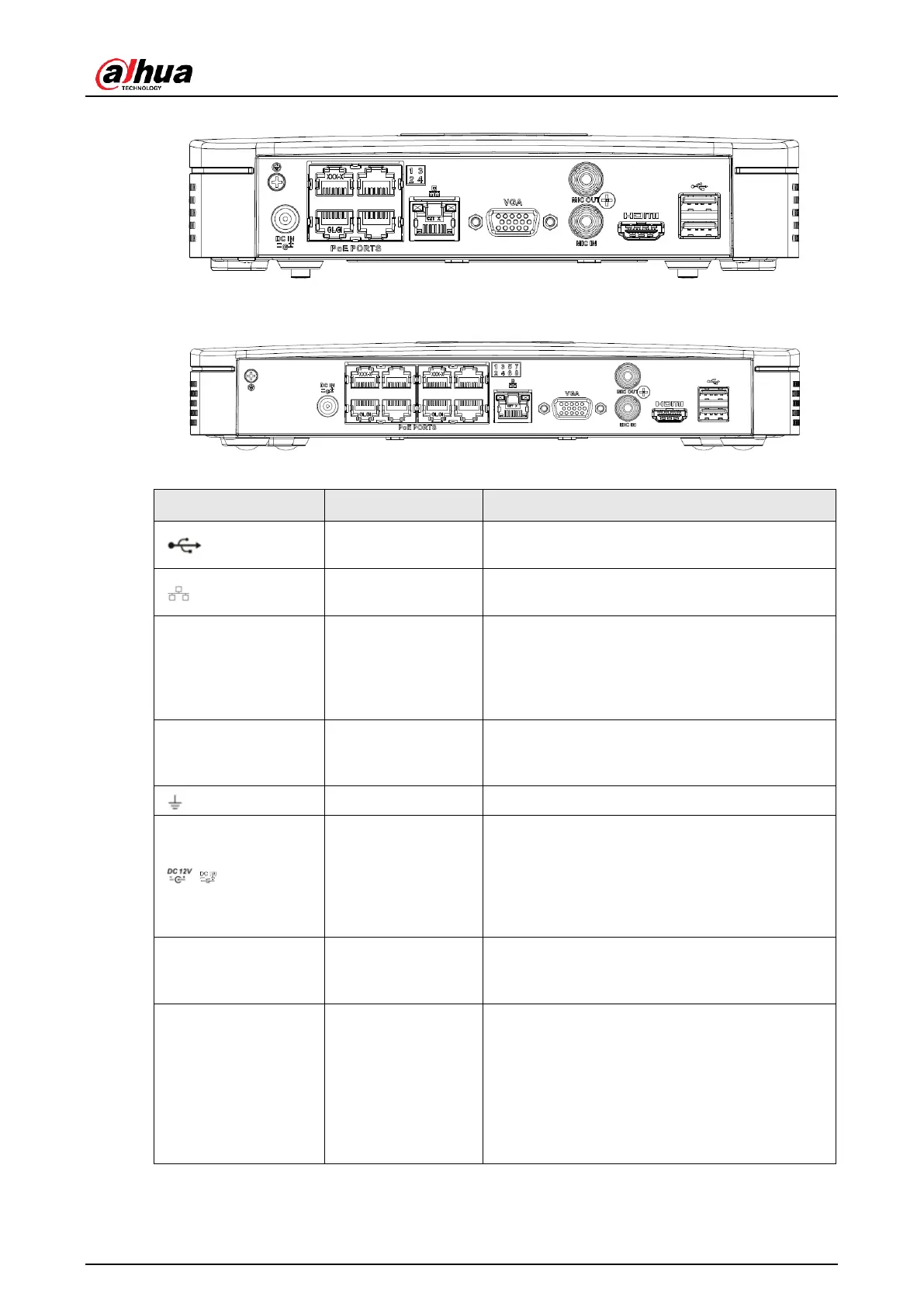

The NVR41-8P-4KS2 series rear panel is shown as below. See Figure 2-58.
Figure 2-58
Table 2-26
USB port. Connect to mouse, USB storage
device, USB burner and etc.
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
High Definition
Media Interface
High definition audio and video signal output
port. It transmits uncompressed high
definition video and multiple-channel data to
the HDMI port of the display device. HDMI
version is 1.4.
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Power socket.
● For NVR41-4KS2: DC 12V/2A power.
● For NVR41-P-4KS2: DC 48V/72W power.
● For NVR41-8P-4KS2: DC 48V/96W
power.
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.
● Bidirectional talk output.
● Audio output on 1-window video monitor.
● Audio output on 1-window video
playback.
