User's Manual
68

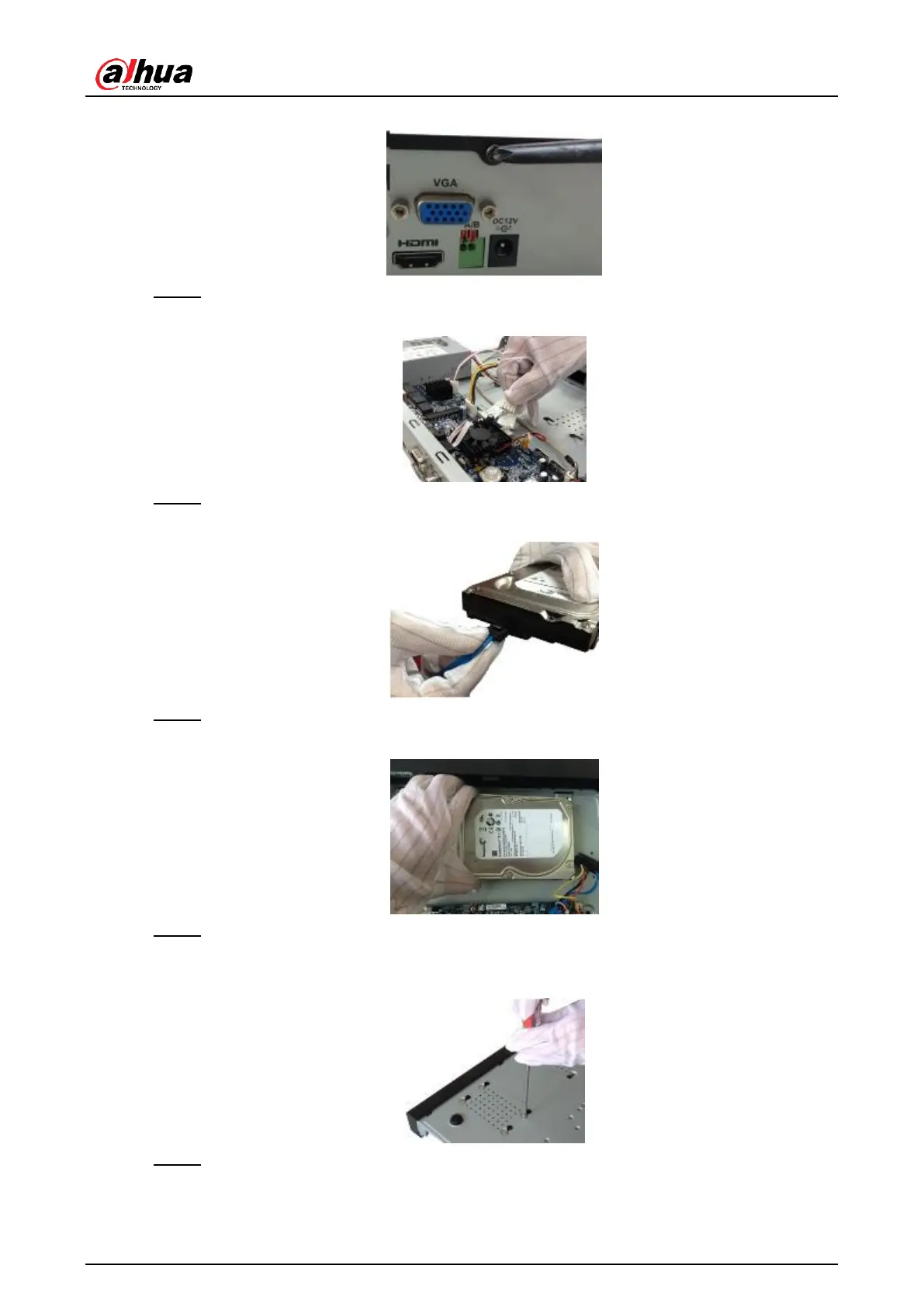

Figure 3-6
Step 2 Connect the one end of the HDD data cable and the power cable to the mainboard.
Figure 3-7
Step 3 Connect the other end of the HDD data cable and the power cable to the HDD.
Figure 3-8
Step 4 Place the HDD in accordance with the four holes on the bottom of the chassis.
Figure 3-9
Step 5 Turn the device upside down; fix the screws to secure the HDD on the bottom of the
chassis.
Figure 3-10
Step 6 Put the cover in accordance with the clip and then fix the screws on the rear panel
and side panel.
