Dahua XVR7416L User Manual

149
Status indication
light
Status
The light is on if device operates properly.
Power indication
light
PWR
Power indication light
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.10 HCVR48XXS-S2/ XVR58XXS/ XVR78XXS Series

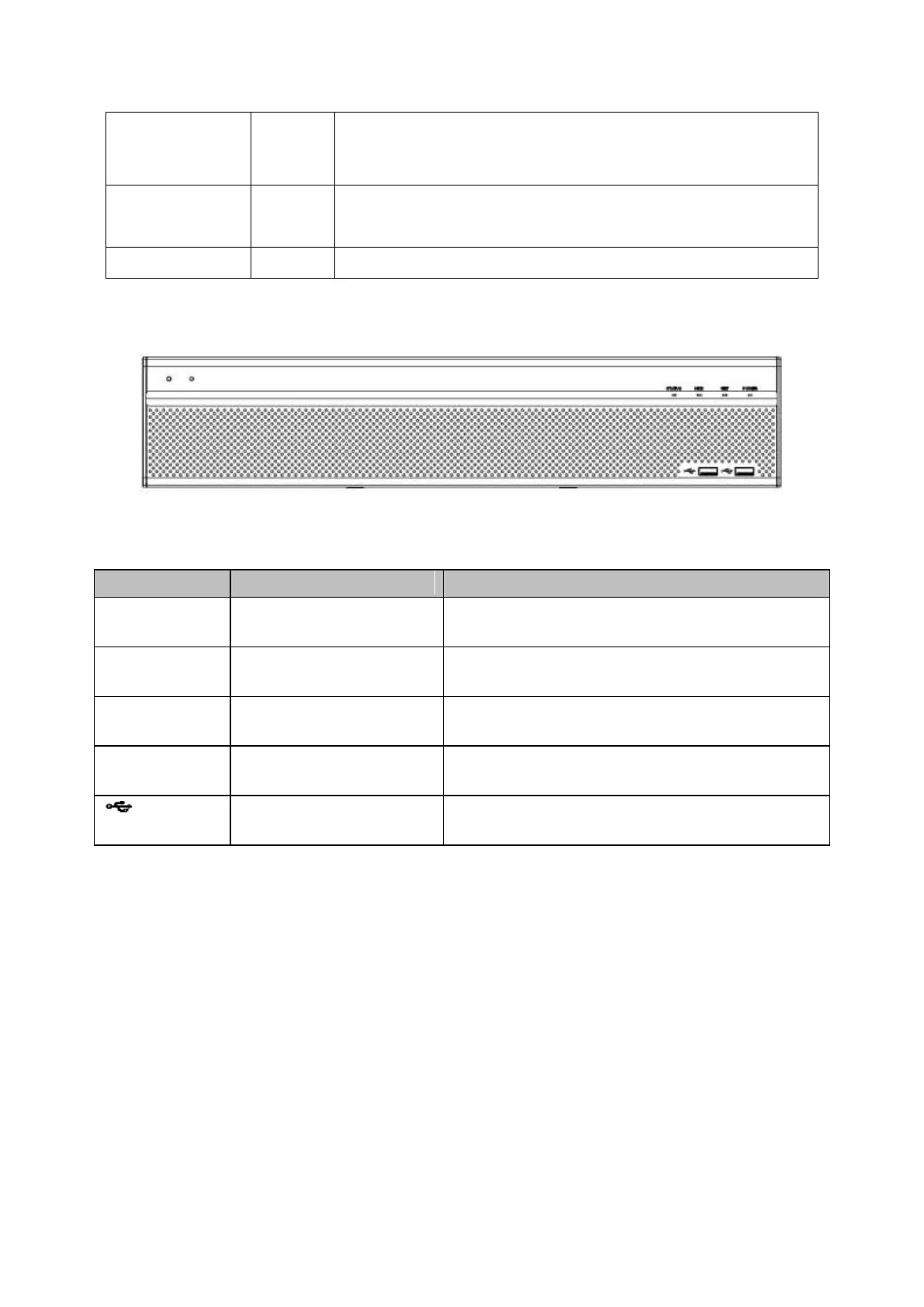

The front panel is shown as below. See Figure 2-10.
Figure 2-10
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is working
properly.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.2 Rear Panel
2.2.1 HCVR5104C Series
The HCVR5104C rear panel is shown as below. See Figure 2-11.
