237

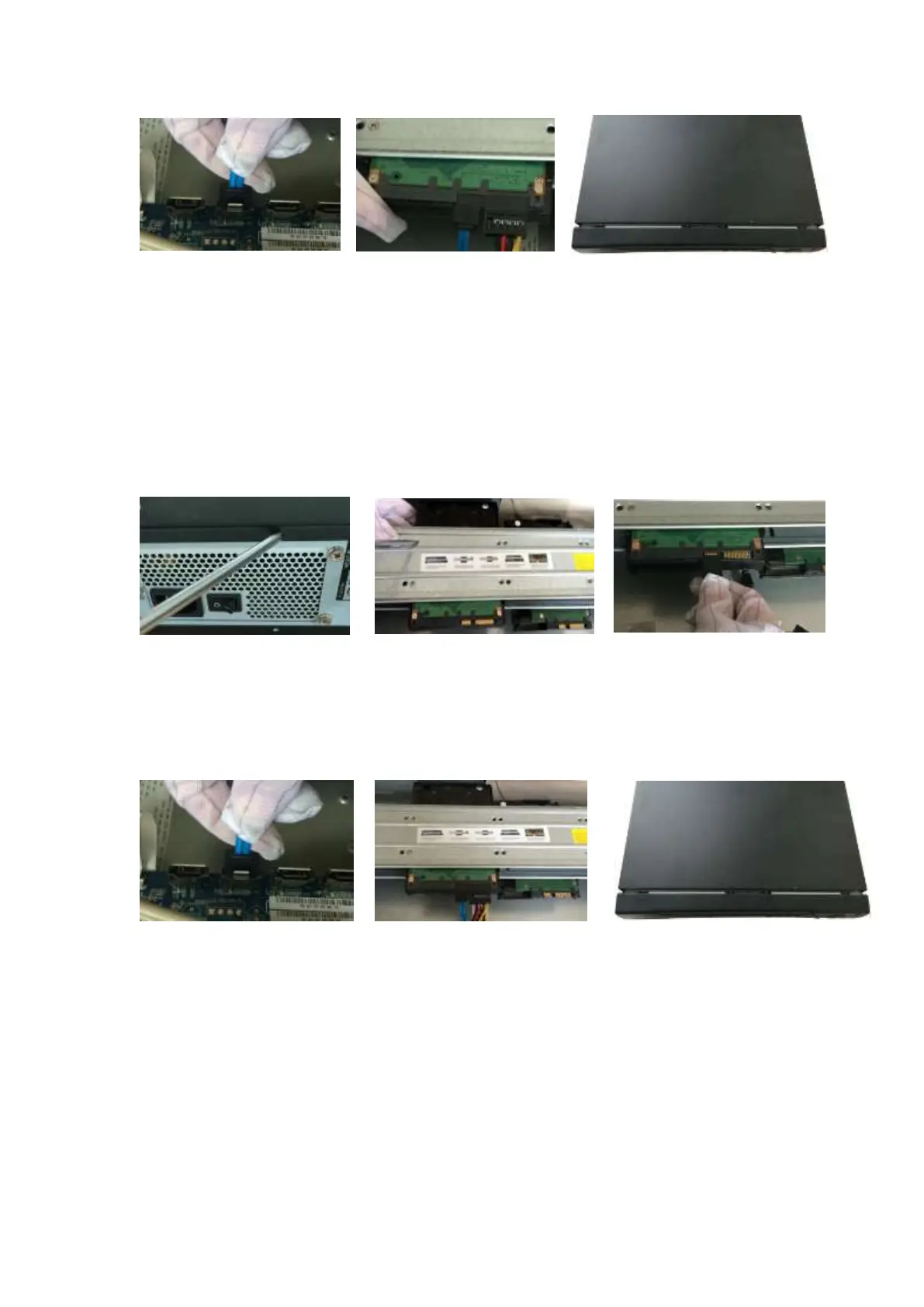

4 Connect the other end of
the HDD cable to the
mainboard.
5 Connect the power cable
to the HDD.
6 Put the cover back and fix the
screws to secure firmly.
3.3.6 The 2U Series
The 2U series includes HCVR58XXS-V2/HCVR48XXS-V2/XVR54XX-S/XVR74XX-S and
etc.
This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.
Loosen the screws of the
upper cover and side panel.
Remove the cover.
Fix the HDD(s) on the
bracket. Remove the top
bracket if you want to install
HDD to the bottom bracket.
Connect the one end of the HDD
cable to the HDD.
Connect the other end of the
HDD cable to the mainboard.
Connect the power cable to the
HDD.
Put the cover back and fix the
screws to secure firmly.
Important:
If the HDD amount is less than four, you do not need to install the HDD bracket.
When there is a bracket, please make sure the installation direction of HDDs is the same.
3.3.7 Rack Installation
The DVR occupies 1.5U/2U rack units of vertical rack space.
Use twelve screws to fix the unit
