Dahua XVR7416L User Manual

202
SN
Icon
Name
Note
port
output.
7
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
8
Power input
port
Input 12V/5A DC.
9
A
RS-485
communicatio
n port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
Network port
1000M Ethernet port
11
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
12
AUDIO OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
13
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
2.2.33 HCVR58XXS-V2/HCVR48XXS-S2 Series

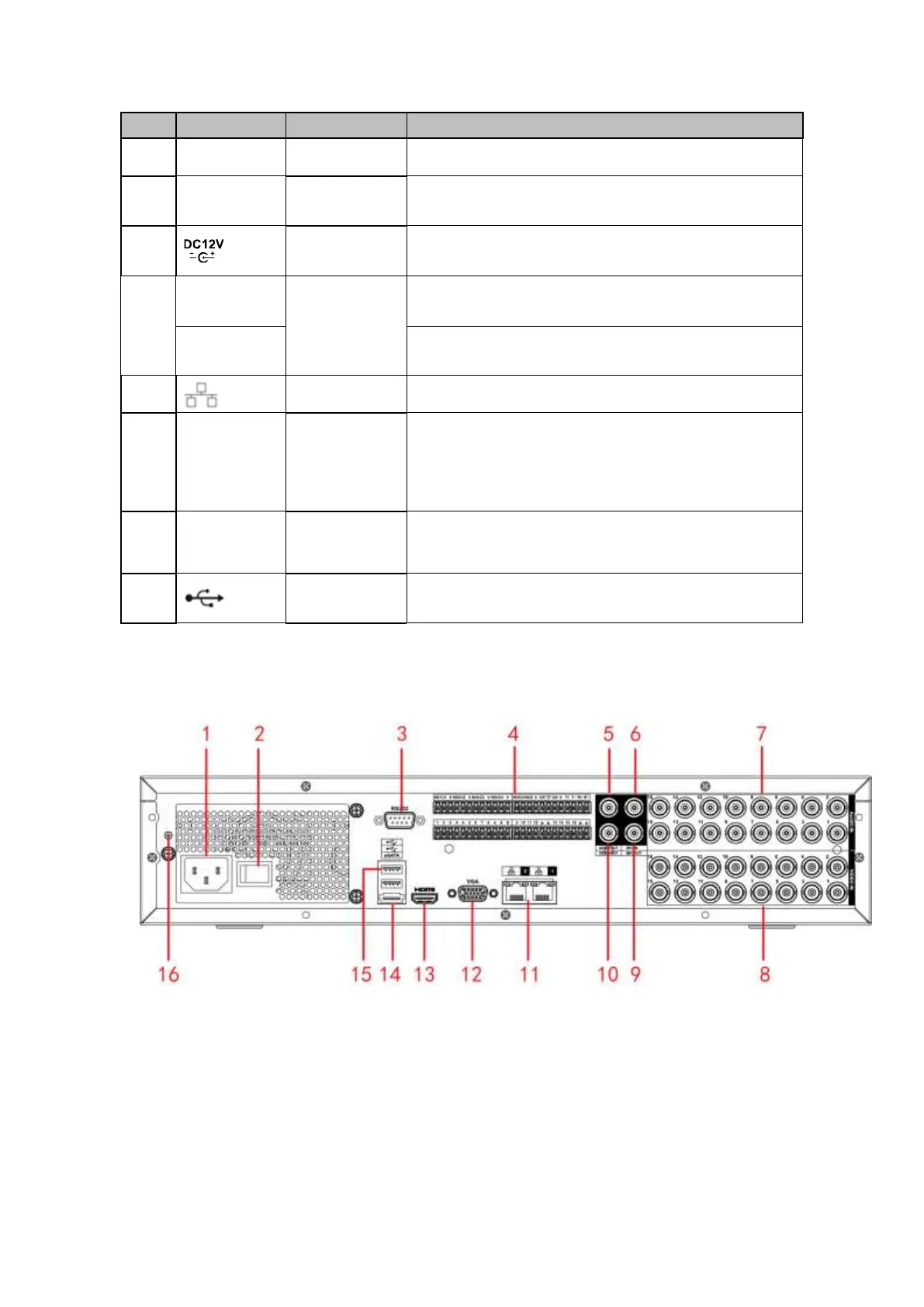

The rear panel is shown as in Figure 2-79.
The following figure is based on the HCVR5816S-V2 series product.
Figure 2-79
The HCVR4832S-S2 rear panel is shown as in Figure 2-80.

Dahua XVR7416L Specifications

General

Brand	Dahua
Model	XVR7416L
Category	DVR
Language	English
