Dahua XVR7416L User Manual

221

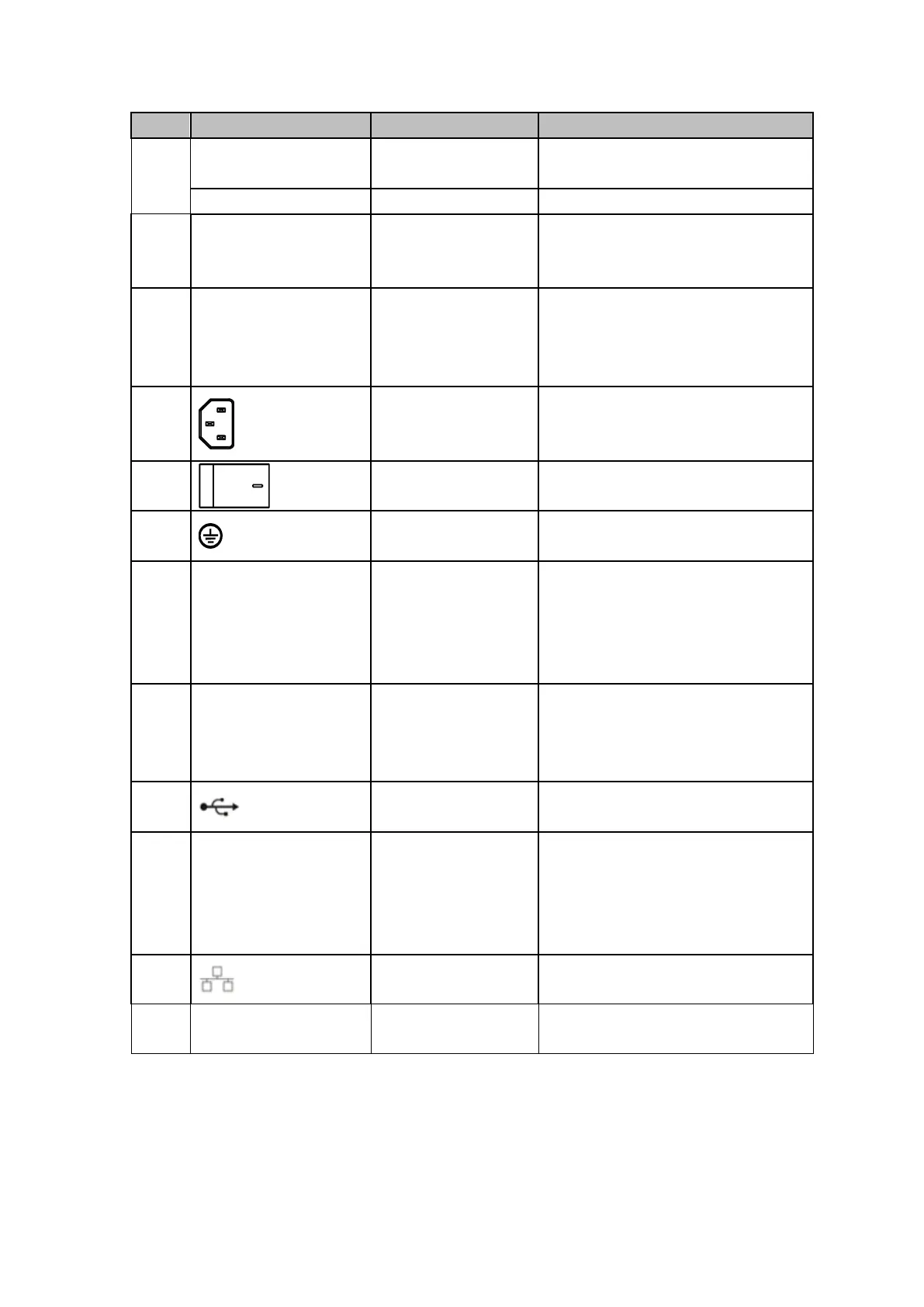

SN
Icon
Name
Note
note the supplying power shall be
below 1A.
G
Ground
Ground
7
RS-232
RS232 debug COM.
It is for general COM debug to
configure IP address or transfer
transparent COM data.
8
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
9
Power socket
Power socket
10
Power switch
Power on/off button.
11
Ground terminal
Ground
12
HDMI 1
High Definition
Media Interface 1
High definition audio and video
signal output port. It outputs the
same video source as VGA/TV.
Support mouse operation and
control.
13
HDMI2
High Definition
Media Interface 2
High definition audio and video
signal output port. Support
multiple-window video matrix
output. Support tour function.
14
USB port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
15
eSATA
eSATA port
External SATA port. It can connect
to the device of the SATA port.
Please make sure there is power
supplying when there is peripheral
connected HDD.
16
Network port
1000Mbps Ethernet port
17
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
When connect the Ethernet port, please use crossover cable to connect the PC and use
the straight cable to connect to the switch or router.
2.3 Connection Sample

Dahua XVR7416L Specifications

General

Brand	Dahua
Model	XVR7416L
Category	DVR
Language	English
