Dahua XVR7416L User Manual

208
SN
Icon
Name
Function
8
AUDIO OUT
Audio output
port
Connect to sound box and etc to output audio signal.
9
A
RS485
communicatio
n port
RS485_A port. It is the cable A. You can connect to the
control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the control
devices such as speed dome PTZ.
10
USB3.0 port
Connect to mouse, USB storage media, USB-burner and
etc.
11
Power socket
Power input port
2.2.36 XVR54XXL/ XVR74XXL Series

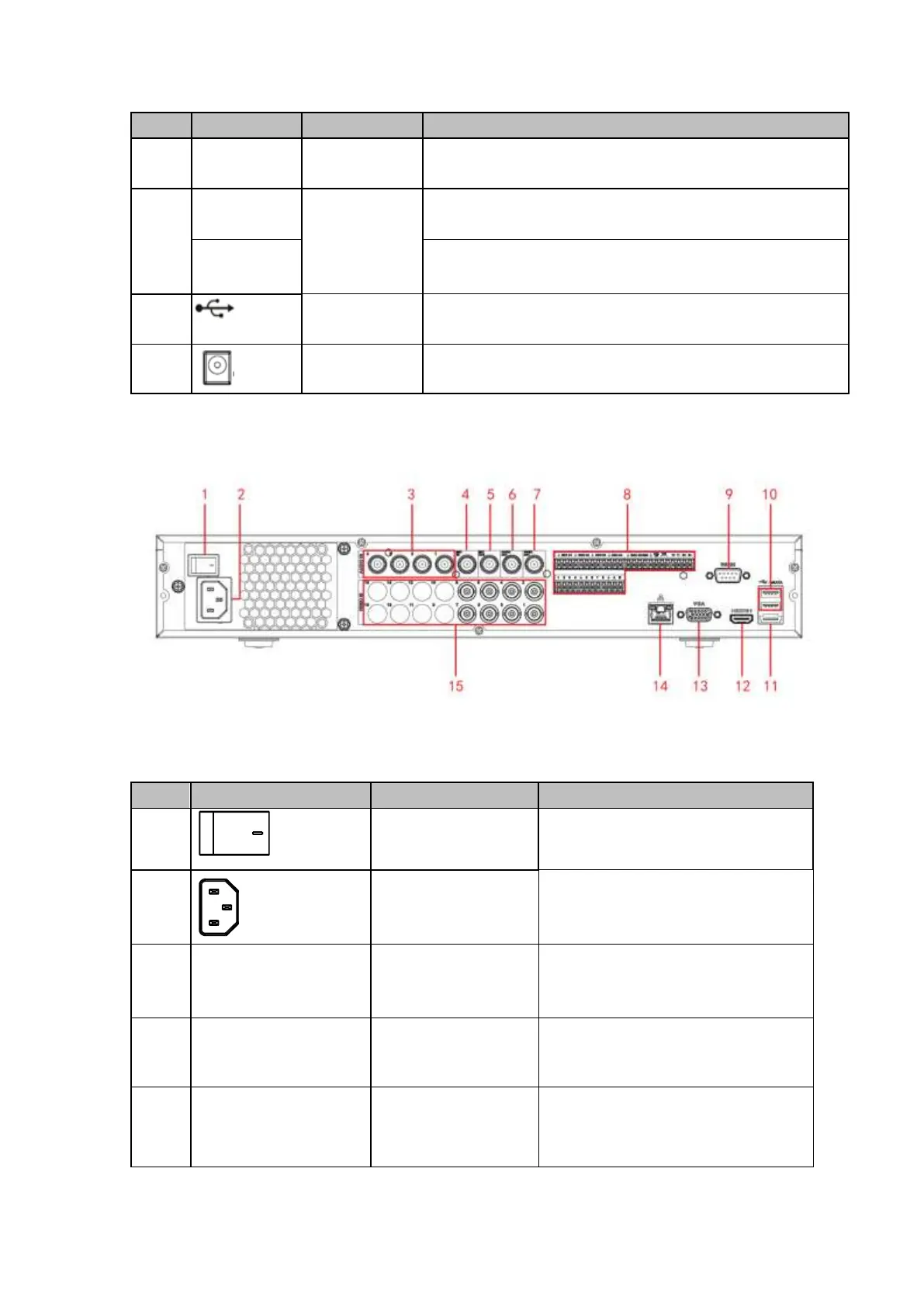

The XVR5408L rear panel is shown as below. See Figure 2-83.
Figure 2-83
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power switch
Power on/off button.
2
Power socket
Power socket
3
AUDIO IN
Audio input port
It is to receive the analog audio
signal output from the devices such
as microphone.
4
MIC OUT
Audio output port
Audio output port. It is to output the
analog audio signal to the devices
such as the sound box.
5
MIC IN
Audio input port
Bidirectional talk input port. It is to
receive the analog audio signal
output from the devices such as
