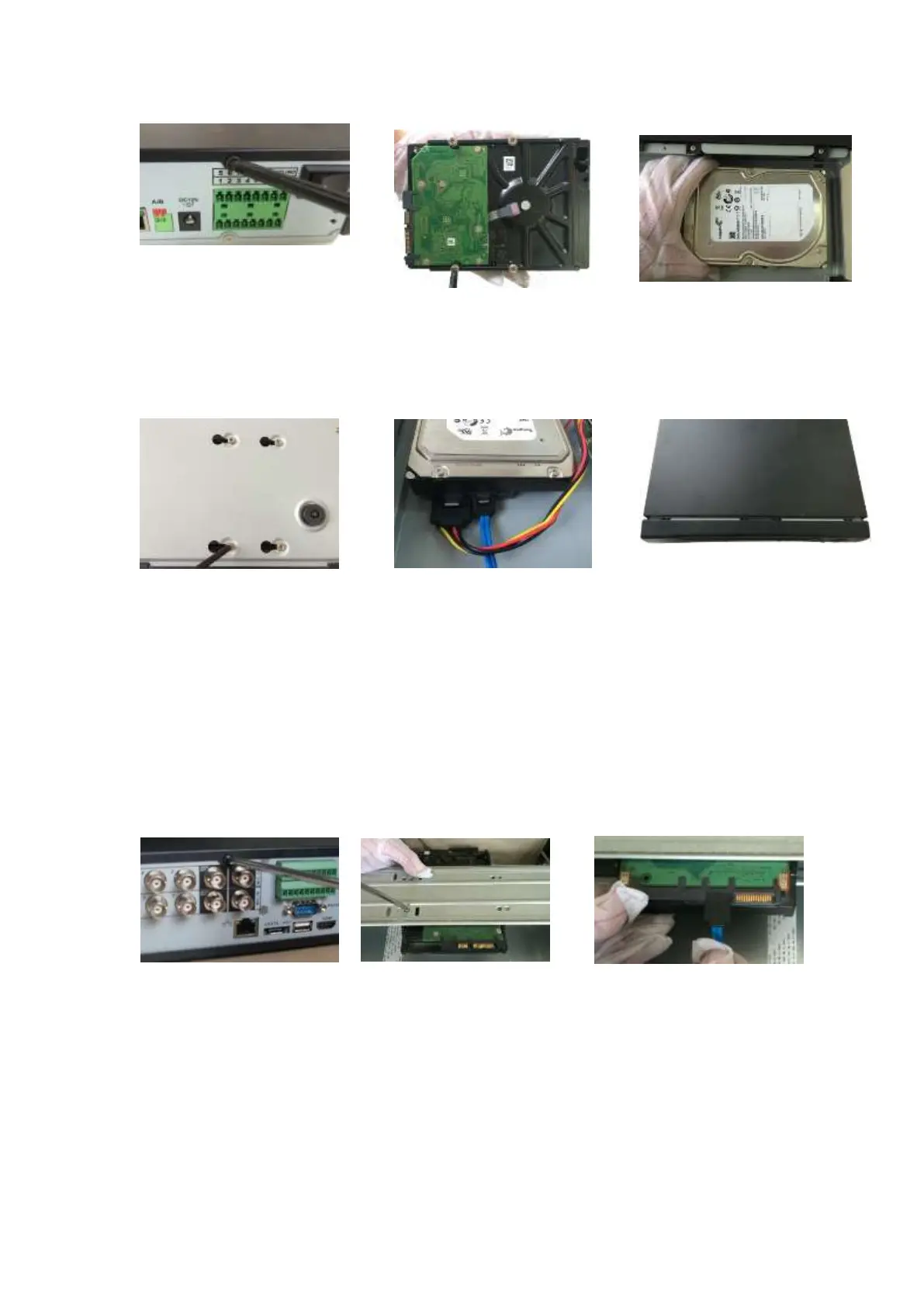

① Loosen the screws of the upper

cover and side panel. Remove

the cover.

② Fix four screws in the HDD

(Turn just three rounds).

③Place the HDD in accordance

with the four holes in the bottom.

④Turn the device upside down and

then turn the screws in firmly.

⑤Connect the HDD cable and

power cable. .

⑥Put the cover in accordance

with the clip and then place the

upper cover back. Secure the

screws in the rear panel and the

side panel.

3.3.5 The 1.5U Series

The 1.5U series includes HCVR52XXL-V2/

HCVR54XXL-V2/HCVR44L-S2/XVR54XX-L/XVR74XX-L and etc.

This series DVR max has four SATA HDDs. Please use HDD of 7200rpm or higher.

○

1 Loosen the screws of the

upper cover. Remove the

cover.

○

2 Line up the HDD to the

four holes of the HDD

bracket. Use four screws to

fix HDD.

○

3 Connect the one end of the HDD

cable to the HDD.
