Dahua XVR7416L User Manual

197

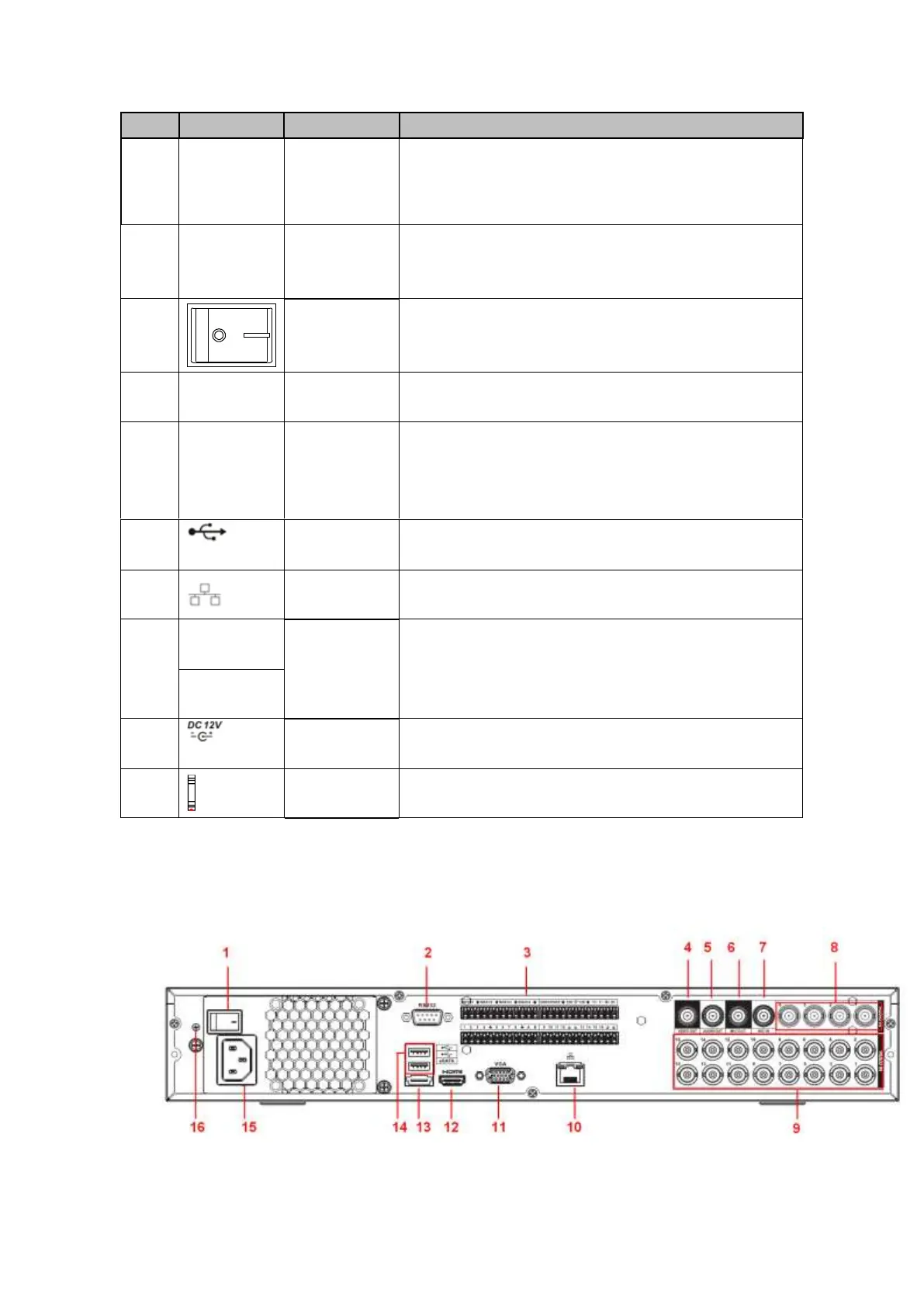

SN
Icon
Name
Note
4
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
5
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
6
Power switch
Power on/off button.
7
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
8
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
9
USB2.0 port
Connect to USB storage device, mouse, burning
DVD-ROM and etc.
10
Network port
100M Ethernet port
11
A
RS485
（ RS-485 ）
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
12
Power input
port
Input 12V DC.
13
Power cable
fastener
Use clamp to secure the power cable on the device in
case there is any loss.
2.2.31 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series
This series products’ rear panel is shown as below. See Figure 2-76.
The following figure is based on the HCVR5416L-V2 series product.
Figure 2-76
