4 Turn the device upside down and
then turn the screws in firmly.
○
6 Connect the HDD cable and
power cable.
○
7 Put the cover in accordance with
the clip and then place the upper cover
back.
○
8 Secure the screws in the rear panel and the side panel.
3.3.3 Compact 1U and Mini 1U Series
The mini 1U series includes
HCVR51XXH/51XXHC/51XXHE/51XXH-V2/HC-V2/HE-V2/71XXH-V2/71XXHC-V2/7
1XXHE-V2/ HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/
HCVR710XH-S2/ HCVR710XHE-S2/
XVR41XXHE/XVR51XXHE/XVR71XXH/XVR71XXHE and etc.
The compact 1U series includes HCVR41XXHS-S2/ HCVR2108HS-S2/
HCVR2116HS-S2/HCVR21XXHS-S2/ XVR21XXHS/XVR41XXHS/51XXHS/7104HS
and etc..
The series DVR has one SATA HDD.

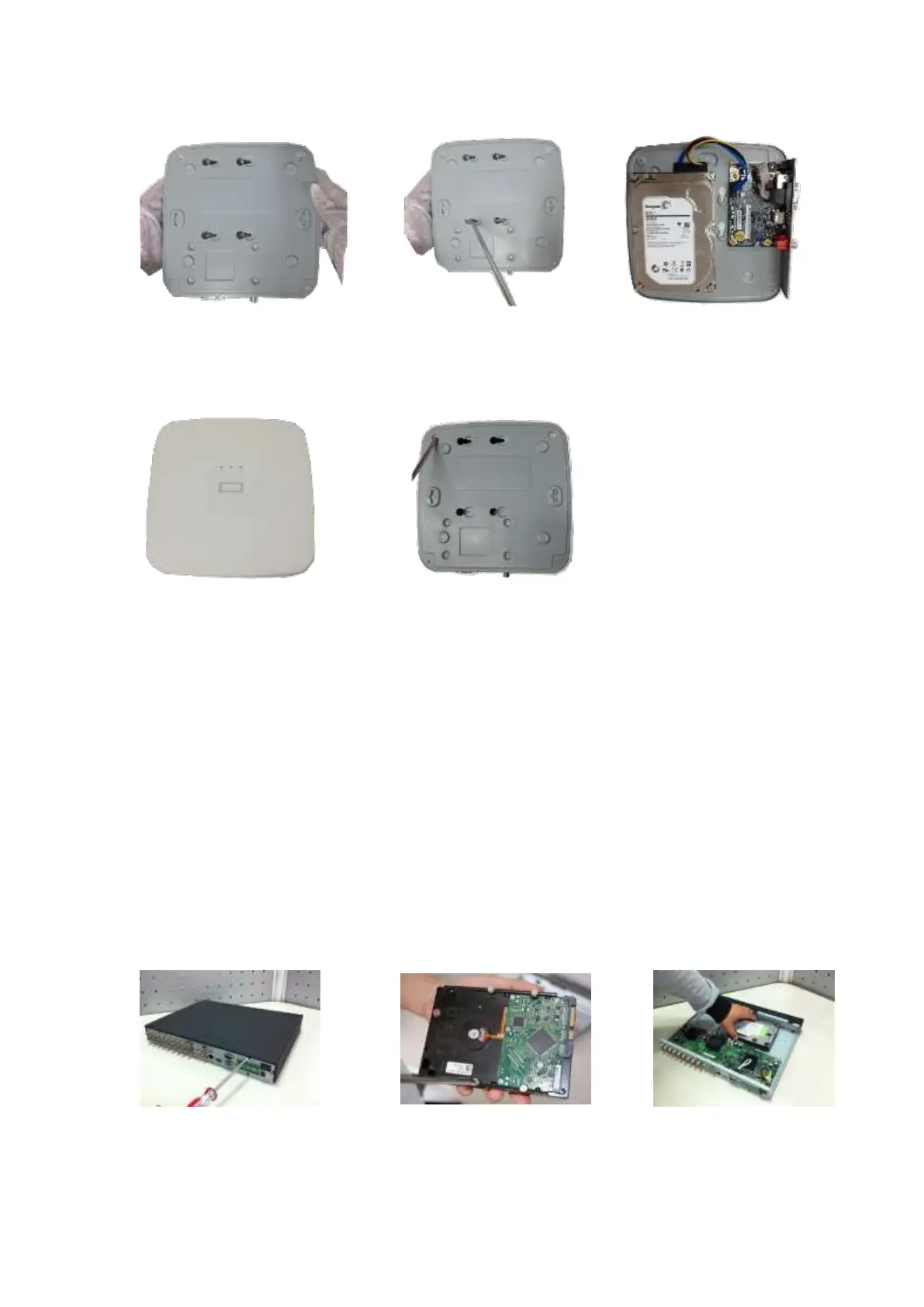

①Loosen the screws of the upper cover
and side panel.
②Fix four screws in the HDD (Turn
just three rounds).
③Place the HDD in accordance
with the four holes in the bottom.
To Next Page
