Dahua XVR7416L - XVR58 XXS; XVR78 XXS Series

216
SN
Icon
Name
Note
15
RS-232
RS232 debug COM.
It is for general COM debug to
configure IP address or transfer
transparent COM data.
16
Network port
1000Mbps Ethernet port
17
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2.2.37 XVR58XXS/ XVR78XXS Series

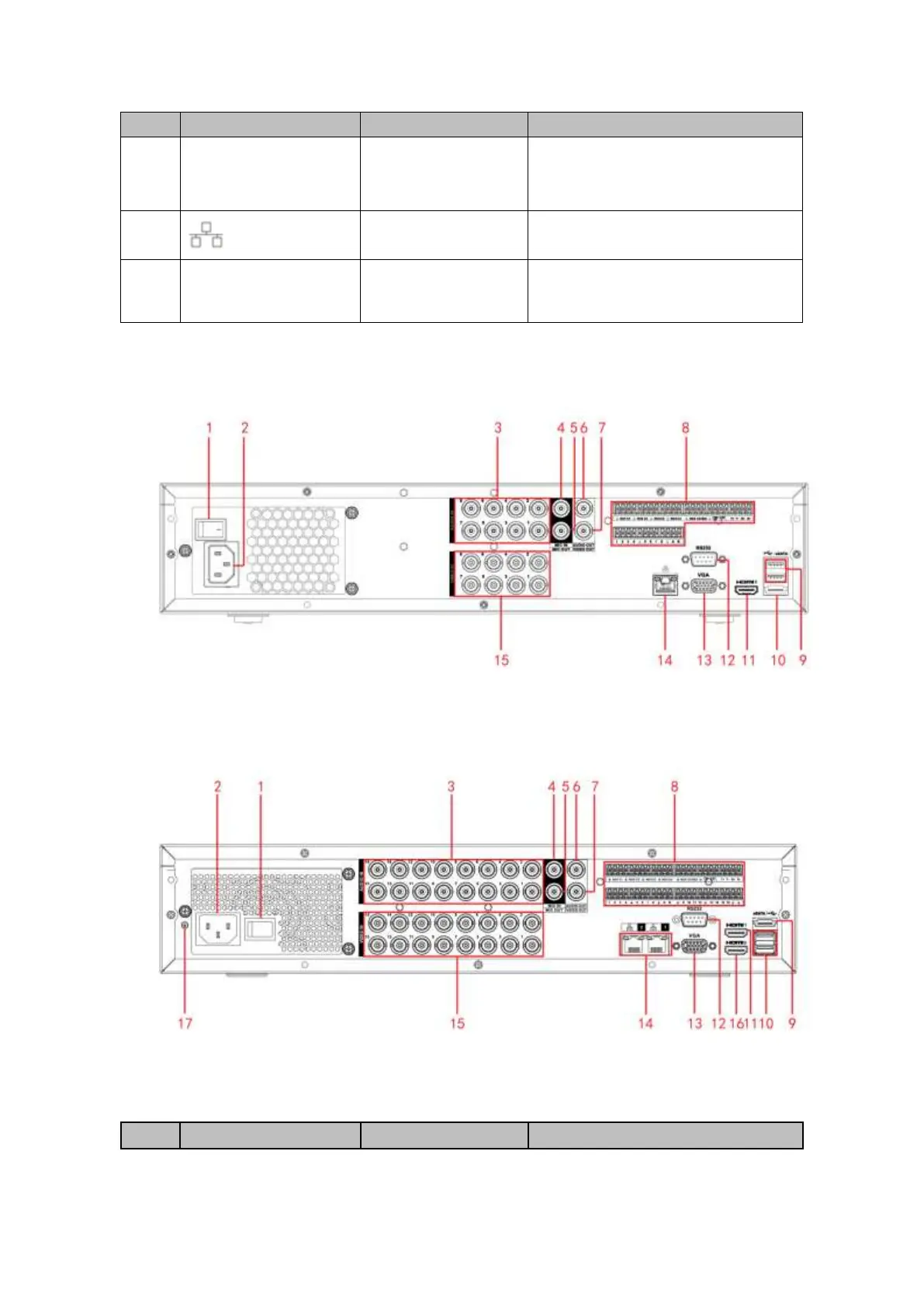

The XVR5808S rear panel is shown as below. See Figure 2-86.
Figure 2-86
The XVR7808S/XVR7816S rear panel is shown as below. See Figure 2-87.
Figure 2-87
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
