Dahua XVR7416L User Manual

182

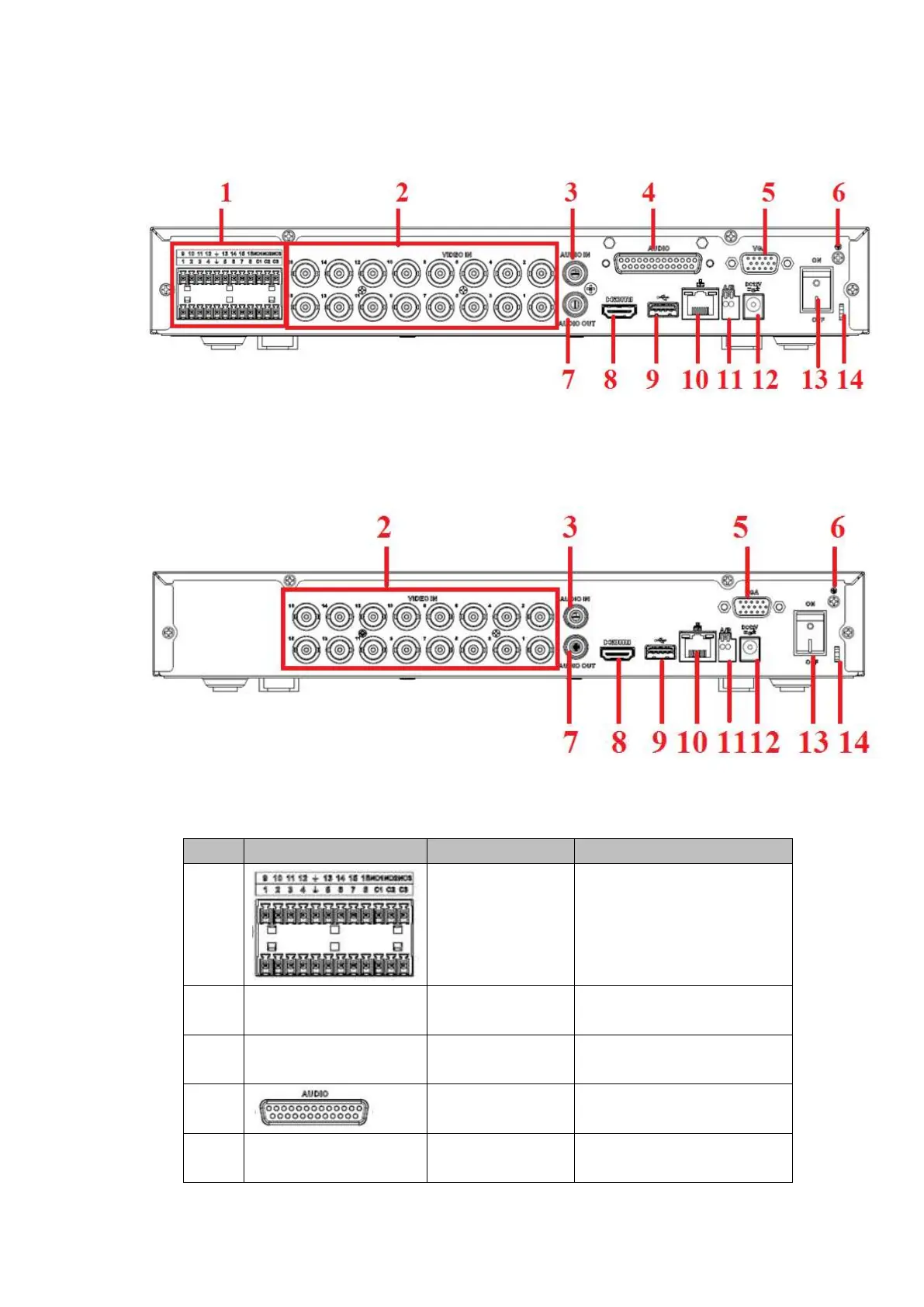

The following figure is based on HCVR4116HE-S3/HCVR5116HE-S3/HCVR7116HE-S3
/XVR4116HE/XVR5116HE/XVR7116HE series.
Figure 2-55
The HCVR71XXH-S3/XVR71XXH rear panel is shown as below. See Figure 4-52.
The following figure is based on the HCVR7116H-S3/XVR7116H.
Figure 2-56
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Alarm input/Alarm
output
Input/output alarm signal.
2
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
3
AUDIO IN
Audio input port
Connect to audio input
device such as speaker.
4
DB25 port
The 5th to the 16th-channel
audio input port.
5
VGA
VGA video output
port
VGA video output port.
Output analog video signal.
