Dahua XVR7416L User Manual

206

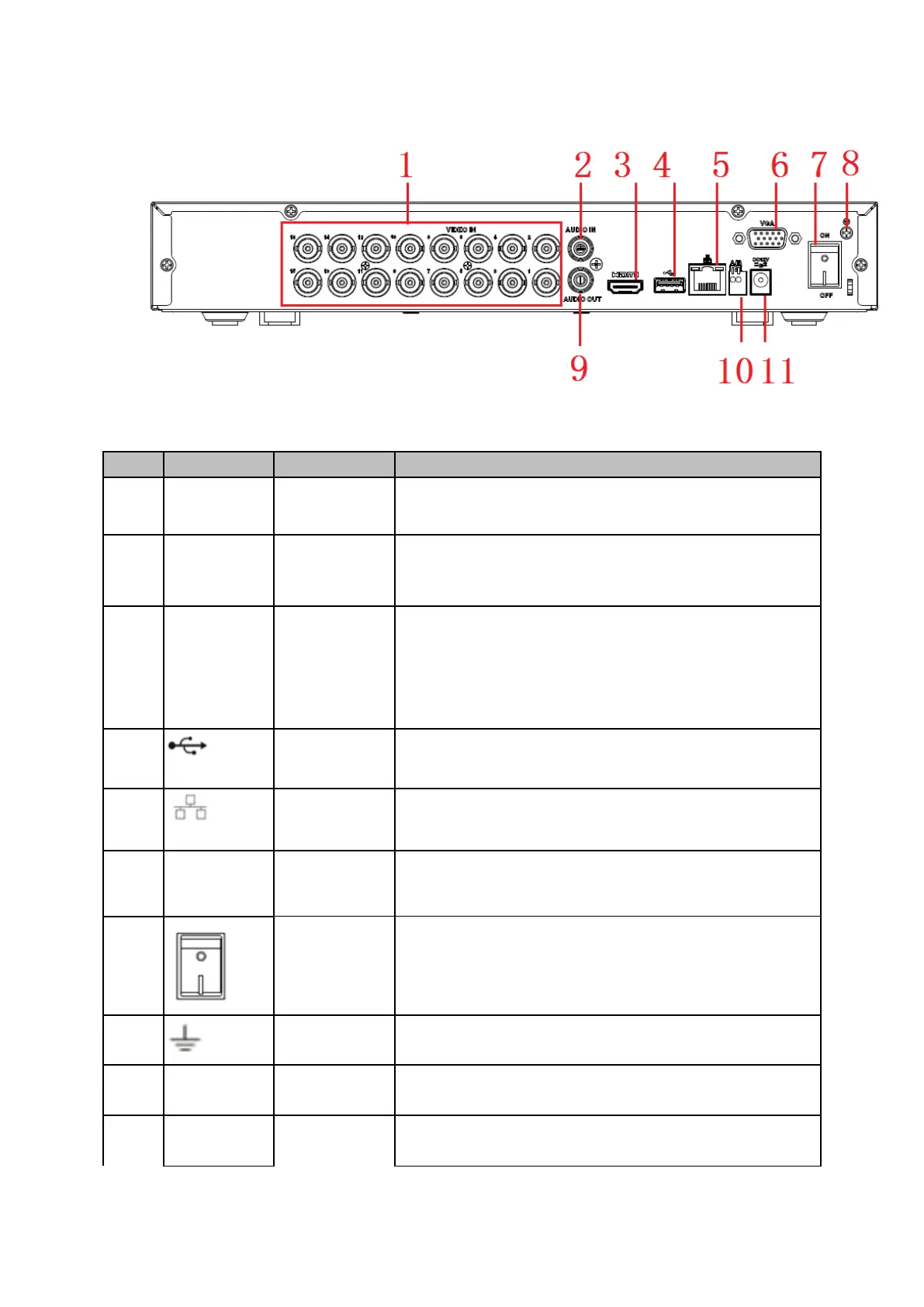

Figure 2-81
Please refer to the following sheet for detailed information.
SN
Icon
Name
Function
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.
3
HDMI
High definition
media
interface
High definition audio and video signal output port. It
transmits the same video signal as that of the VGA/TV or
different video signal from that of the VGA/TV（support
customized setup）.
Support mouse operation.
4
USB3.0 port
Connect to mouse, USB storage media, USB-burner and
etc.
5
Network port
1000M Ethernet port
6
VGA
VGA video
output port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
7
Power switch
Power on/off button.
8
GND
Ground port
9
AUDIO OUT
Audio output
port
Connect to sound box and etc to output audio signal.
10
A
RS485
communicatio
RS485_A port. It is the cable A. You can connect to the
control devices such as speed dome PTZ.
