Dahua XVR7416L User Manual

269

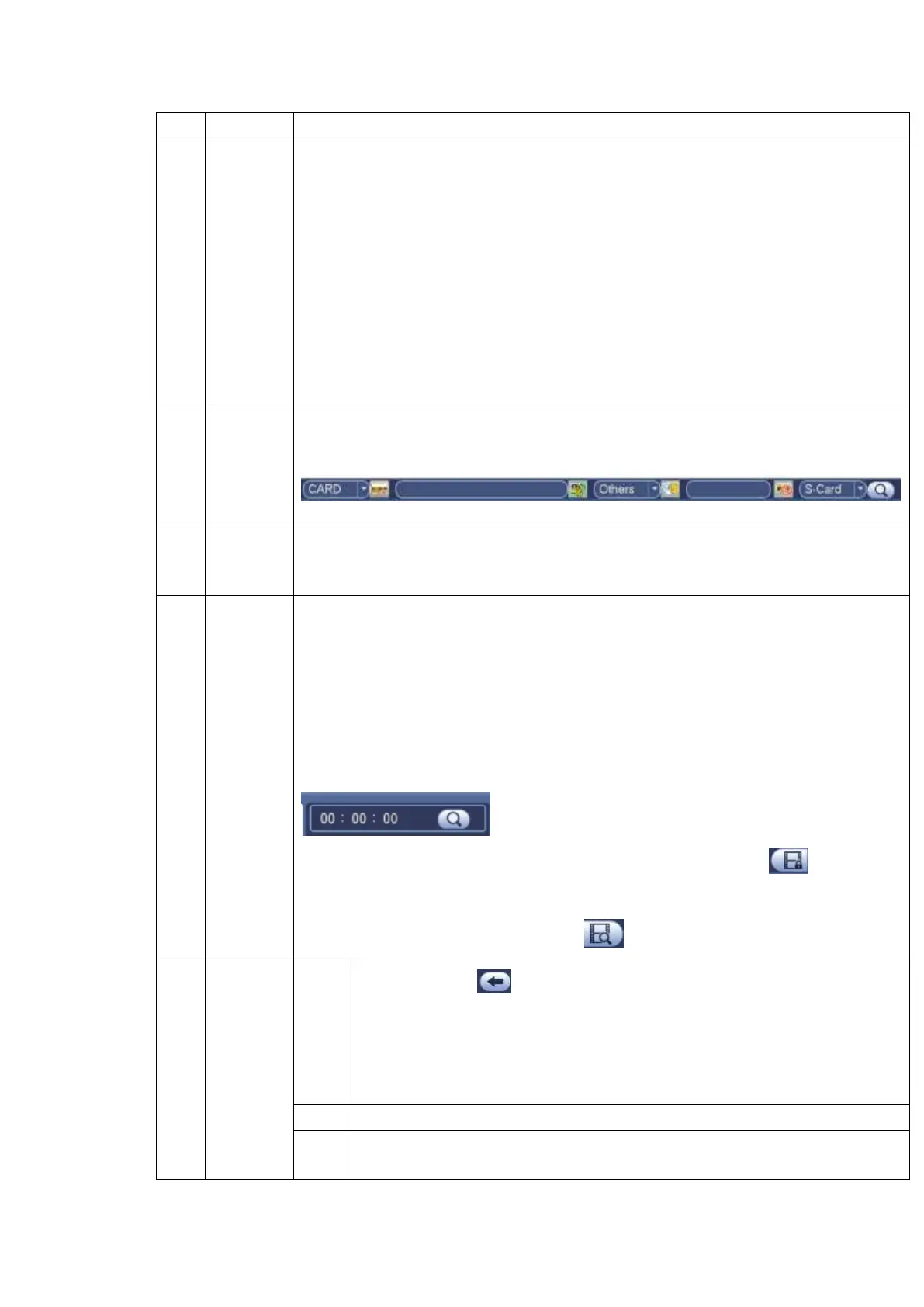

corresponding record file trace in the time bar.
4
Playback
mode
and
channel
selection
pane.
 Playback mode：1/4/9/16/customized. (It may vary due to different series.)
 In 1-window playback mode: you can select 1-16 channels.
 In 4-window playback mode: you can select 4 channels according to your
requirement.
 In 9-window playback mode, you can switch between 1-8 and 9-16 channels.
 In 16-window playback mode, you can switch between1-16 and 17-32
channels.
 In customized mode, you can select one or more channel(s) you want to
playback at the same time. See chapter 4.9.1.4.
 The time bar will change once you modify the playback mode or the channel
option.
5
Card
number
search
The card number search interface is shown as below. Here you can view card
number/field setup bar. You can implement advanced search.
6
Mark file
list button
Click it to go to mark file list interface. You can view all mark information of current
channel by time. Please refer to chapter 4.9.1.3 for detailed information.
Please note only the product of this icon supports mark function.
7
File list
switch
button
 Double click it, you can view the picture/record file list of current day.
 The file list is to display the first channel of the record file.
 The system can display max 128 files in one time. Use the │and │ or the
mouse to view the file. Select one item, and then double click the mouse or click the
ENTER button to playback.
 You can input the period in the following interface to begin accurate search.
 File type：R—regular record； A—external alarm record；M—Motion detect
record.
 Lock file. Click the file you want to lock and click the button to lock. The
file you locked will not be overwritten.
 Search locked file: Click the button to view the locked file.
 Return: Click button , system goes back to the calendar and channel setup
interface.
Please note:
 For the file that is writing or overwriting, it can not be locked.
8
Playback
control
pane.
►/
Play/Pause
There are three ways for you to begin playback.
 The play button
 Double click the valid period of the time bar.
 Double click the item in the file list.
In slow play mode, click it to switch between play/pause.
■
Stop

Backward play
In normal play mode, left click the button, the file begins backward play.
