Digital Ready Unit Electrical
Connections
WARNING
Rigorously adhere to eld wiring procedures regarding proper
lockout and tagout of components.
WARNING
To avoid electrical shock, personal injury or death:
1. Installer must be qualied, experienced technician.
2. Disconnect power supply before installation to prevent
electrical shock and damage to equipment.
3. Make all connections in accordance with electrical wiring
diagrams, and in compliance with national and local codes.
Use copper conductors only.
4. Do not exceed ratings of the device. This is a low voltage
device: Never apply more than 12VAC/VDC to any lead or
damage will result.
5. Avoid locations where excessive moisture, corrosive fumes,
or vibrations are present.
See Table 40, and refer to Digital Ready component
details on page 51 and the job-specic electrical
drawings before proceeding with eld power and control
wiring. See also the wiring diagram provided on the unit
ventilator right front access panel.
In addition, those unit ventilators equipped with optional
electric heating coil have electric heating coil power
connections at right end only.
Procedure
1. Provide power supply to right end compartment to
match unit nameplate.
CAUTION
Use copper conductors only. Use of aluminum conductors may
result in equipment failure and overheating hazards. All wiring in
right hand compartment must be class 1.
2. Wire leads provided from unit ventilator electric
connection box to load side of unit power switch
(switch provided by Daikin). The junction box has
1"(25mm) and 2"(51mm) knockouts, located 10-
1/2"(267mm) from right end of unit.
3. Provide ground wire from grounding screw in switch
junction box to switch ground terminal.
4. Wire eld power supply to line side of unit power
switch. Wire ground conductor to switch ground
terminal.
5. Mount unit power switch in switch junction box and
install switch cover plate (provided).
6. Refer to Figure 121 on page 62. (A) shows switch
location for valve control units and (B), (C) and (D)
show location for Face & Bypass control units. (B) is
for 208, 230 and 265 volt units.
7. See Figure 116 for terminal strip designations.
Table 40: Floor AV Electrical Data/Motor Data and Unit
Amp without electric heat
Unit
Series
CFM
(Nom.)
L/s
Motor
HP
Watts
Unit Current #
115V 208V 230V 265V
S07 750 354 1/4 164 1.8 1.0 0.9 0.8
S10 1000 472 1/4 244 3.1 1.7 1.5 1.3
S13 1250 590 1/4 306 3.5 1.9 1.8 1.5
S15 1500 708 1/4 334 3.7 2.0 1.8 1.6
# Amps at unit voltage, 60 Hz, single phase

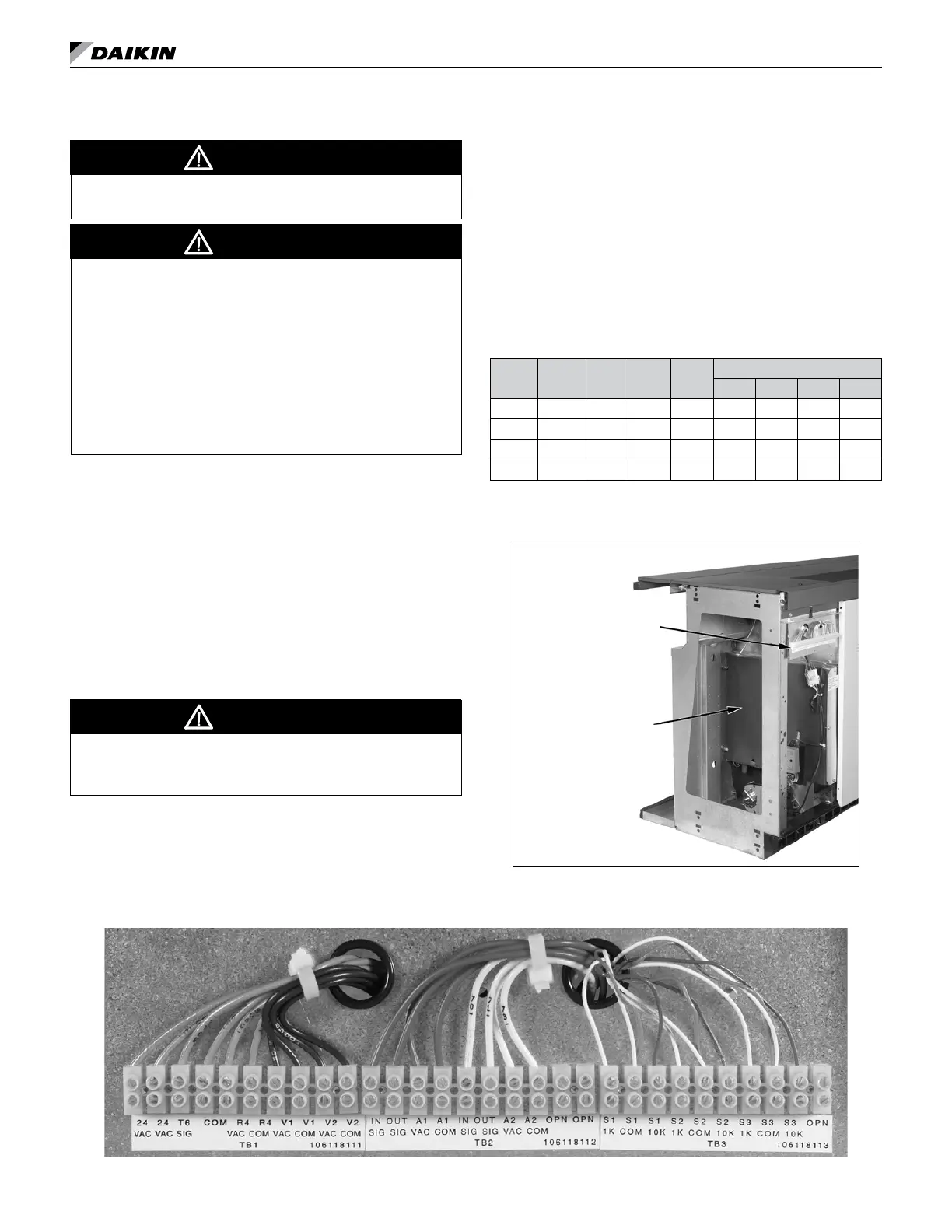

Figure 115: Unit Left End Compartment and Terminal Strip
Terminal Strip
Left End Compartment
for Mounting Controls
by Others
Figure 116: Terminal Strip
