SiBE041102_A Indoor Unit
Removal Procedure 109
3

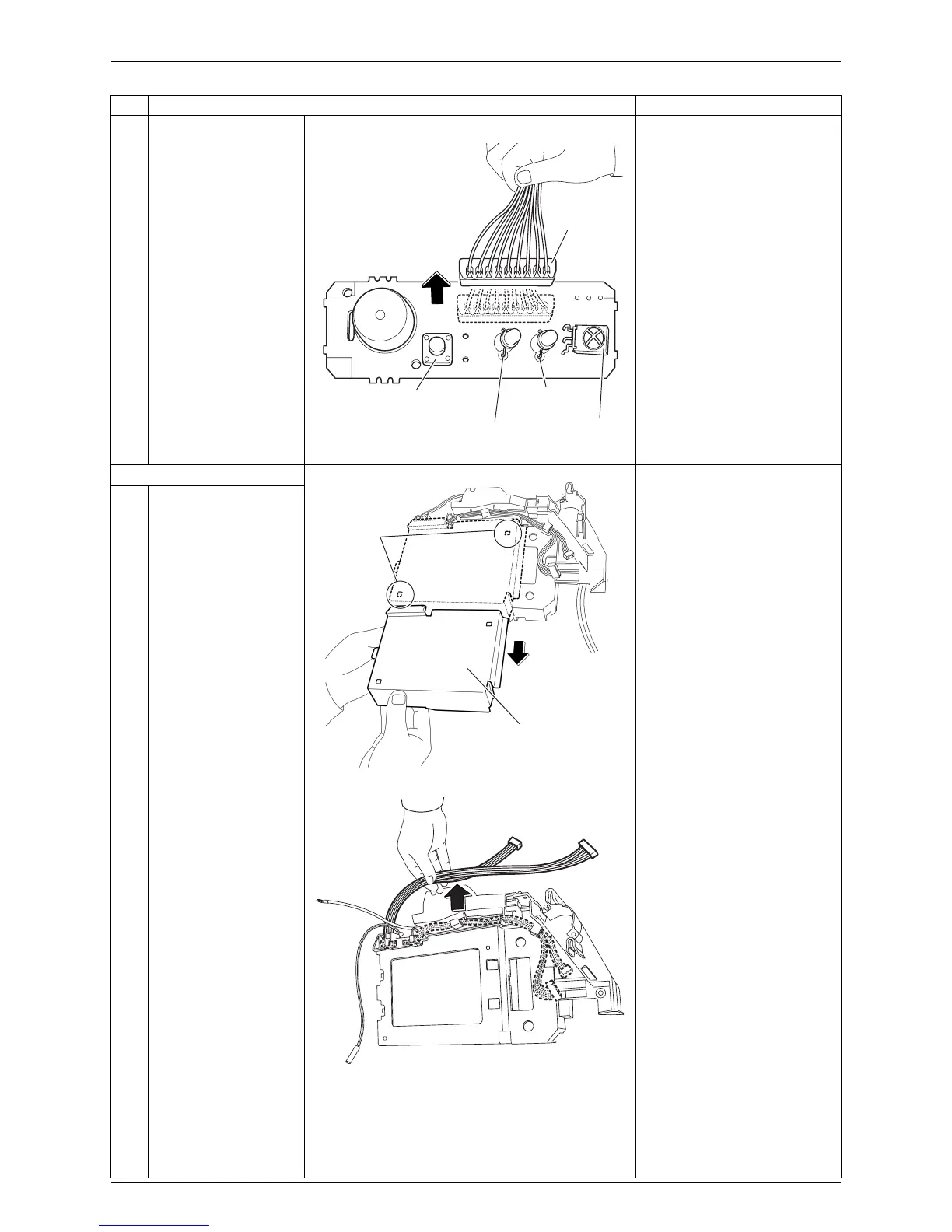

Disconnect the
connector [S27] from
the display PCB.
4
The figure shows the
component parts of the
display PCB.
[S27]: for control PCB
4. Remove the control PCB.
1
Lift the shield plate (1)
and unfasten the 2
hooks.
2
Slide the shield plate
(1) and remove it.
3
Release the harnesses
from the hooks.
Step Procedure Points
(R14604)
[S27]
TIMER lamp
Signal receiver
Operation lamp
ON/OFF button
(Forced cooling operation
ON/OFF button)
(R12061)
Hook
Shield plate (1)
(R12062)
