Daikin FTXN35KEV1B Service Manual

Indoor Unit SiBE041102_A

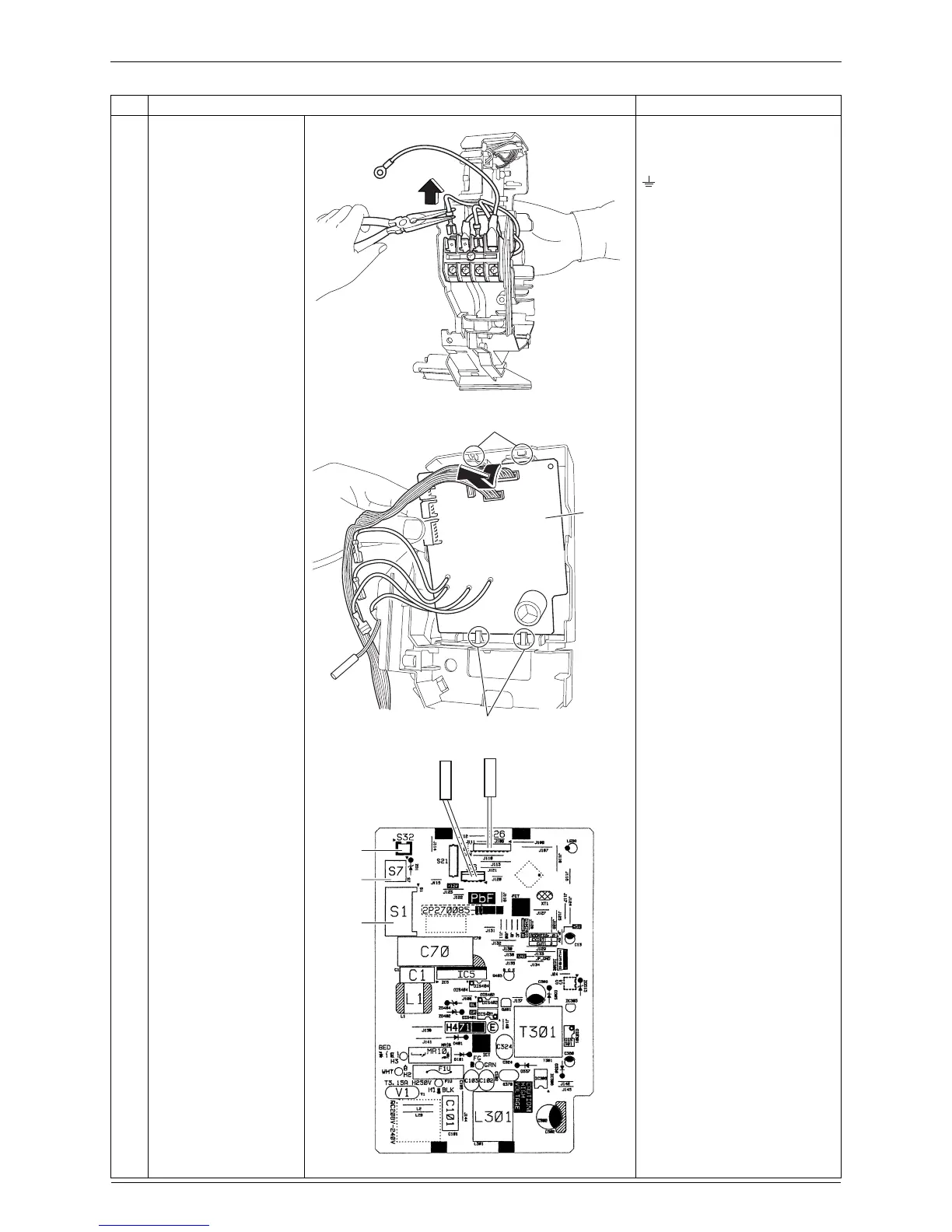

110 Removal Procedure
4
Disconnect the
terminals from the
terminal board with
pliers.
1 : black, upper
2 : white, lower
3 : red, upper
: green without sleeve
(upper)
green with sleeve (lower)
5
Release the 4 hooks.
Lift up the upper part of
the control PCB and
remove it.
6
The figure shows the
control PCB.

Refer to page 7 for detail.
[S1] [S7]: fan motor
[S6]: swing motor
[S26]: display PCB
[S32]: indoor heat exchanger
thermistor
Step Procedure Points
(R14609)
(R14610)
Control
PCB
Hook
Hook
(R14605)
S1
S7
S32
S6
S26
