SiBE041102_A Indoor Unit
Removal Procedure 115

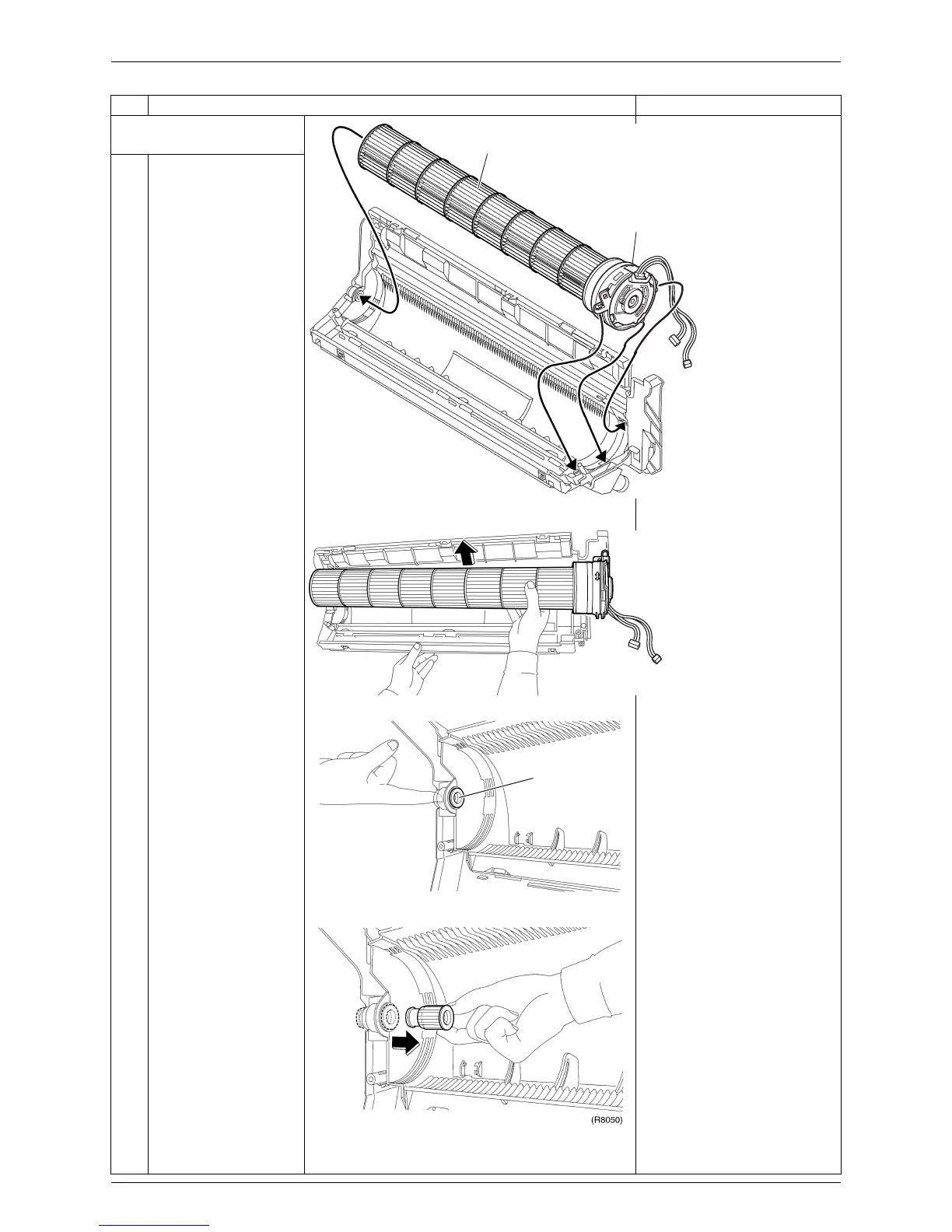

2. Remove the fan rotor and
the fan motor.
1
The fan motor has 3
projections.
The fan rotor has a
rotating shaft on the left
side.
2
Remove the fan rotor.
3
Press the bearing from
outside.
4
Remove the bearing.
Step Procedure Points
Fan rotor
Fan motor
(R14541)
(R14542)
Bearing
(R8049)
