Outline Si-95
2 General Information Inverter K Series
1. Outline
1.1 System Outline
■
Allows individual control of different types of indoor units with varying capacities totaling 50 to 130% of
the outdoor unit capacity.
∗
When total indoor capacity exceeds 100%, indoor unit operating capacity may decrease slightly if all
indoor units are operated at the same time.
■
Indoor units ranging from the smallest 20 type (0.8 HP).
■
Flexible refrigerant piping: equivalent length of 125 m, actual length of 100 m, outdoor unit height
difference of 50 m, and height difference of 15 m between indoor units.
∗
Outside temperature of 35˚C for operation mode (A), 0˚C for operation mode (D), and typical seasonal
outside temperatures for others.
No. 1 No. 2 No. 3 No. 4
BS unit
Outdoor unit
RSEYP10K
(10HP)
Indoor unit
(A) All units in cooling operation
(D) All units in heating operation
(B) Most units in cooling operation. and a few units in heating operation
(C) Most units in heating operation, and a few units in cooling operation
CoolingCooling
Cooling
Cooling
Cooling
Cooling
Cooling
Cooling
Heating
Heating
HeatingHeatingHeatingHeating
HeatingHeating

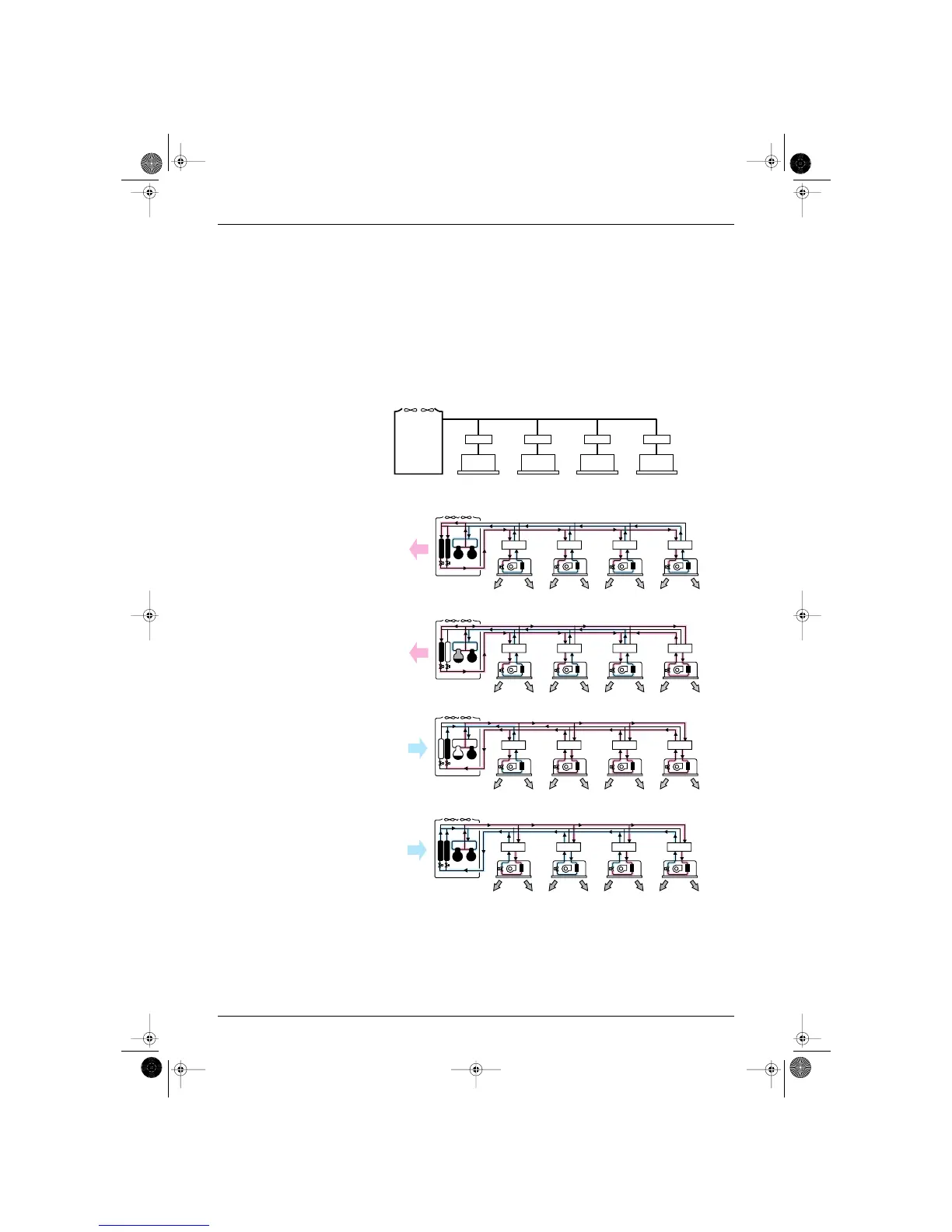

System outline & operation mode
2.5 HP or
equivalent
2.5 HP or
equivalent
2.5 HP or
equivalent
2.5 HP or
equivalent
Heat radiation
Heat radiation
Heat absorption
Heat absorption
