Danfoss AK-CC55 Multi Coil User Manual

Danfoss 80G8330
y
x
A
B
C
x
y
A
B
C
Time
Temperature
Humidity max temp. dierence
Humidity min temp. dierence
Humidity control enabled
Danfoss 80G8221
y
x
A
SP
B
100%
x
y
A
SP
B
Time
Humidity
Humidity dierence
Setpoint
Humidier
The controller measures the humidity via a 0 – 10 V signal from a humidity sensor and by means of a DO relay it can
activate a humidier or a de-humidier.
High and low humidity alarm limits can be set to generate a humidity alarm.
Humidity control is disabled when main switch is OFF, at manual control, at case shutdown, at forced closing mode,
at door open, if cooling is stopped, at humidity sensor error and at case cleaning.
It is possible to dene whether humidity control is enabled during defrost or not.

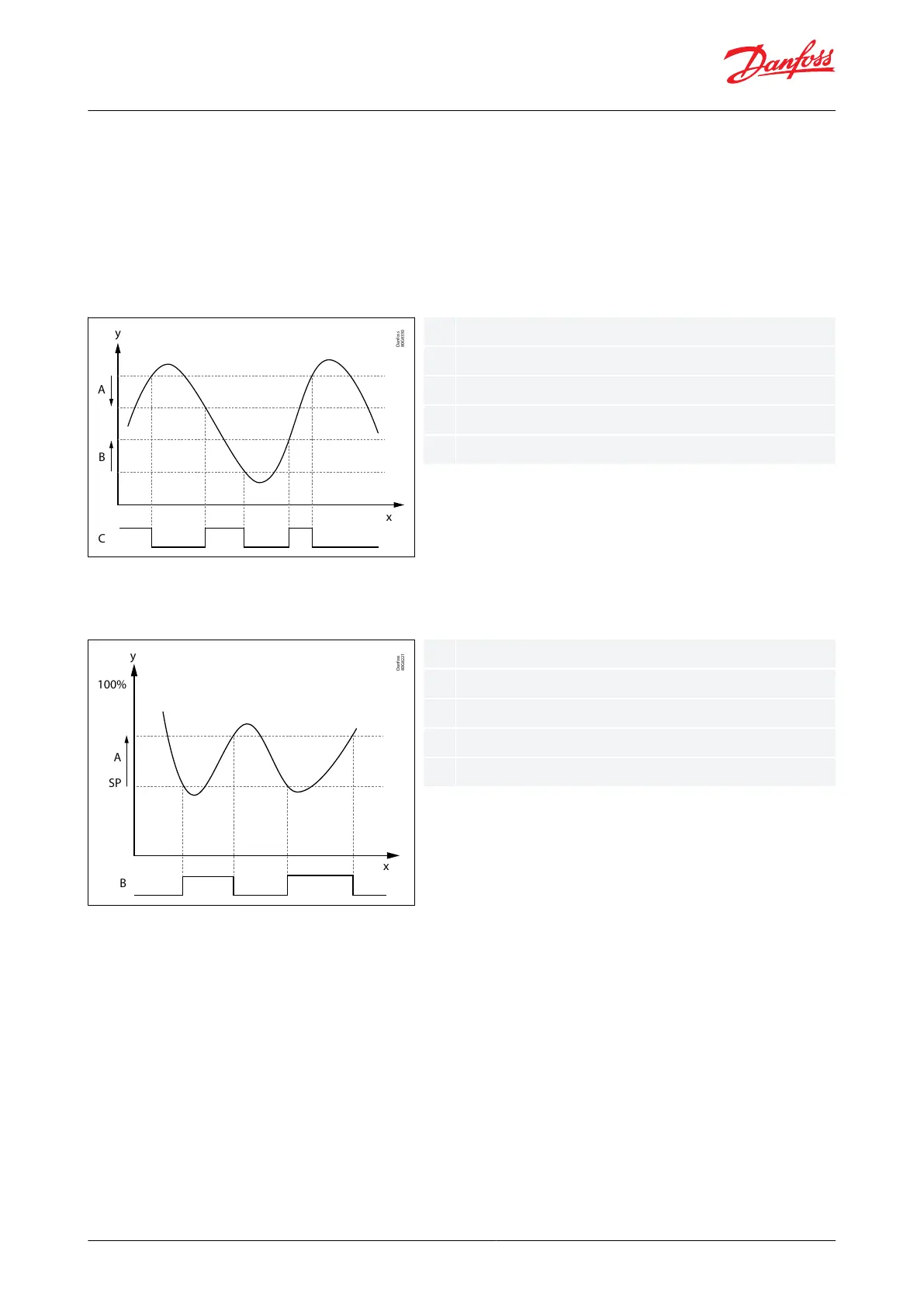

Figure 20: Humidity control
A Max and Min temperature range can be dened wherein the humidity control is enabled. Upper and lower
dierential is xed at 1K.
Figure 21: Humidier control
If the humidity gets below the SP, then humidication is started via a DO signal to a humidier.
If the humidity increases to SP + humidity dierential, then humidication is stopped.
AK-CC55 Multi Coil
© Danfoss | Climate Solutions | 2022.08 BC365022028193en-000201 | 18
