Danfoss AK-CC55 Multi Coil User Manual

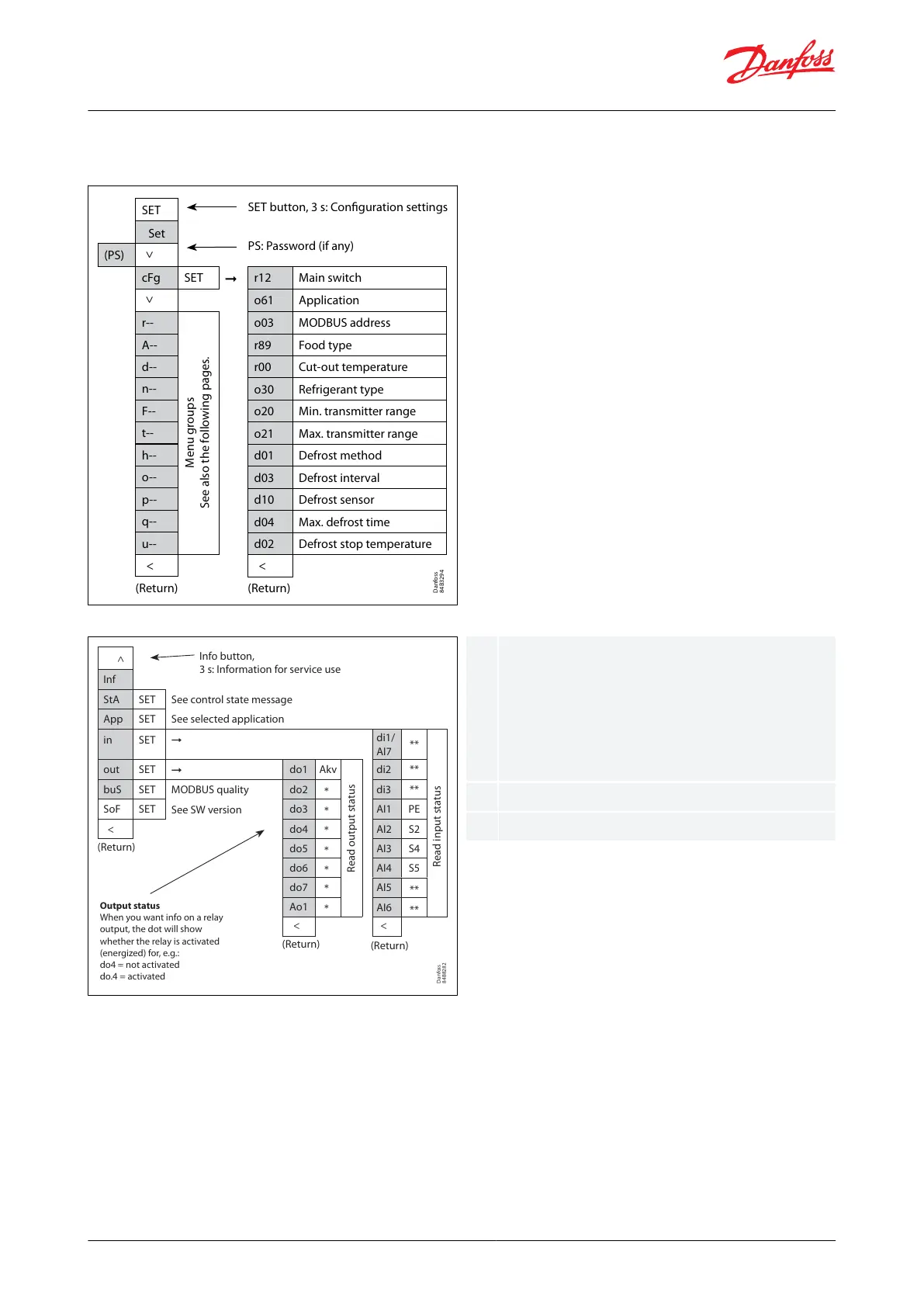

Figure 43: SET button parameter list
SET
Set
(PS)
<
cFg SET r12
<
o61
r-- o03
A-- r89
r00
o30
o20
o21
d01
d03
d10
d04
d02
<
d--
n--
F--
t--
h--
o--
p--
q--
u--
<
Danfoss 84B3294
Main switch
Application
MODBUS address
Food type
Cut-out temperature
Refrigerant type
Min. transmitter range
Max. transmitter range
Defrost method
Defrost interval
Defrost sensor
Max. defrost time
Defrost stop temperature
(Return)
Menu groups
See also the following pages.
(Return)
SET button, 3 s: Configuration settings
PS: Password (if any)
Danfoss 84B8282
<
Inf
StA SET
App SET
in SET
di1/
AI7
**
out SET
do1 Akv di2 **
buS SET do2
*
di3 **
SoF SET do3
*
AI1 PE
< do4
*
AI2 S2
do5
*
AI3 S4
do6
*
do7
*
AI4 S5
AI5
Ao1
*
AI6
**
**
<<
Info button,
3 s: Information for service use
See control state message
Read output status
Read input status
See selected application
(Return)
(Return)
(Return)
Output status
When you want info on a relay
output, the dot will show
whether the relay is activated
(energized) for, e.g.:
do4 = not activated
do.4 = activated
MODBUS quality
See SW version
*
**
StA
The output's function (determined at
conguration). The DOs and AOs can also be
forced controlled from this menu, when r12 Main
switch has been set in position "service". Forced
control of a function can also be performed in
codes q11 to q27.
The input's function (determined at conguration).
See control state message in Table 46
1.
2.
3.
4.
5.
6.
Parameter groups when operating via display
Figure 44: Info button parameter list
Get a good start
With the following procedure you can start regulation very quickly:
Open parameter r12 and stop the regulation (in a new and not previously set unit, r12 will already be set to 0
which means stopped regulation)
Select application based on the wiring diagrams (see Application set-ups and IO connections)
Open parameter o61 and set the application number
For network. Set the address in o03
Then select a set of presets from the "Food type" help table
Open parameter r89 and set the number for the array of presettings. The few selected settings will now be
transferred to the menu
© Danfoss | Climate Solutions | 2022.08 BC365022028193en-000201 | 31
