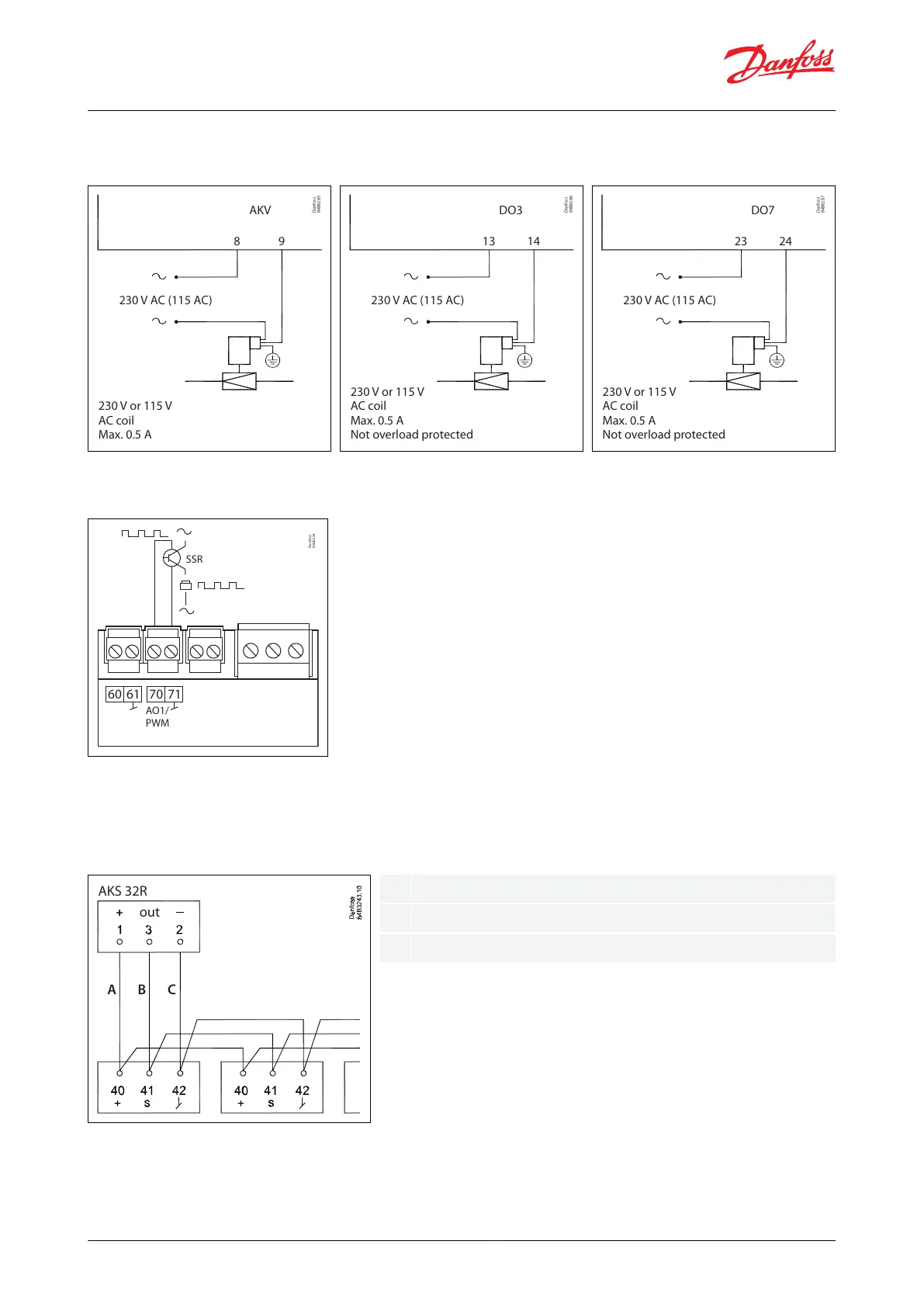

Figure 35: AKV A info
230 V AC (115 AC)
8 9
AKV
Danfoss 84B8285
230 V or 115 V
AC coil
Max. 0.5 A
Figure 36: AKV B info
230 V AC (115 AC)
13 14
DO3
Danfoss 84B8286
230 V or 115 V
AC coil
Max. 0.5 A
Not overload protected
Figure 37: AKV C info
230 V AC (115 AC)
23 24
Danfoss 84B8287
DO7
230 V or 115 V
AC coil
Max. 0.5 A
Not overload protected
A
AKS 32R
B
out
C
A
B
C
Black
Brown
Blue
AKV info
External solid state relay for rail heat
Figure 38: External solid state relay for rail heat
AO1/
PWM
60 61 70 71
SSR
Danfoss 80G8234
0 / 10 V Pulse Width Modulated (PWM)
Max. 15 mA.
AKS 32R info
Figure 39: AKS 32R info
 NOTE:
A ratiometric pressure transmitter with a 5 V, 10 – 90% voltage output signal must be used.
