8. Screw the outdoor unit onto the stand. Use 4 x M6x20 screws. It
may be necessary to push and pull the stand slightly in order to
get the screw holes to align.
⚠
NOTE! When filling the brine system the outdoor unit must
be bled using the bleed screws on the connecting pipes
inside the side covers. We recommend that you return to this
instruction after the brine system has been filled.
9. Reinstall the side panels.
Assembling the front cover
10. Hook the lower edge of the front cover onto at least one of the
three screws in the bottom edge of the stand.
11. Secure the upper edge of the front panel temporarily in the
centre hole. Use 1 x M6x15 torx TX25.
12. Align all the three screws in the lower edge.
13. Screw the three screws in the lower edge fully. Use a torx TX25
screwdriver, or equivalent.
14. Secure the upper edge of the front cover.
Use only the three screws screwed into the outdoor unit, see figure
below. Use only 3 x M6x15 torx TX25.

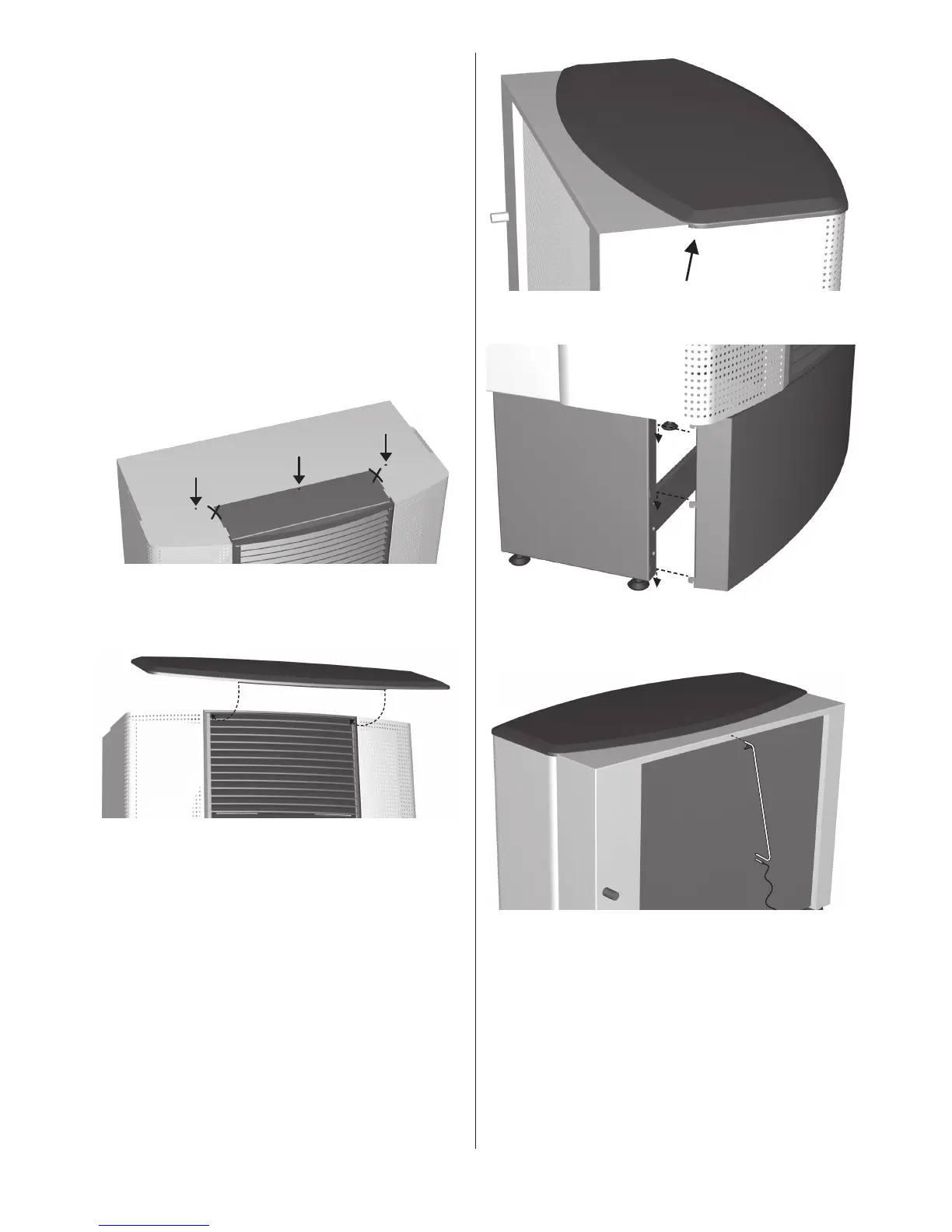

Secure the cover.Figure 36:
Assembling the cover and cover plate
15. Hook the cover at the front edge on the front cover.
Hook the front cover into place.Figure 37:
16. Secure the cover using a screw on each side. Use 2 x cross head
screws.
If the cover does not align with the side cover plates it may be nec-
essary to drill new Ø 3 mm holes:
• Markforthenewholes
• Liftoffthecover
• Drilltheholes
• Installandscrewthecoverintoplace
Screw the front cover into place.Figure 38:
17. Hook the cover onto the stand.
Hook the cover into place.Figure 39:
Assembling the defrost sensor
Hook the defroster sensor into place.Figure 40:
18. Slide the mounting for the defroster sensor into the hole on
the reverse of the outdoor unit until it hooks into place on the
edge.
19. Secure the defroster sensor at the bottom of the mounting
using a cable tie.
The outdoor unit is now mounted and can be adjusted on the site
where it should be set up.
