Danfoss FC 102

[3]
[4]
[5]
[6]
[2]
[1]
130BB664.10

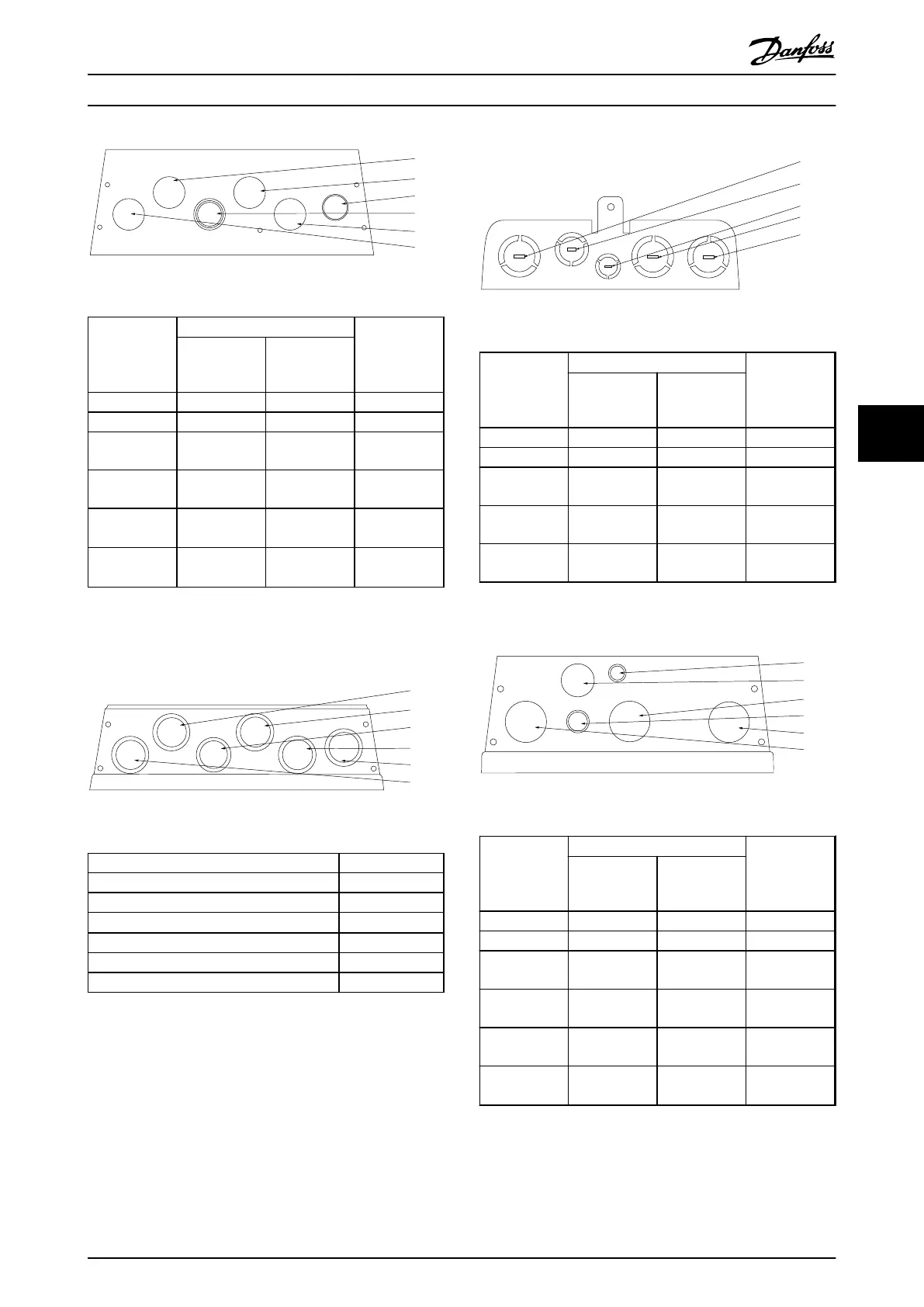

Illustration 6.25 A5 - IP55
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 3/4 28.4 M25
2) Motor 3/4 28.4 M25
3) Brake/Load
Sharing
3/4 28.4 M25
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
2)
3/4 28.4 M25
6) Control
Cable
2)
3/4 28.4 M25
Table 6.7 Legend to Illustration 6.25
1)
Tolerance ± 0.2 mm
2)
Knock-out hole
[4]
[5]
[3]
[6]
[2]
[1]
130BB666.10
Illustration 6.26 A5- IP55 Threaded Gland Holes
Hole Number and recommended use Nearest metric
1) Mains M25
2) Motor M25
3) Brake/Load S
28.4 mm
1)
4) Control Cable M25
5) Control Cable M25
6) Control Cable M25
Table 6.8 Legend to Illustration 6.26
1)
Knock-out hole
[1]
[4]
[5]
[3]
[2]
130BB659.10
Illustration 6.27 B1 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/Load
Sharing
1 34.7 M32
4) Control
Cable
1 34.7 M32
5) Control
Cable
1/2 22.5 M20
Table 6.9 Legend to Illustration 6.27
1)
Tolerance
± 0.2 mm
[5]
[4]
[3]
[6]
[2]
[1]
130BB667.10
Illustration 6.28 B1 - IP55
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/Load
Sharing
1 34.7 M32
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
1/2 22.5 M20
5) Control
Cable
2)
1/2 22.5 M20
Table 6.10 Legend to Illustration 6.28
1)
Tolerance
± 0.2 mm
2)
Knock-out hole
Electrical Installation
Design Guide
MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved. 91
6 6
