Air Handling seq.- user manual
DKRCC.PS.RI.A1.02 / 520H4358 - Air Handling Seq. user manual - V 2.2
Produced by Danfoss Electronics spa Graphic Department, 10-2009
35
6.3| Connection of setpoint sequences
To facilitate interconnections among sequences, it is possible to automatically make one sequence start when the
preceding one is at 100% and to make it use automatically the same control probe. The probe used is the one used
by the preceding sequence.
When selecting the setpoint for a sequence (D02, H12, H22, C12), set it to the reference of the preceding sequence,
using the following values:
FRH: connection to the Freeheat Sequence. Possible for all the sequences.
FRC: connection to the Freecool Sequence. Possible only for Cool Sequence 1.
HS1: connection to the Heat Sequence 1. Possible only for Heat Sequence 2
In the next gure you can see the result of the following settings:
H12=FRH: setpoint of the Heat Sequence 1 connected to Freeheat Sequence
H22=HS1: setpoint of the Heat Sequence 2 connected to Heat Sequence 1
C12=FRC: setpoint of the Cool Sequence 1 connected to Freecool Sequence
The control probe is forced for all the sequences to the one used by dampers.

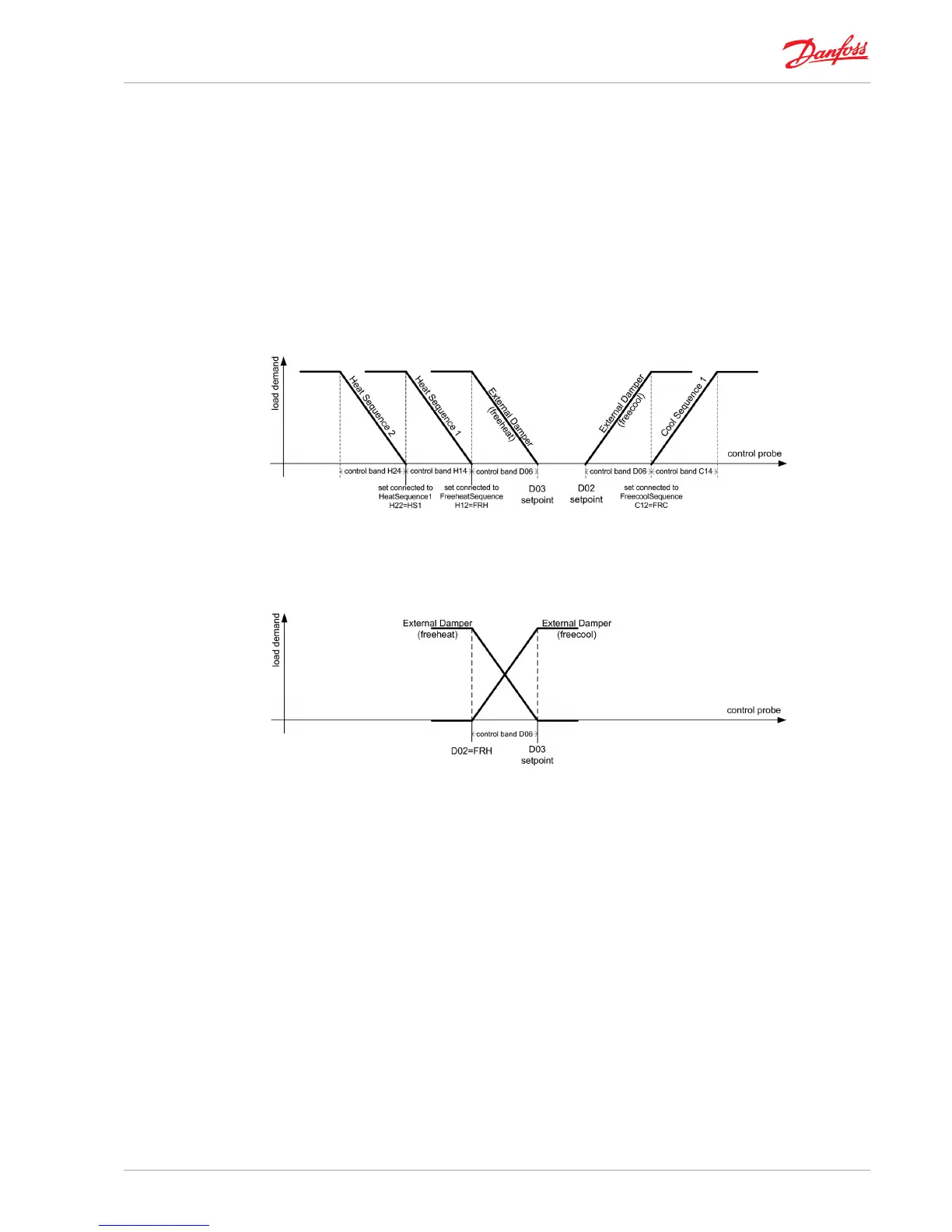

Fig 23_ [Temperature control sequences - Connection of setpoint sequences]
In the next gure you can see the result of setting D02=FRH: setpoint of Freecool Sequence connected to the
Freeheat Sequence.
Fig 24_ [Temperature control sequences - Setpoint of Freecool sequence connected to the freeheat Sequence]
