Danfoss MCX08M User Manual

Danfoss Electronics spa
Air Handling seq.- user manual
DKRCC.PS.RI.A1.02 / 520H4358 - Air Handling Seq. user manual - V 2.2
Produced by Danfoss Electronics spa Graphic Department, 10-2009
39
8| Examples
8.1| Example 1
Control of the saturation temperature with preheating coil and dampers.
Return temperature control with cooling ad reheating coil.
Dampers control comparing return and outside temperature

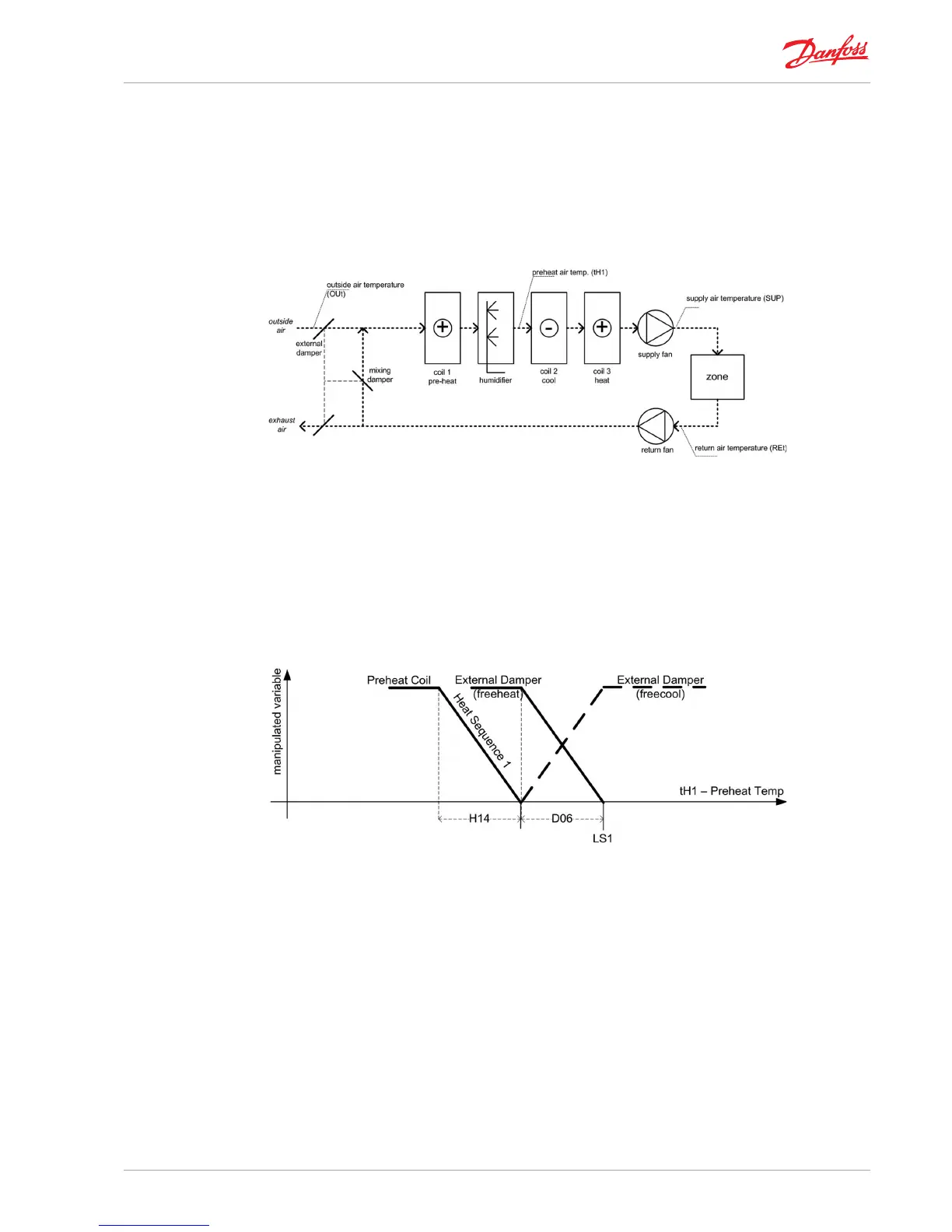

Fig 28_ [Examples - Example 1]
Dampers
D01 – control probe = tH1 (preheat probe)
D02 – freecool setpoint selection = FRH (connected to the freeheat sequence).
D03 – freeheat setpoint selection = LS1 (saturation temperature setpoint)
D07 – changeover probe 1 = RET (return probe)
D08 – changeover probe 2 = OUT (outside probe)
Preheating coil
b10 – coil 1 function = HS1 (heat sequence 1)
H11 – control probe = tH1 (preheat probe)
H12 – setpoint selection = FRH (connected to the freeheat sequence)
Fig 29_ [Examples - Preheating coil]
