Danfoss MCX08M User Manual

DKRCC.PS.RI.A1.02 / 520H4358 - Air Handling Seq. user manual - V 2.2
Produced by Danfoss Electronics spa Graphic Department, 10-2009
42
Danfoss Electronics spa
Air Handling seq. - user manual
9| Frost protection
To enable the frost protection function you have rst to dene with FP1 the probe used for controlling the
temperature.
FROST PROTECTION
FRO Frost Min Max Default U.M. Text value
FPP Frost Protection
FP1 Probe selection 1 3 OUt ;NO;OUT;tC2
FP2 Alarm setpoint 5,0 90,0 2,0 °C
FP3 Proportional band 0,1 20,0 1,0 K
Tab 29_ [Frost protection - Frost protection]
When the selected probe temperature is close to the alarm setpoint FP2, the heat actuators are activated
proportionally as described in the following gure.

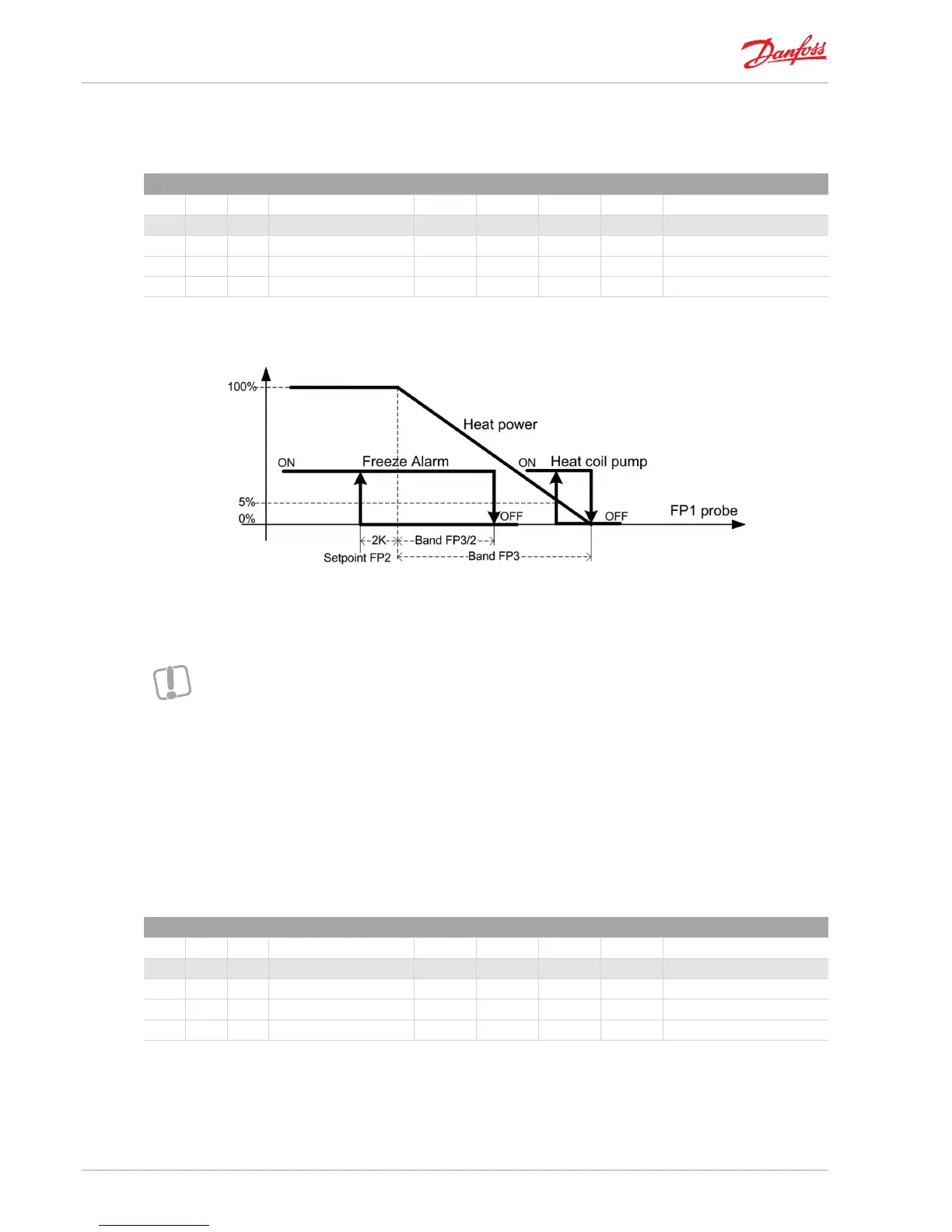

Fig 34_ [Frost protection - Frost Protection]
When the temperature goes below the alarm setpoint FP2, then the “A07 - Freeze Alarm” is generated and heat
power is set to 100%, cool power to 0%, the external damper goes to its minimum position and the heat recovery
is OFF.
Note
* The “A07 - Freeze Alarm” is
generated also by the thermostat
(digital input) “AAI - Freeze Alarm”.
(See “14.3] Alarms table”).
* If the “A07 - Freeze Alarm” is set
by Congurator to be active even
when the unit is OFF, then all the
actions on the heating actuators
described above are active even
when the unit is OFF
9.1| Frost Prevention in OFF
FROST PREVENTION IN OFF
FRO Frost Min Max Default U.M. Text value
FPR Frost Prevention
FP4 Setpoint OFF 5,0 90,0 2,0 °C
FP5 Proportional band 0,1 20,0 1,0 K
FP6 Integral time 0 9999 0
Tab 30_ [Frost protection - Frost prevention in OFF]
When the unit is OFF, the controllers works to maintain the “tC2 – Antifreeze” probe, if present, to the value set with
the setpoint OFF FP4 with PI logic.
This function acts on both the heat sequences but the heat recovery and the external damper remain closed.
