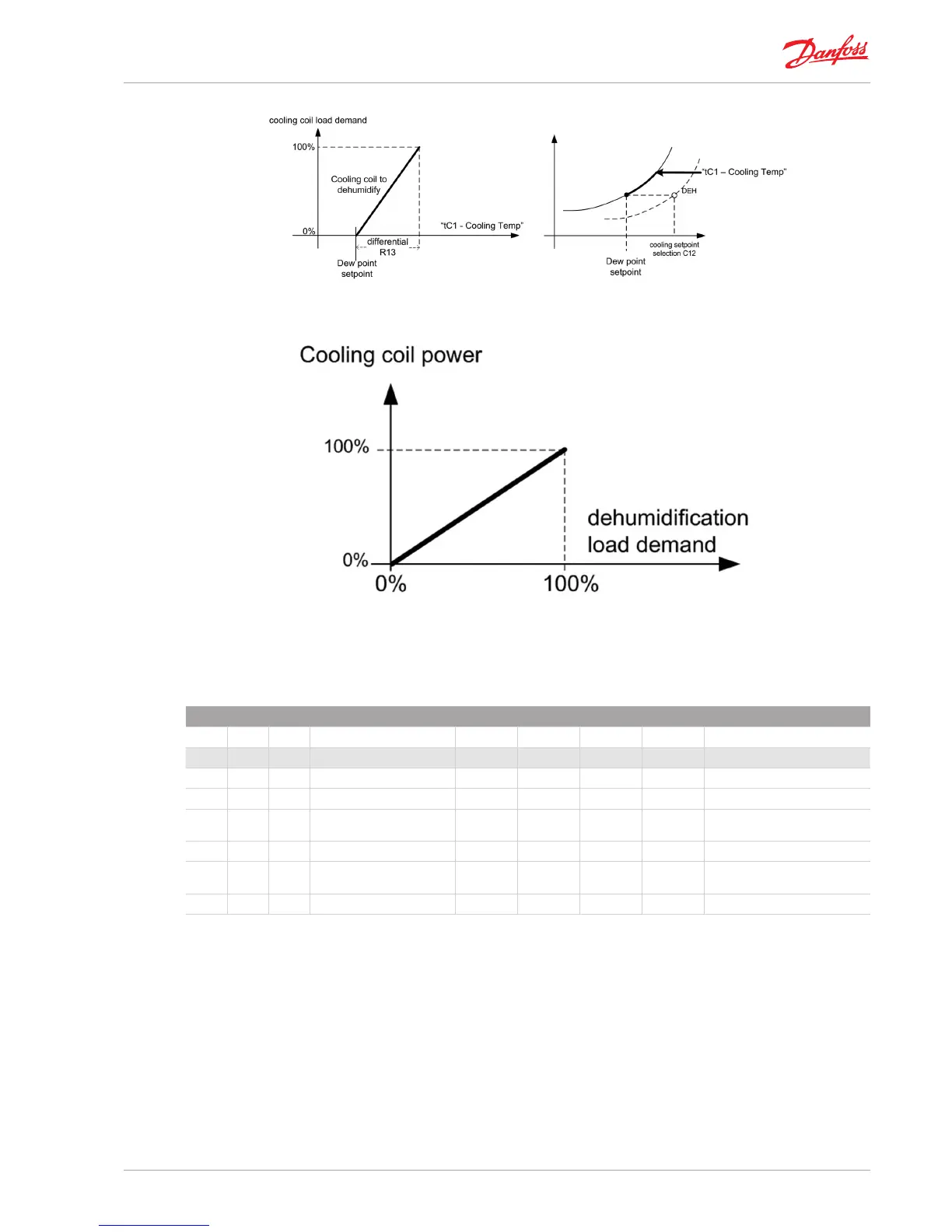

Fig 44_ [Humidity control - Cooling coil in dehumidication 3]
If U09 = PROP, then cooling coil are controlled proportionally to the dehumidication load demand.
Fig 45_ [Humidity control - Cooling coil in dehumidication 4]
11.4| Controlling the supply humidity limits
CONTROLLING THE SUPPLY HUMIDITY LIMITS
SCT Supply Control Min Max Default U.M. Text value
SHL Humidity Limit
HL1 Supply humidity low limit 0 100,0 30,5 %
HL2 Supply humidity high limit 0 100,0 70,0 %
HL3 Supply humidity low limit
enable
1 2 YES ;NO;YES
HL4 Band 1 10,0 5,0 %
HL5 Supp. humidity high limit
enable
1 2 YES ;NO;YES
HL6 Band 1 10,0 5,0 %
Tab 37_ [Humidity control - Controlling the supply humidity limits]
