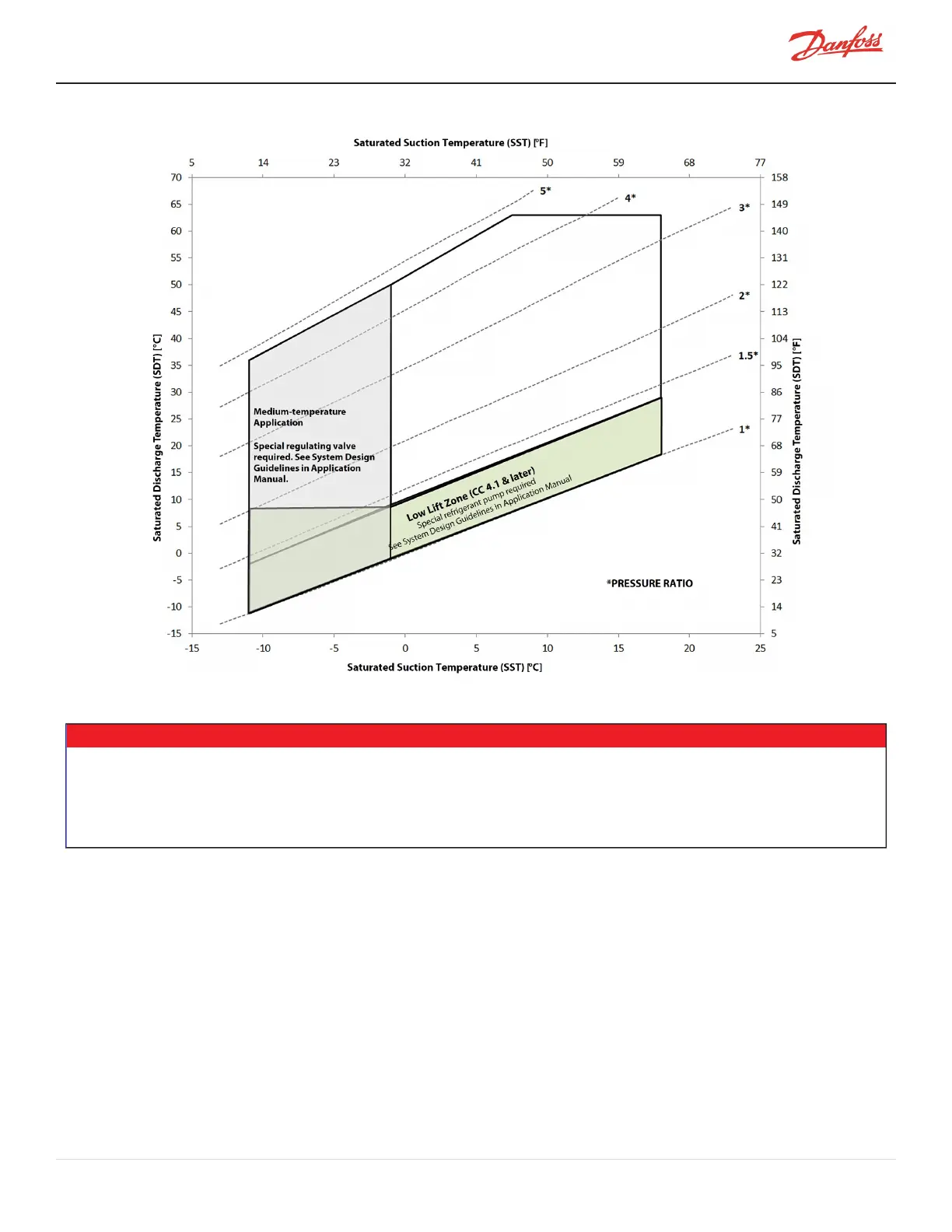

Figure 8-2 Operating Envelope
(1)
, Medium Temperature: TTS300 and TGS230
NOTE
The maximum SDT of the operating envelope represents the limit for compressors with maximum FLA settings.
The SDT for a compressor with a lower maximum current rating is lower than that shown and is related to the FLA rating of the particular
compressor. The lower limit is related to minimum pressure ratios required to effect proper motor and power electronics cooling with
standard refrigerant circuit components.
(1)
The actual obtainable capacity will be dependent on specific operating characteristics of each compressor model.
Refer to the current authorized compressor selection/rating software for more exact values and conditions.
M-AP-001-EN Rev. S-9/8/2021 Page 57 of 136
